Navigation Unit Inputs & Outputs for Connector C (8P)

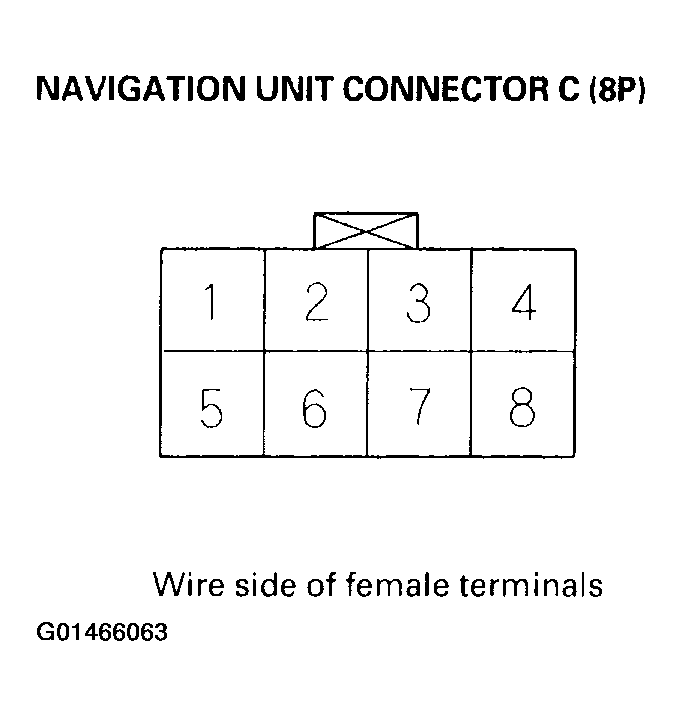

Fig 1: Identifying Navigation Unit Connector C (8P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

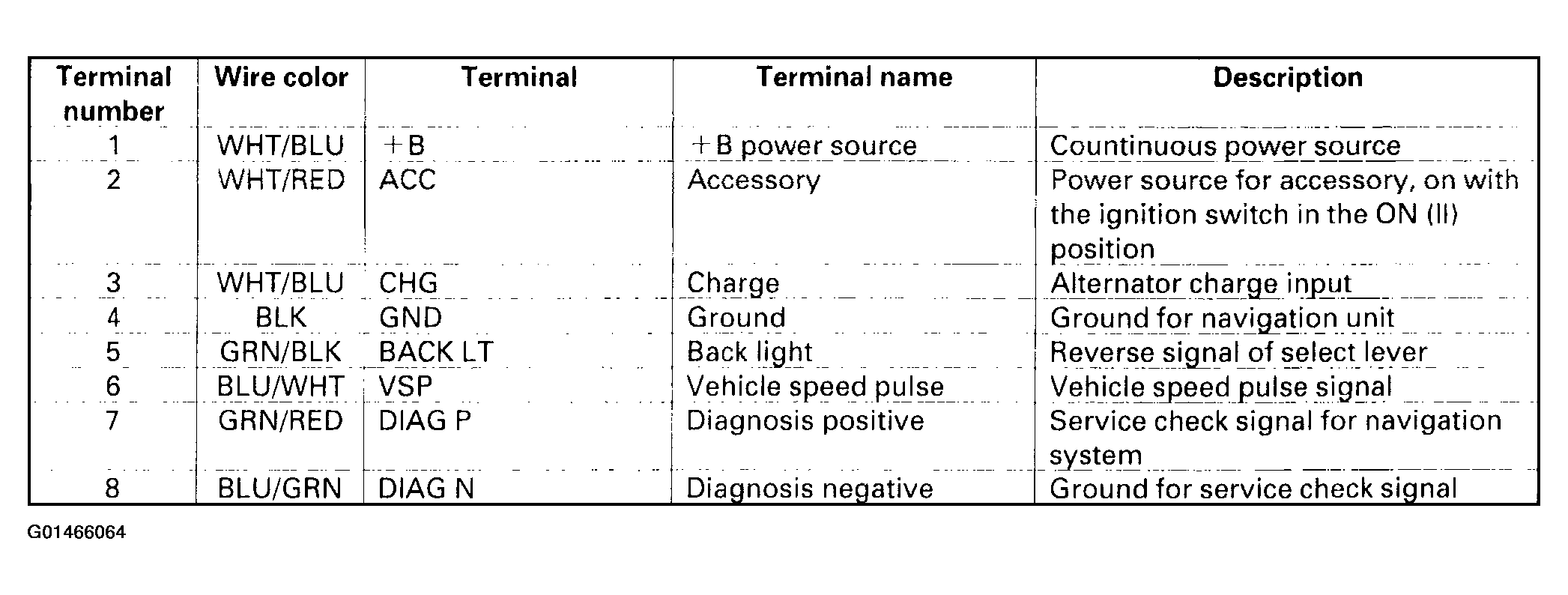

Fig 2: Navigation Unit Connector C (8P) Inputs & Outputs Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
