Navigation Unit Inputs & Outputs for Connector B (16P)

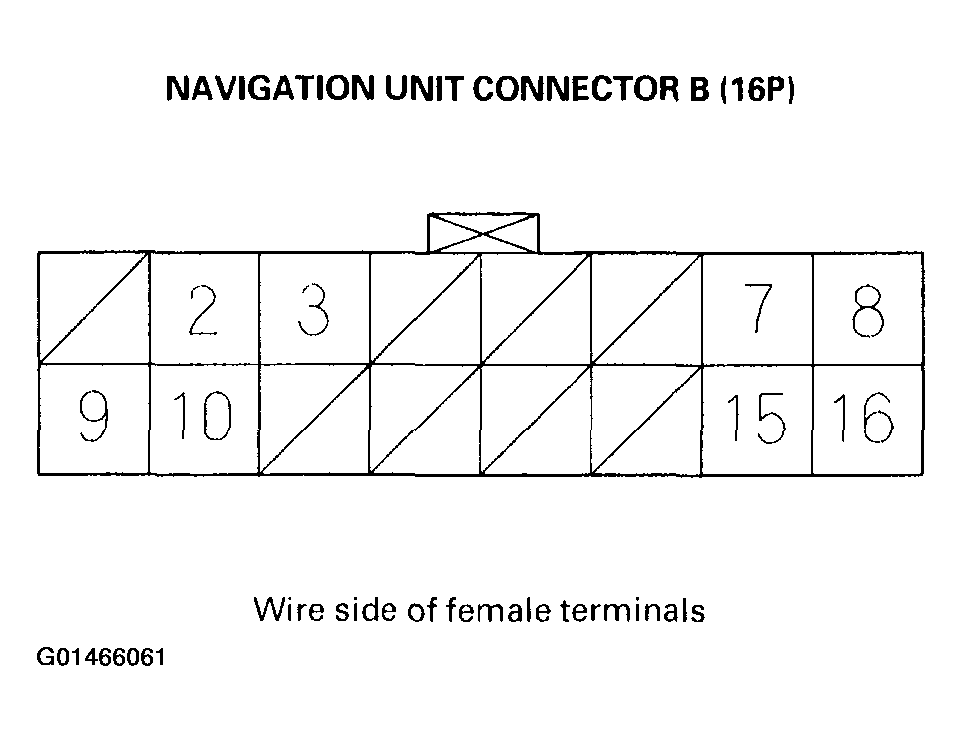

Fig 1: Identifying Navigation Unit Connector B (16P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

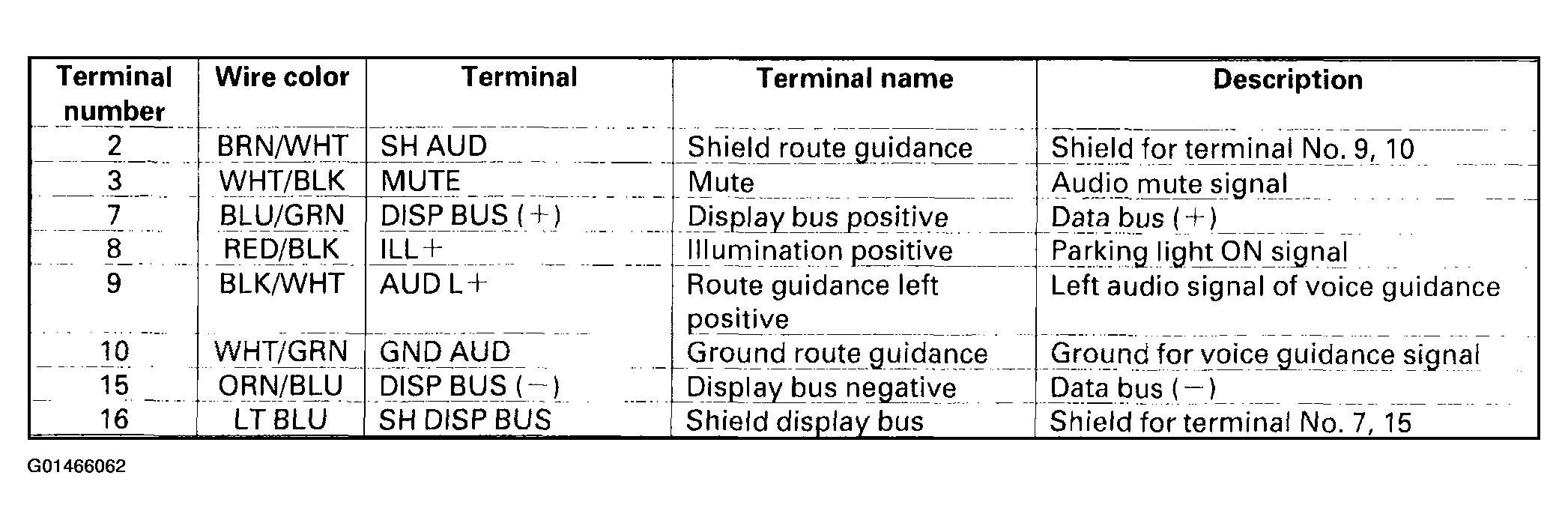

Fig 2: Navigation Unit Connector B (16P) Inputs & Outputs Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
