Navigation Unit Inputs & Outputs for Connector A (12P)

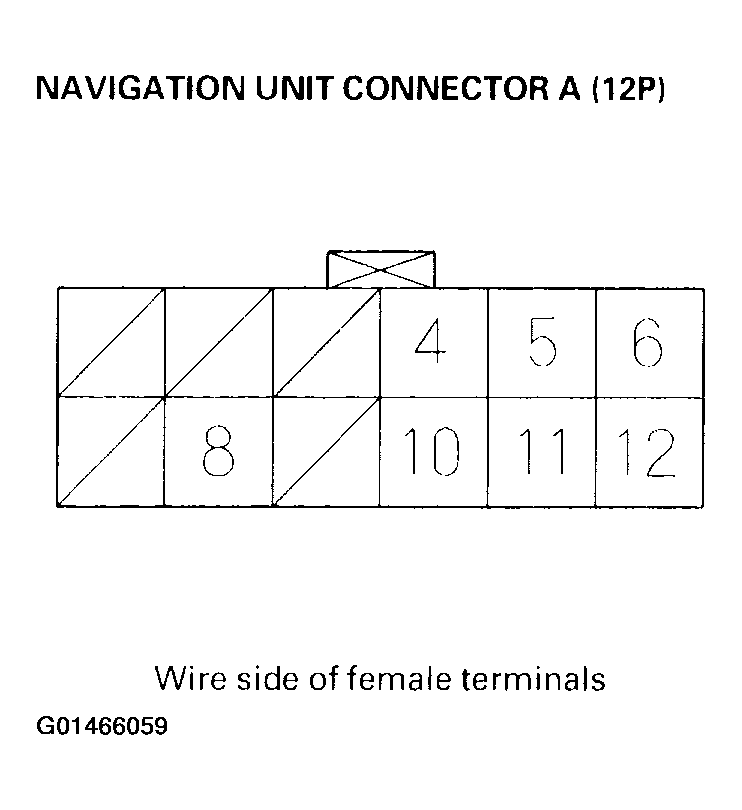

Fig 1: Identifying Navigation Unit Connector A (12P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Navigation Unit Connector A (12P) Inputs & Outputs Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
