Precision of GPS

The precision of the GPS varies according to the number of satellites from which electric waves are received and the control condition. The precision is indicated by the GPS icon shown on the upper left of the display.

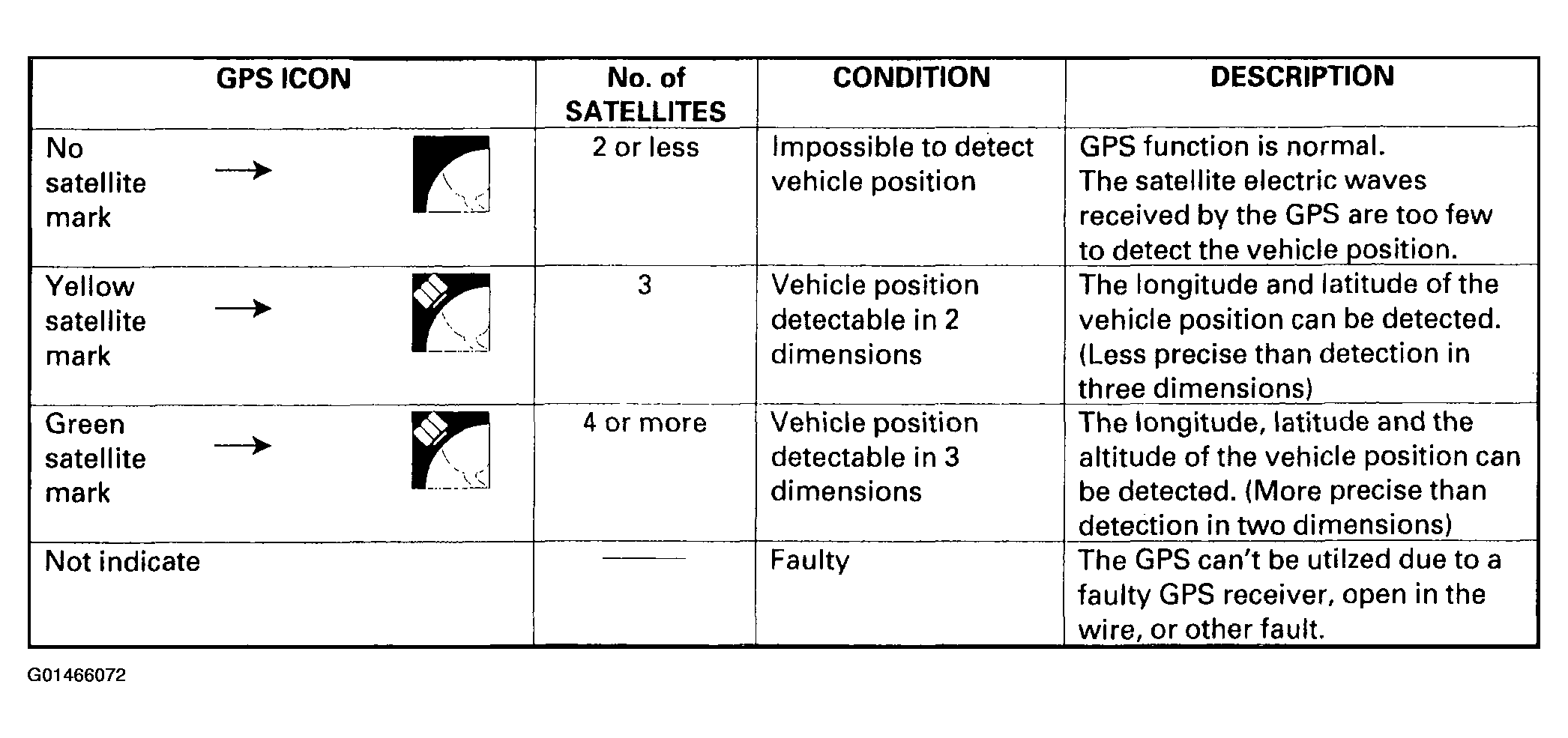

Fig 1: Identifying Precision Of GPS
G01466072Courtesy of AMERICAN HONDA MOTOR CO., INC.
