Display Unit Inputs & Outputs for Connector B (20P)
>>
Notes
Display Unit Inputs & Outputs for Connector B (20P): Notes

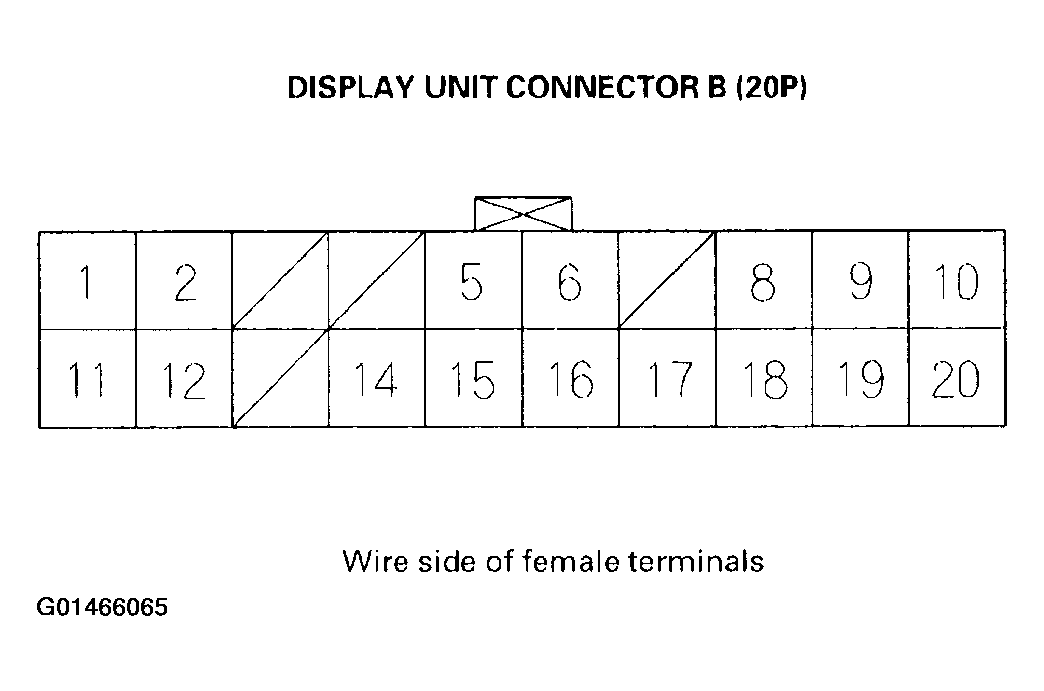

Fig 1: Identifying Display Unit Connector B (20P) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

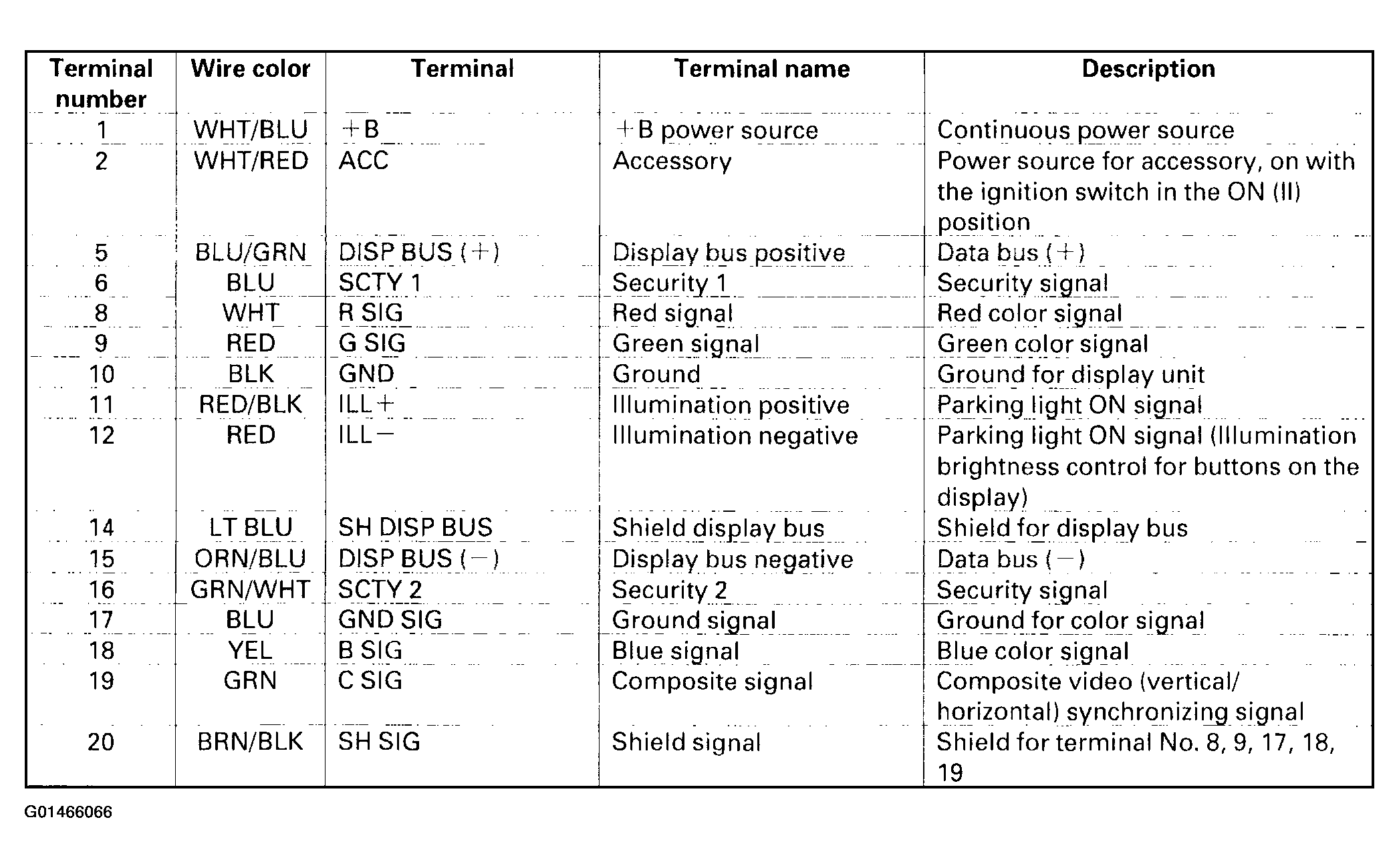

Fig 2: Display Unit Connector B (20P) Inputs & Outputs Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
