ATF Cooler Hose Replacement

  1. Connect the cooler hoses (A) to the lines (B) and the ATF cooler, and secure them with the clips (C).

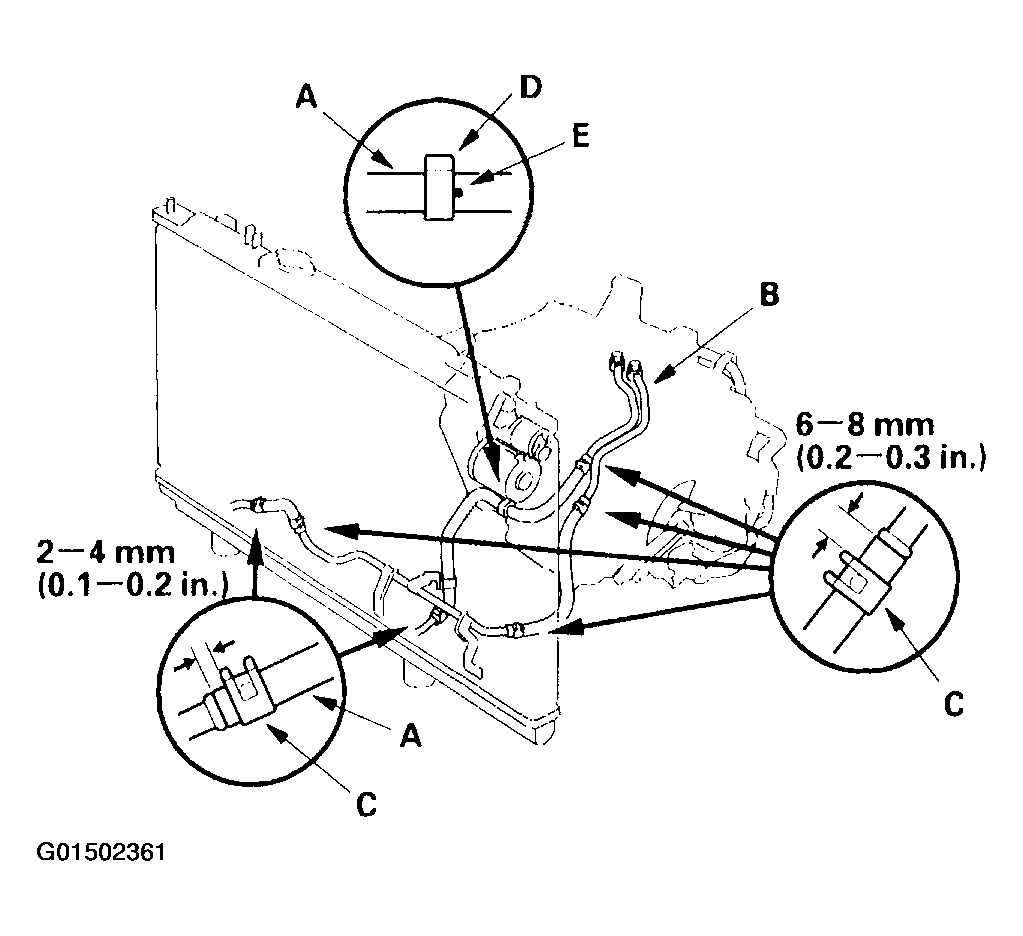

    Fig 1: Identifying Transmission Cooler Hoses & Lines
    G01502361Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Clamp the ATF cooler hose with the yellow mark (D) on the clamp (E).
