Sliding Door Junction Switch Connector, Left Connector End View

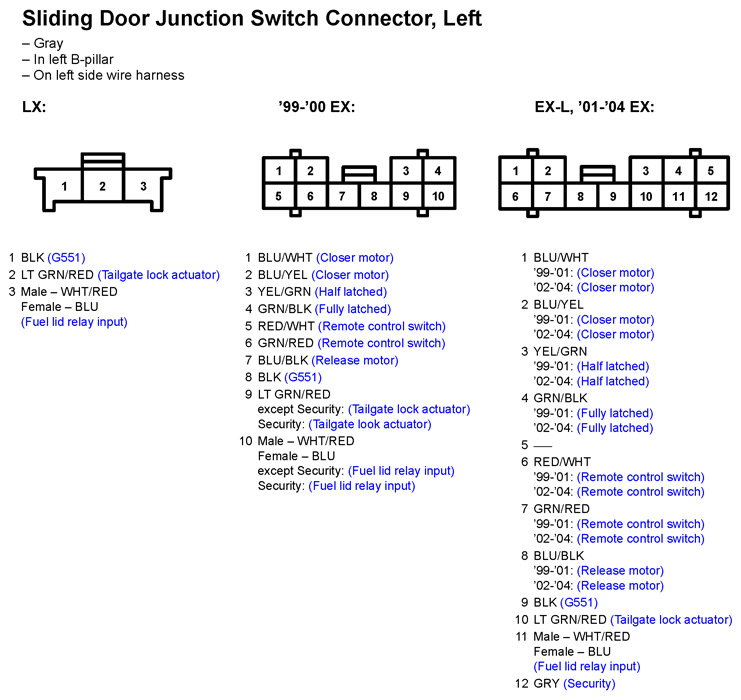

Fig 1: Sliding Door Junction Switch Connector, Left Connector End View

G11250843

Courtesy of AMERICAN HONDA MOTOR CO., INC.
