Under-hood Emission Control Label
Under-hood Emission Control Label

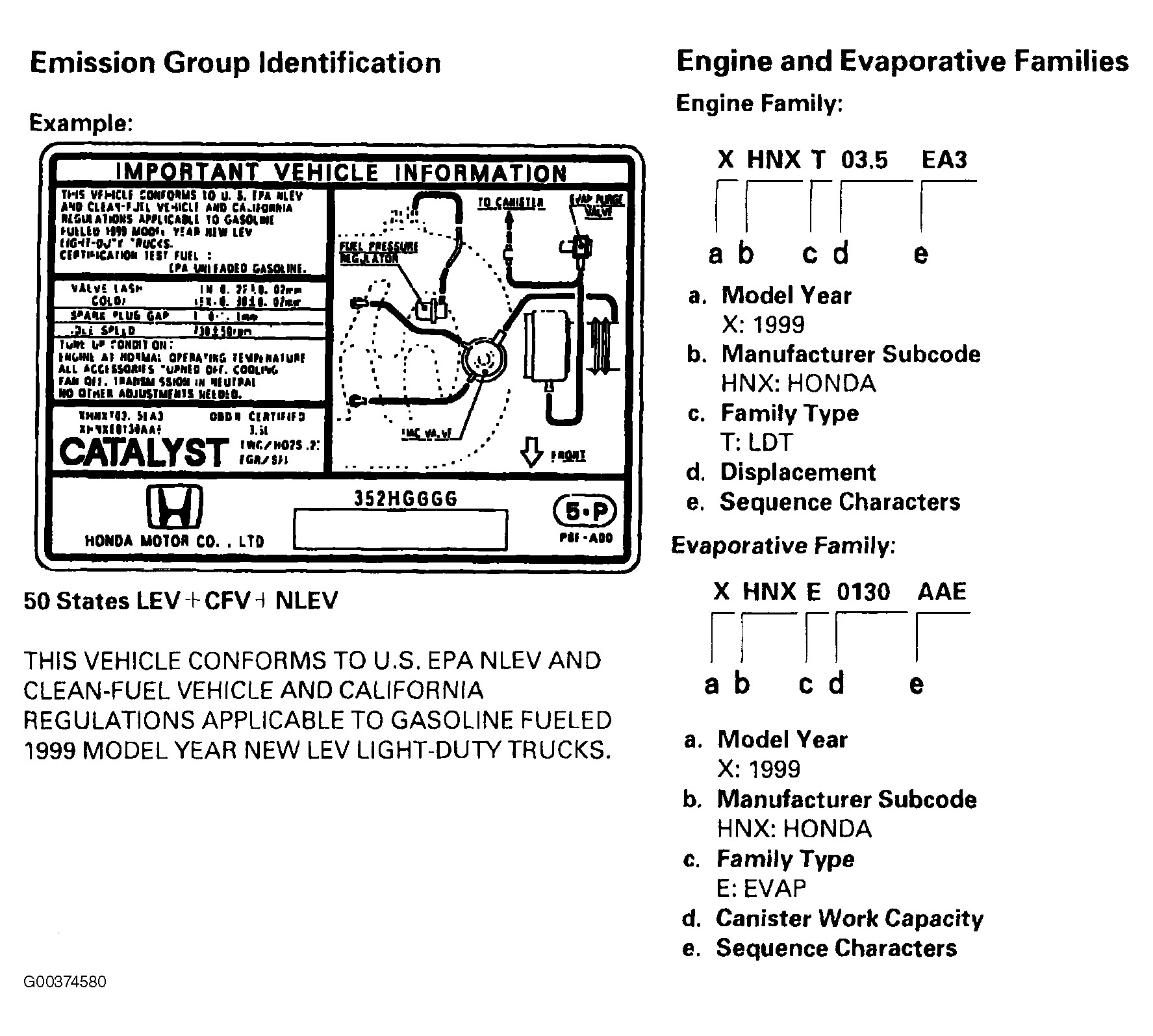

Fig 1: Under-Hood Emission Control Label (1999 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

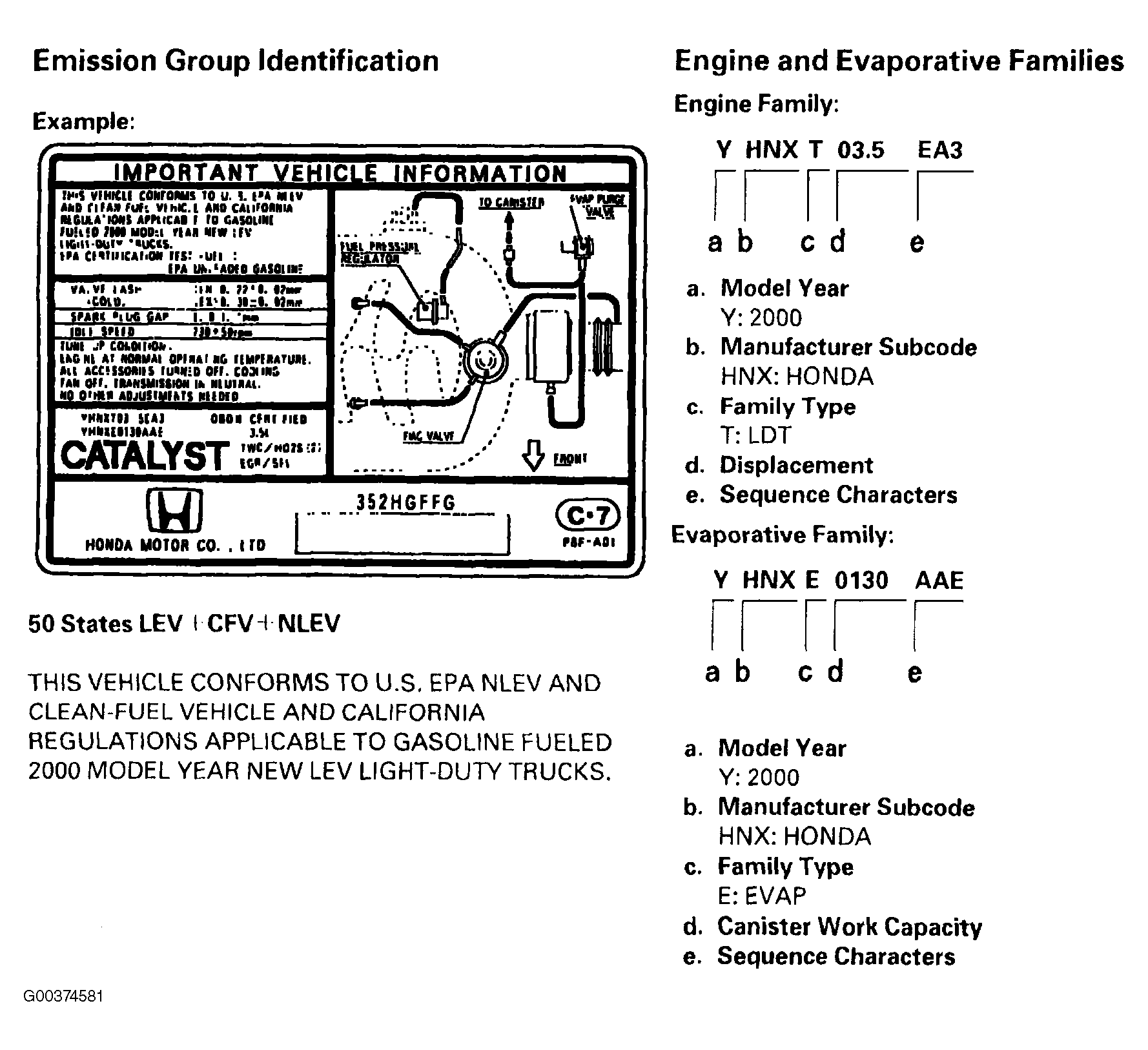

Fig 2: Under-Hood Emission Control Label (2000 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

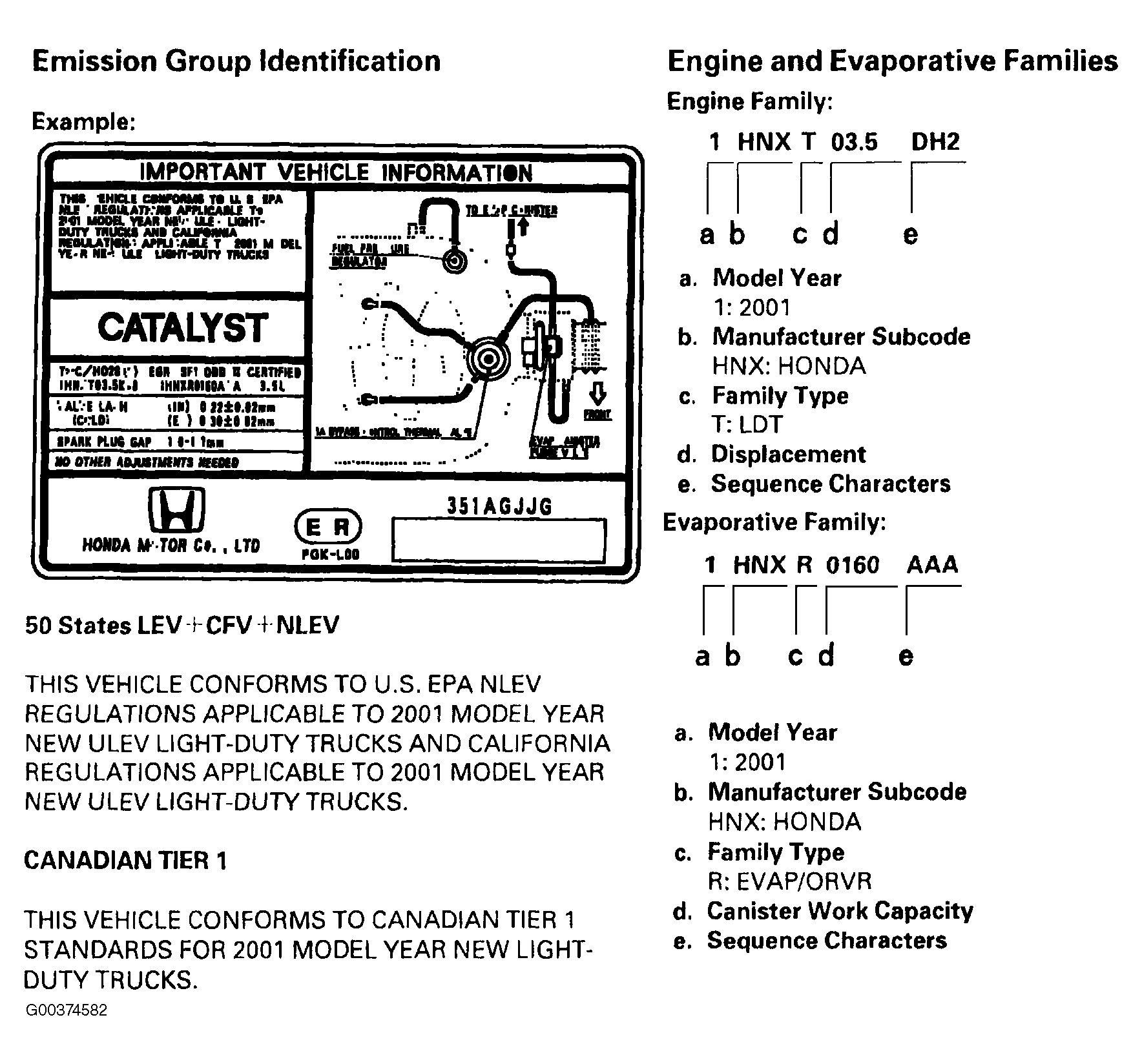

Fig 3: Under-Hood Emission Control Label (2001 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

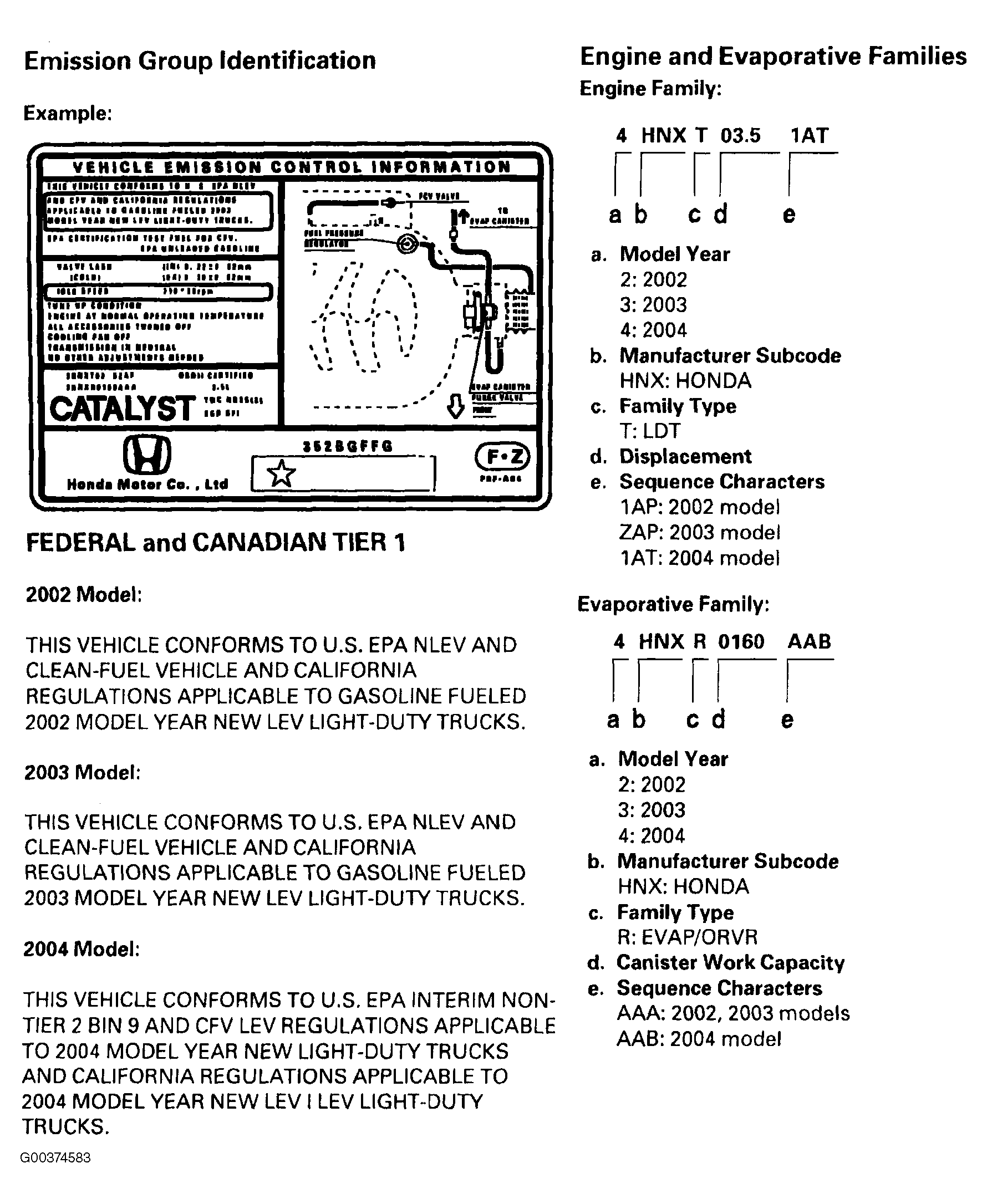

Fig 4: Under-Hood Emission Control Label (2002-04 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
