Glove Box Light Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box (see LOWER GLOVE BOX REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the glove box light (B).
Glove Box Light: 3.4 W

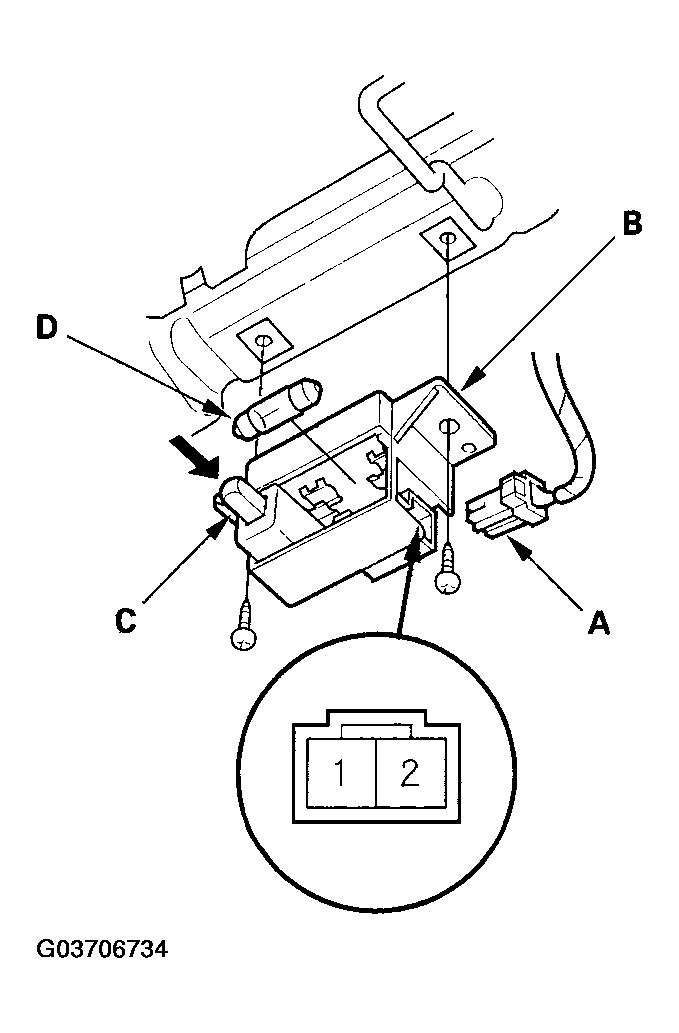

Fig 1: Removing Glove Box Light
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the No. 1 and No. 2 terminals.
- With the button (C) released, there should be continuity.
- With the button (C) pressed, there should be no continuity.
If the continuity is not as specified, check the bulb (D). If the bulb is OK, replace the light.
