Without Power Tailgate

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If the tailgate latch can't be unlocked by using the keyless entry transmitter or by unlocking the driver's door lock, remove the maintenance lid (A) from the tailgate lower trim panel, then unlock the tailgate latch by turning the pivot of the lever clockwise with a flat-tip screwdriver.

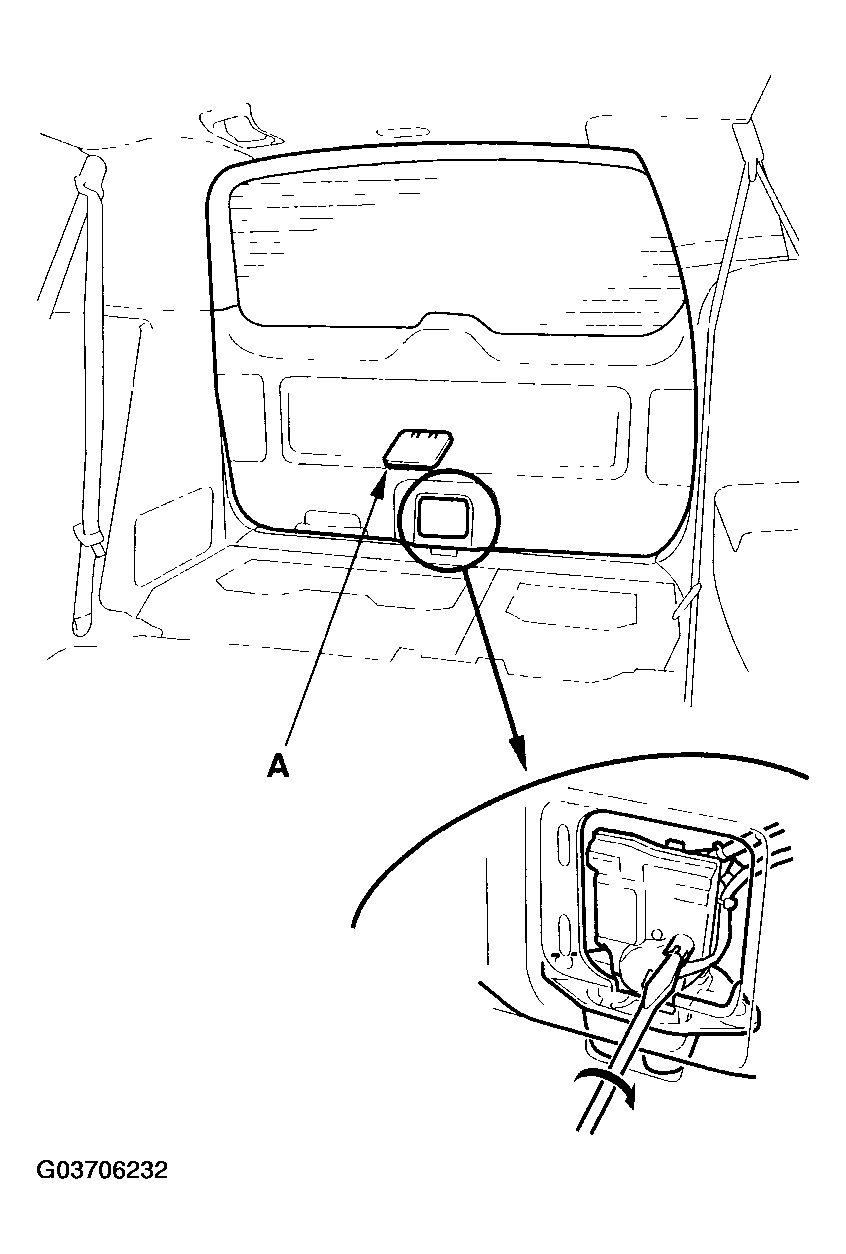

Fig 1: Removing Maintenance Lid From Tailgate Lower Trim Panel
G03706232Courtesy of AMERICAN HONDA MOTOR CO., INC.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the tailgate opener cable from the tailgate handle.
  3. Disconnect the tailgate latch switch connector (A) and tailgate actuator connector (B).

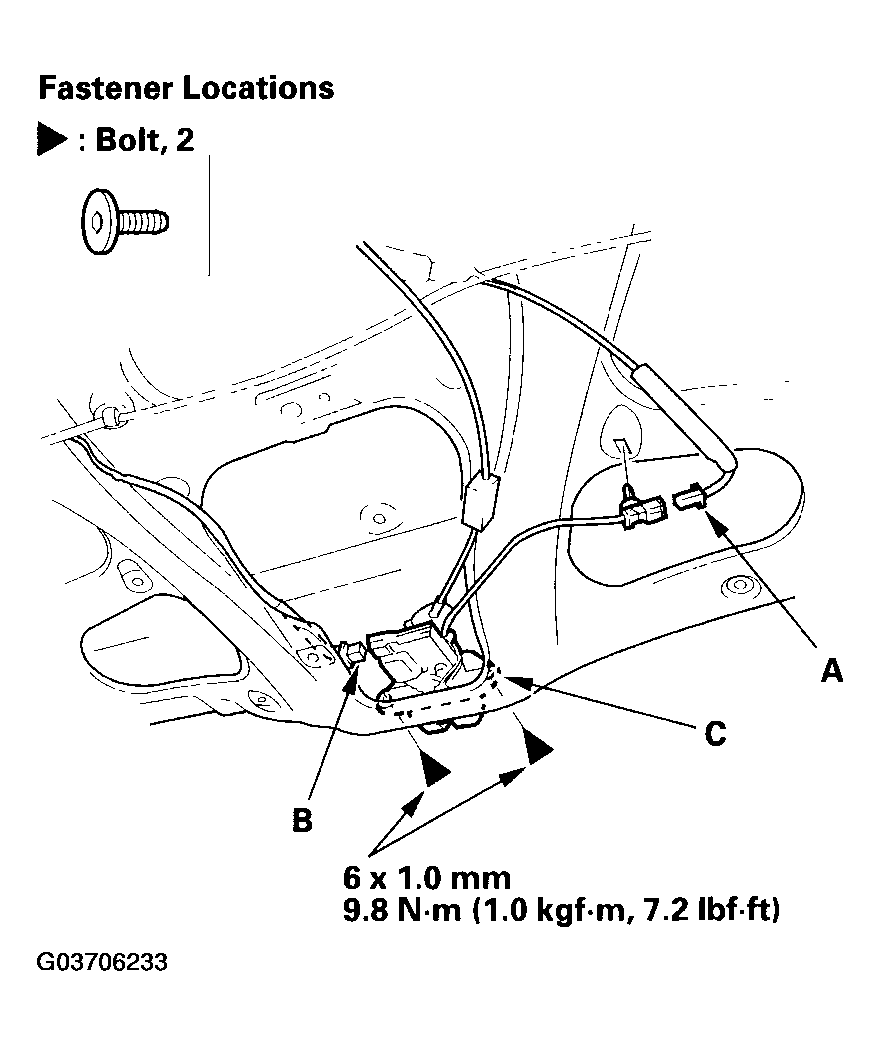

    Fig 2: Disconnecting Tailgate Latch Switch Connector And Tailgate Actuator Connector
    G03706233Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts, and pull the tailgate latch (C) out, then remove it.
NOTE: Put on gloves to protect your hands.
