Retainer Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Gradually scrape off the adhesive tape (A) under the retainers (B) while heating it with a heat gun about 212-248°F (100-120°C).
NOTE:
- To prevent damage, do not heat the painted surface around the retainers too much.
- To keep the exterior resin parts near the front pillar from being overheated by the heat gun, wrap them with aluminum foil.

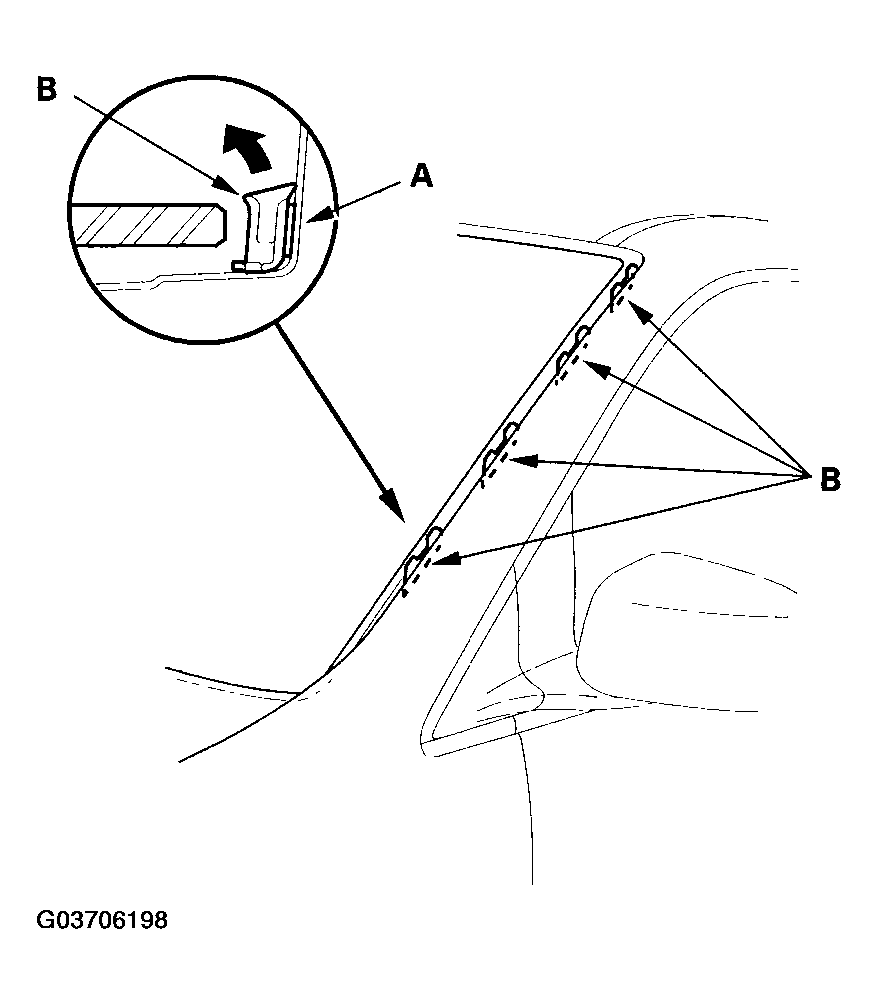

Fig 1: Scraping Off Adhesive Tape Under Retainers Using Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean the body bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
Install the retainers (A).
- -1 Peel the adhesive backing away from the retainers.
- -2 Line up the retainers with the alignment marks (B) on the body, and attach the retainers with adhesive tape (C).
- -3 Apply two-part epoxy adhesive (D) around the edge of the retainers as shown in Fig 2 .
Adhesive tape:
- Thickness 1 mm (0.04 in.)
- Width 8 mm (0.32 in.)

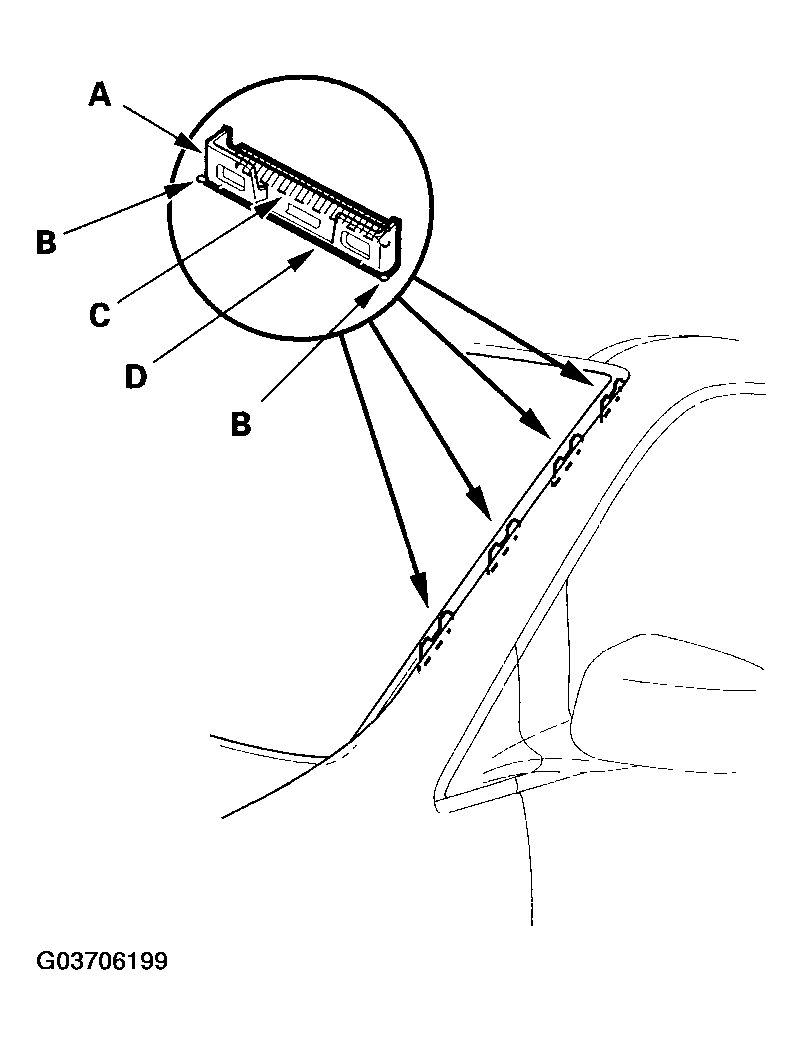

Fig 2: Installing Retainers
Courtesy of AMERICAN HONDA MOTOR CO., INC.
