Oil Pan Removal

  1. If the engine is still in the vehicle, drain the engine oil (see ENGINE OIL REPLACEMENT ).
  2. Remove the exhaust pipe A (see step 32 on Removal  ).
  3. Remove the torque converter cover (A) and the two bolts (B) securing the transmission.

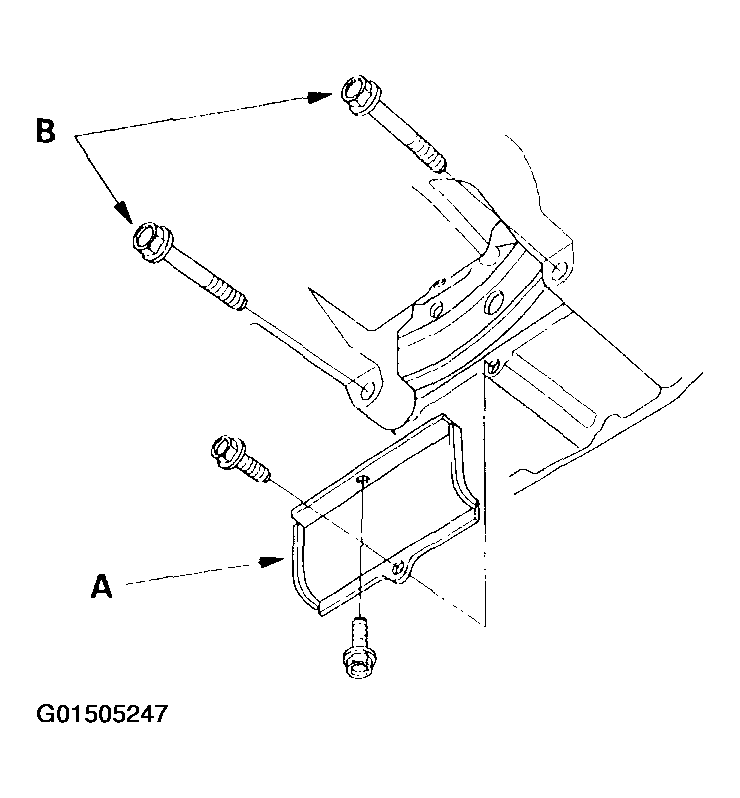

    Fig 1: Removing Torque Converter Cover
    G01505247Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts securing the oil pan.
  5. Remove the oil pan.
