Power Mirror Actuator Test

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 3P or 6P connector (A) from the power mirror (B).

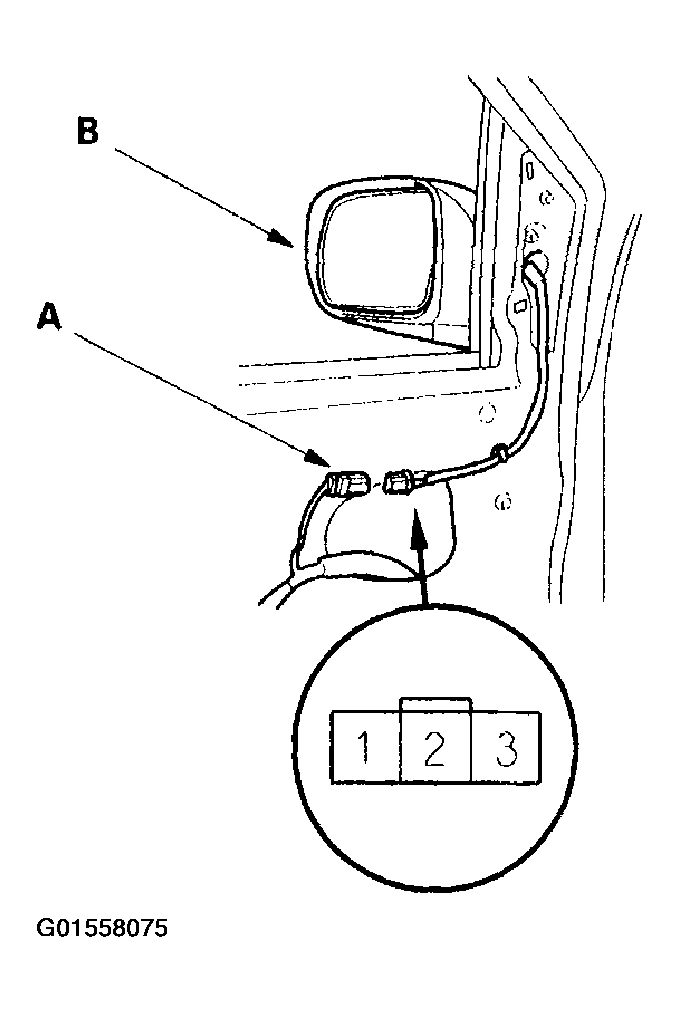

Fig 1: Disconnecting 3P or 6P Connector From Power Mirror (USA)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

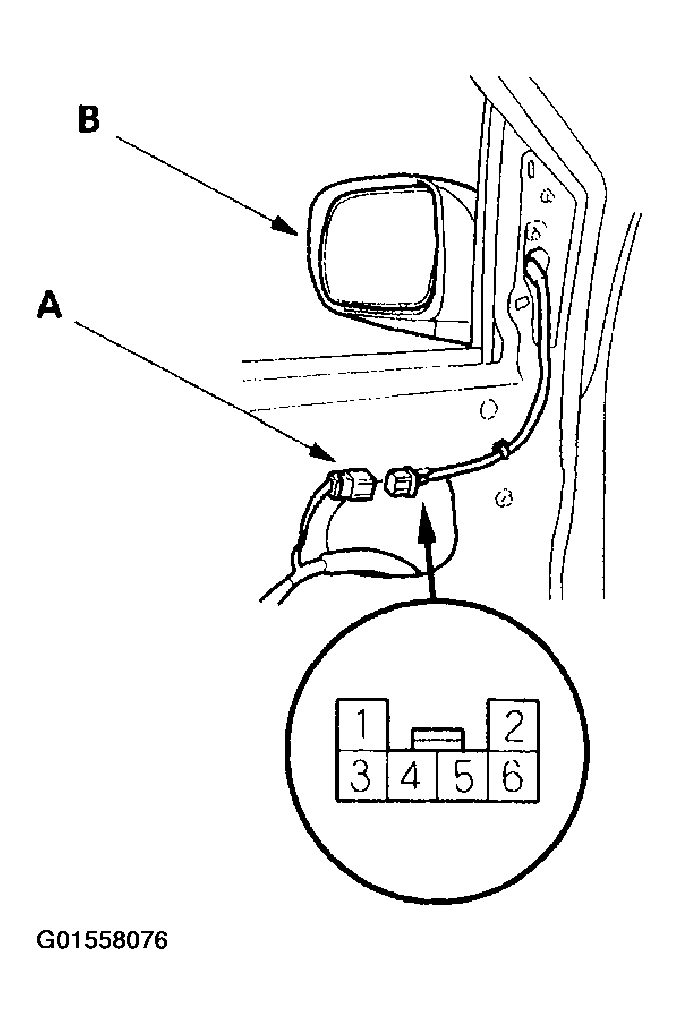

Fig 2: Disconnecting 3P or 6P Connector From Power Mirror (Canada)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check actuator operation by connecting power and ground according to the table.

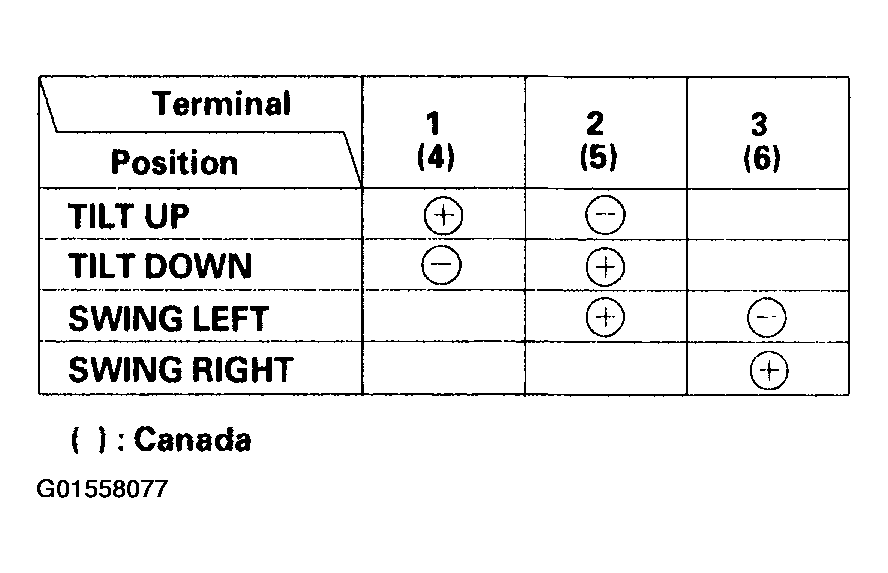

Fig 3: Checking Actuator Operation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the mirror fails to work properly, replace the mirror actuator.
1. Defogger Test (Canada)
Check for continuity between the No. 1 and No. 2 terminals of the 6P connector. There shold be continuity.
If there is no continuity, replace the mirror.
