Power Mirror Actuator Replacement

Remove the power mirror from the door (see Power Mirror Replacement ).
Disconnect the 3P or 6P connector from the mirror.

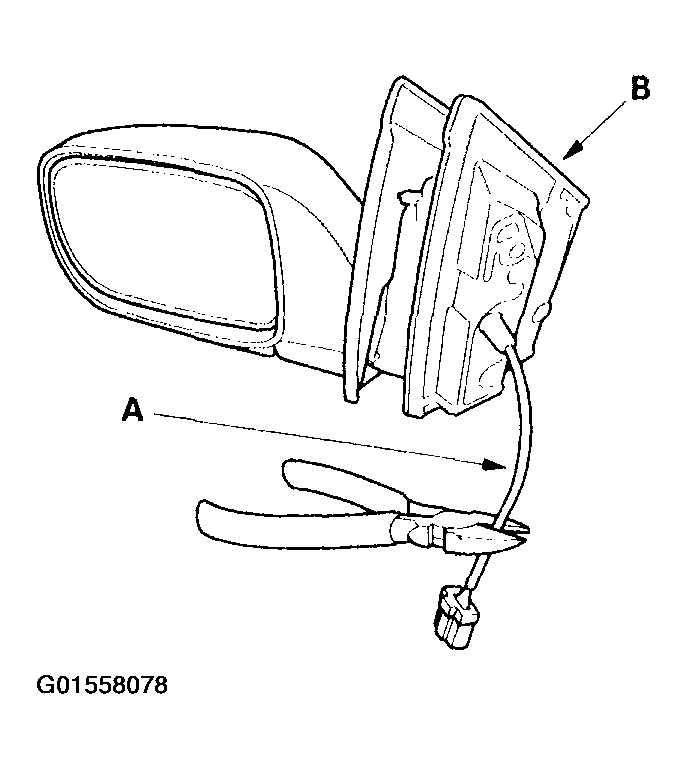

Cut the wire harness (A) with a wire cutter.

Fig 1: Cutting Wire Harness With Wire Cutter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the seat base (B).

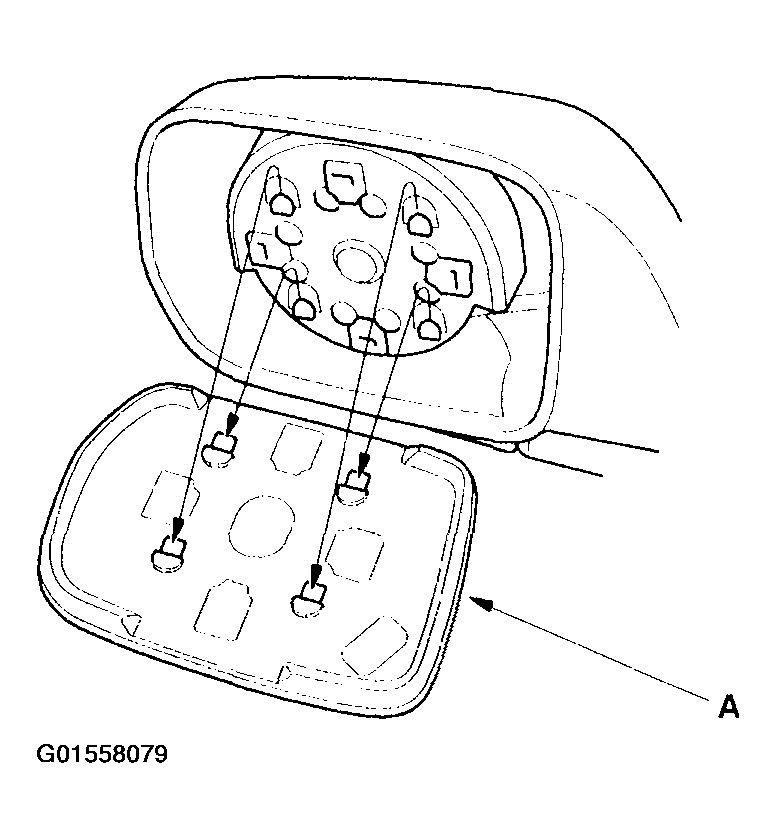

Remove the mirror holder (A) (see Mirror Holder Replacement ).

Fig 2: Removing Mirror Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

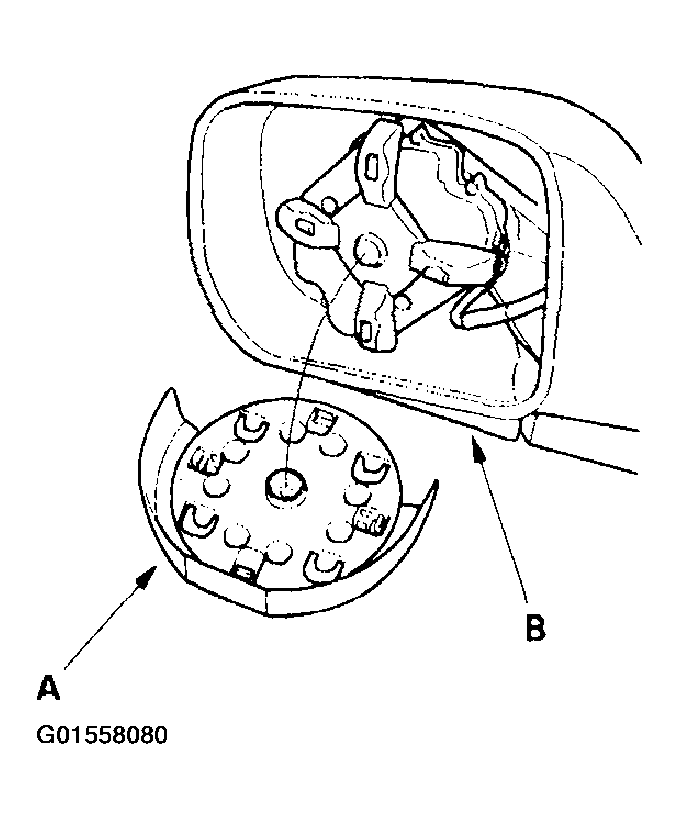

Pry off the holder (A) from the housing (B).

Fig 3: Prying Off Holder From Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

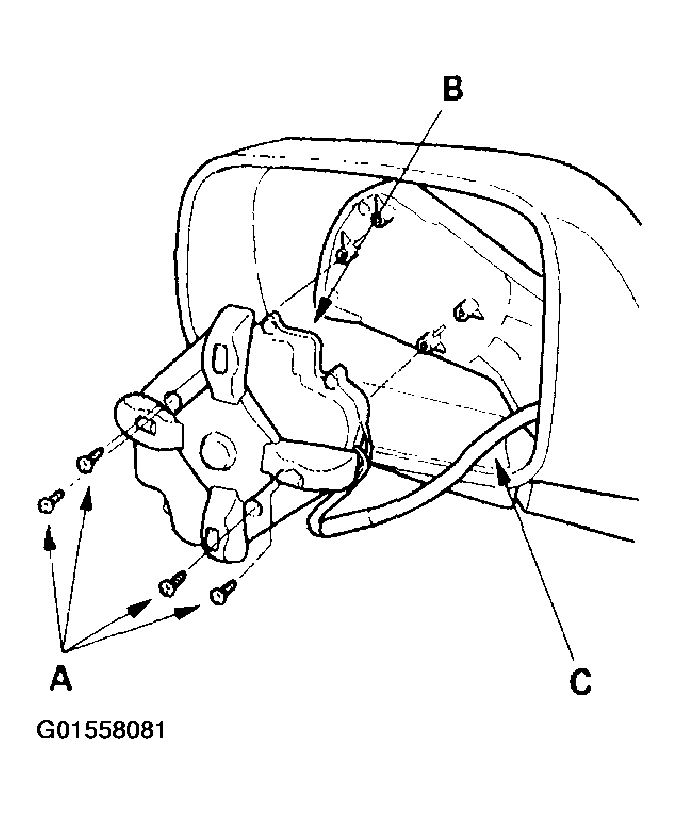

Remove the four screws (A) and the actuator (B) from the housing.

Fig 4: Removing Screws & Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the wire (C) from the housing.
Install in the reverse of removal. Replace the mirror and three screws with new one.
Insert the terminals into the connector in the original arrangement as shown below.

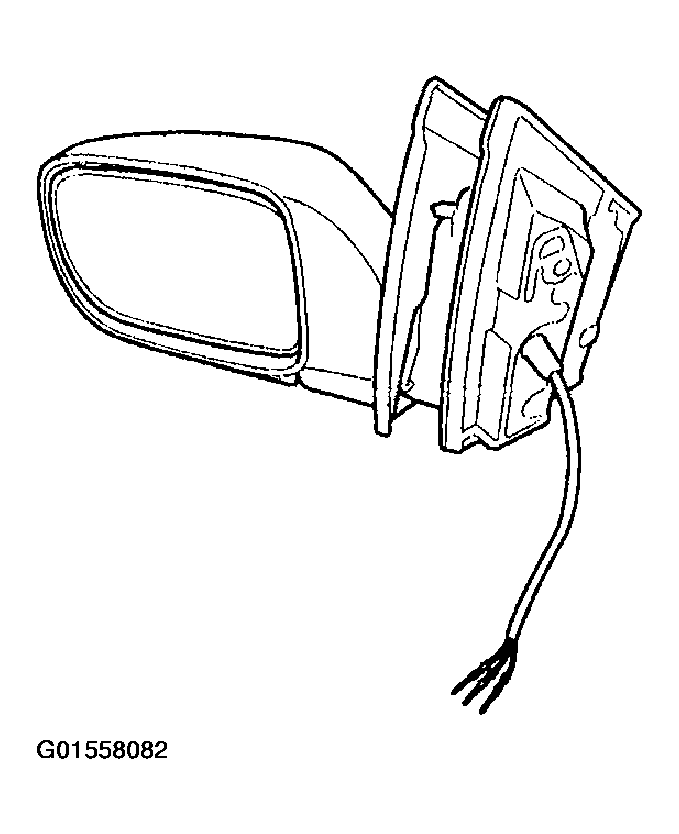

Fig 5: Replacing Mirror & Screws With New One
Courtesy of AMERICAN HONDA MOTOR CO., INC.

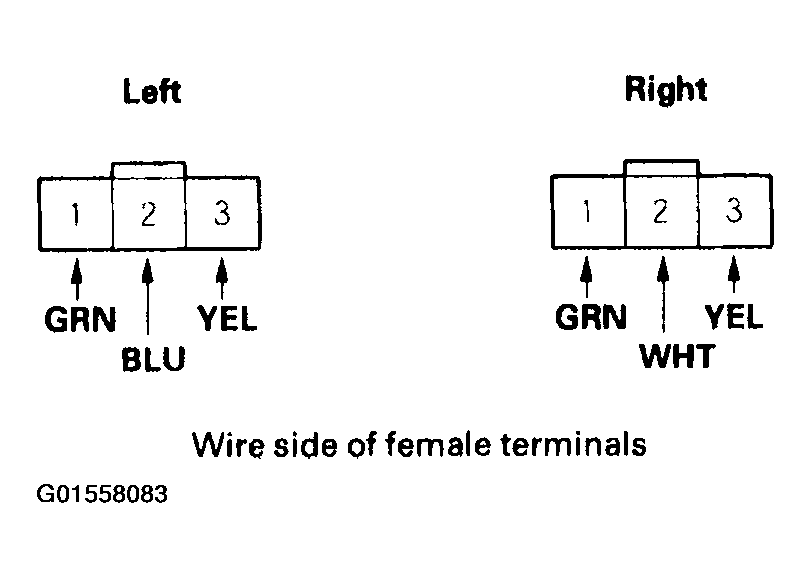

Fig 6: Inserting Terminals Into Connector (USA)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

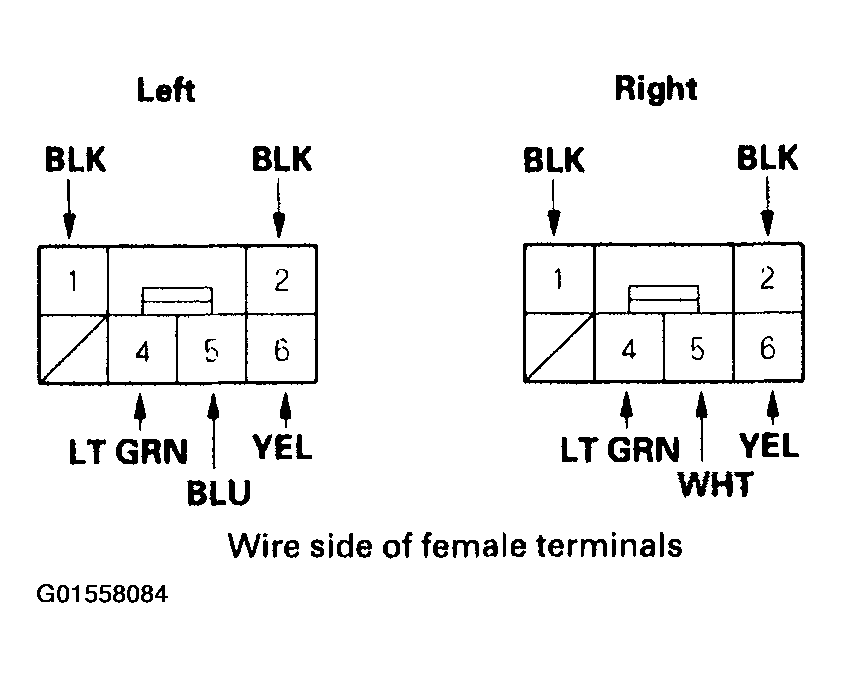

Fig 7: Inserting Terminals Into Connector (Canada)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Operate the power mirror to check that the actuator works smoothly.
