How to Remove the PCM for Testing

If the inspection for a trouble code requires voltage or resistance checks at the PCM connectors, remove the PCM and test it:

1. Pull back the carpet and remove the passenger's and driver's side center lower console covers (A and B) to expose the PCM (C).

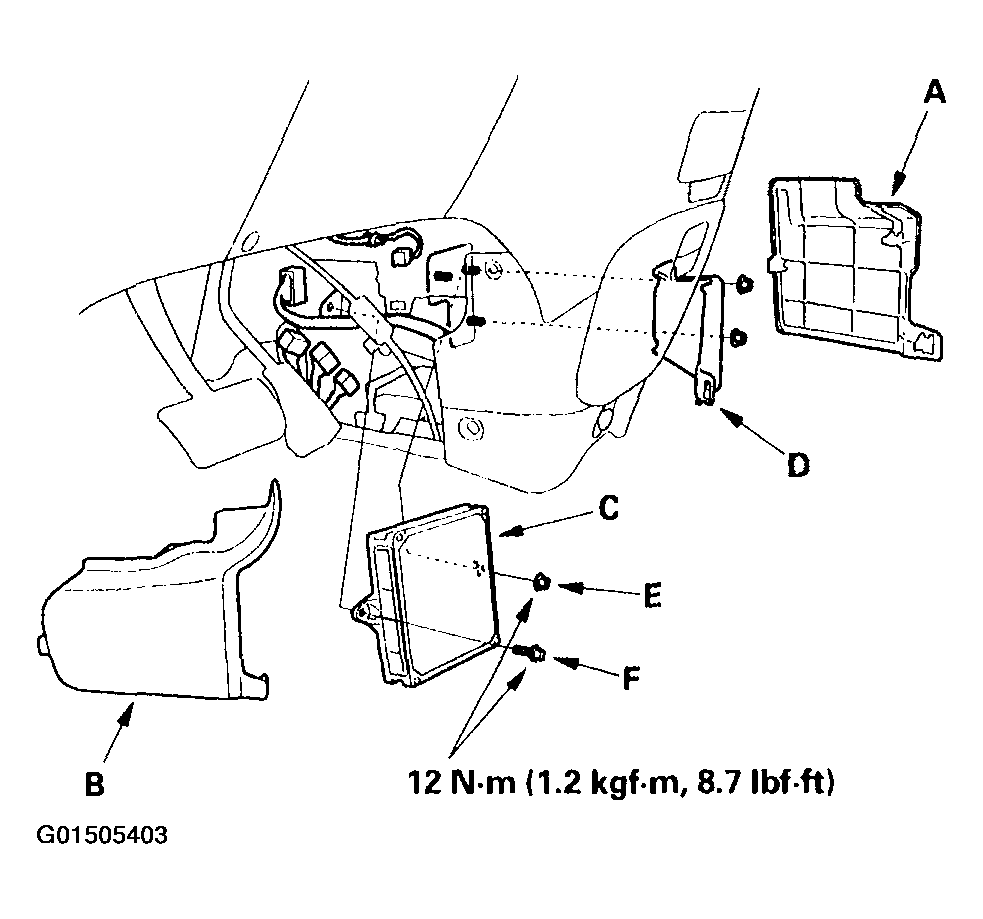

   Fig 1: Removing Passenger's & Driver's Side Center Lower Console Covers

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the PCM cover (D) from the passenger's side under-dash to access the PCM mounting nut (E).
3. Remove the PCM mounting bolt (F) and remove the PCM.
