Window Motor, Front Passenger's Connector End View

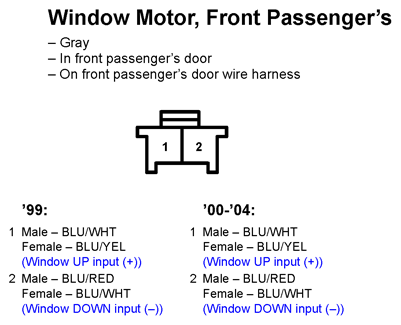

Fig 1: Window Motor, Front Passenger's Connector End View

G11250707

Courtesy of AMERICAN HONDA MOTOR CO., INC.
