Washer Motor, Rear Window Connector End View

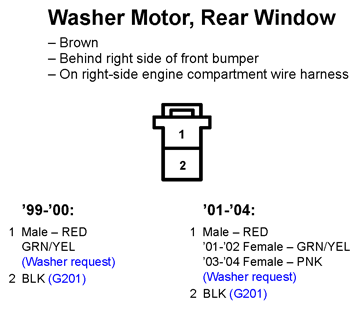

Fig 1: Washer Motor, Rear Window Connector End View

G11250701

Courtesy of AMERICAN HONDA MOTOR CO., INC.
