Tailgate Lock Actuator Connector End View

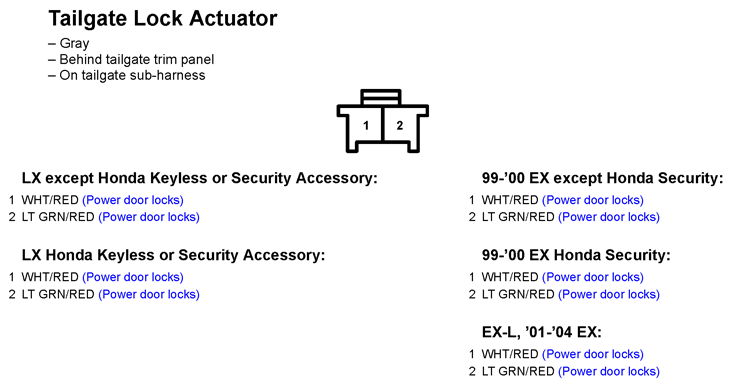

Fig 1: Tailgate Lock Actuator Connector End View

G11250695

Courtesy of AMERICAN HONDA MOTOR CO., INC.
