Sliding Door Junction Switch Connector, Right Connector End View

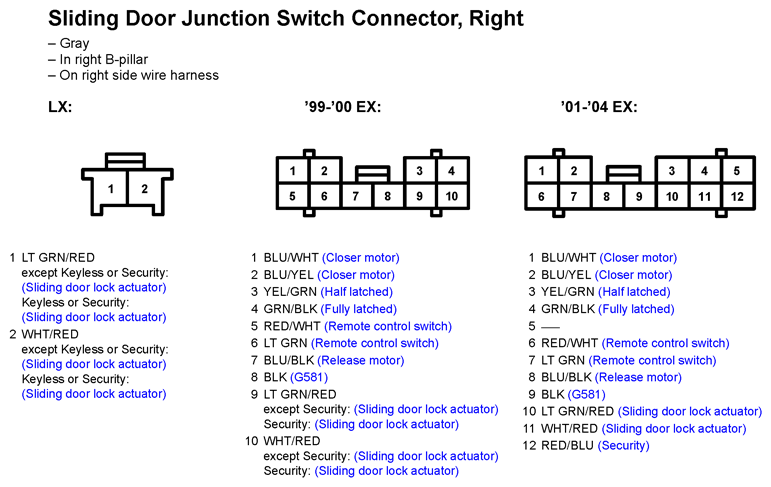

Fig 1: Sliding Door Junction Switch Connector, Right Connector End View

G11250844

Courtesy of AMERICAN HONDA MOTOR CO., INC.
