Media Control Panel (Honda Accessory) Connector End View

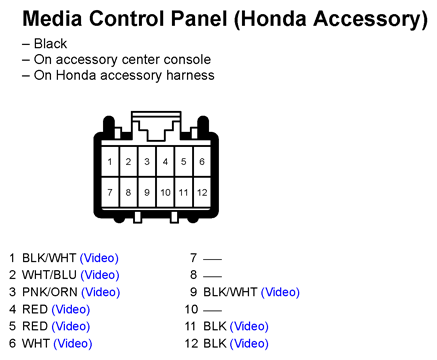

Fig 1: Media Control Panel (Honda Accessory) Connector End View

G11250943

Courtesy of AMERICAN HONDA MOTOR CO., INC.
