ABS Modulator Unit ('99-'00 LX) Connector End View

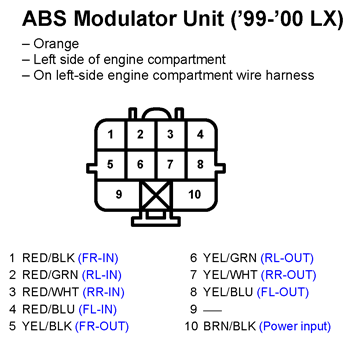

Fig 1: ABS Modulator Unit ('99-'00 LX) Connector End View

G11250806

Courtesy of AMERICAN HONDA MOTOR CO., INC.
