A/C Condenser Fan Motor Connector End View

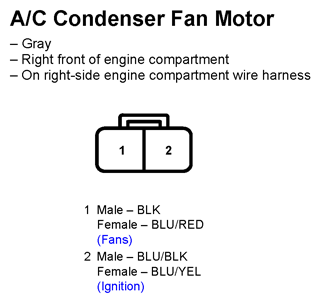

Fig 1: A/C Condenser Fan Motor Connector End View

G11250646

Courtesy of AMERICAN HONDA MOTOR CO., INC.
