Circuit Diagram
>>
Without Factory Security System
Without Factory Security System

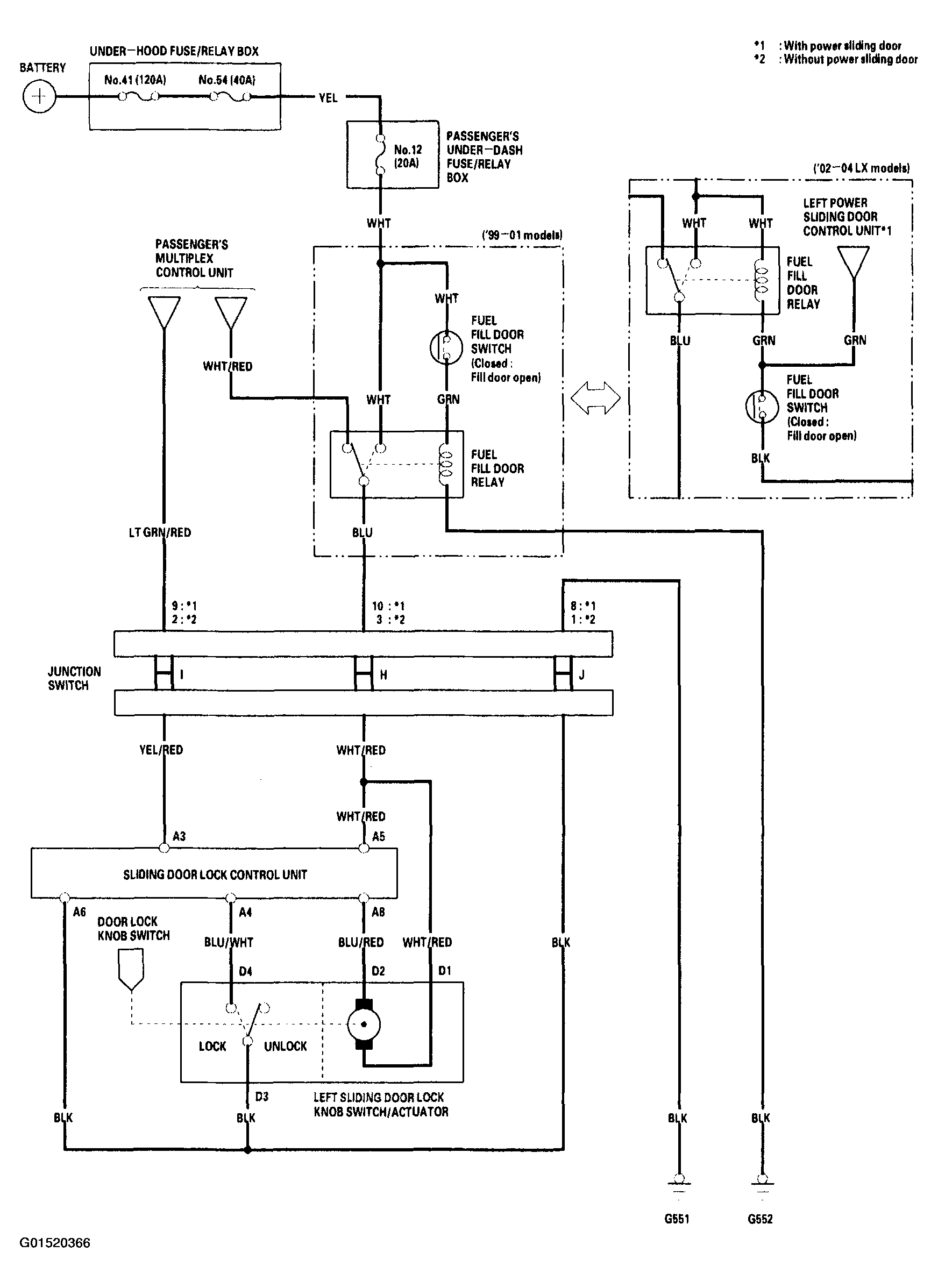

Fig 1: Sliding Door Lock Without Factory Security System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
