Power Sliding Door Switch Test

Remove instrument panel lower cover. Disconnect power sliding door switch 10-pin harness connector. With switch in indicated position, check for continuity between specified terminals. See Fig 1. See POWER SLIDING DOOR SWITCH TEST table. Replace power sliding door switch if continuity is not as specified. See POWER SLIDING DOOR SWITCH under REMOVAL & INSTALLATION.

POWER SLIDING DOOR SWITCH TEST

Application & Switch Position

Continuity Between Terminals No.

Main Switch

1 & 10

Off

⁽¹⁾

Open/Close Switch ⁽²⁾

Left Door

Open

7 & 8

8 & 9

Right Door

Open

2 & 3

3 & 4

⁽¹⁾	No continuity exists.

⁽²⁾	Light bulbs are located in circuit between terminals No. 5 and 6.

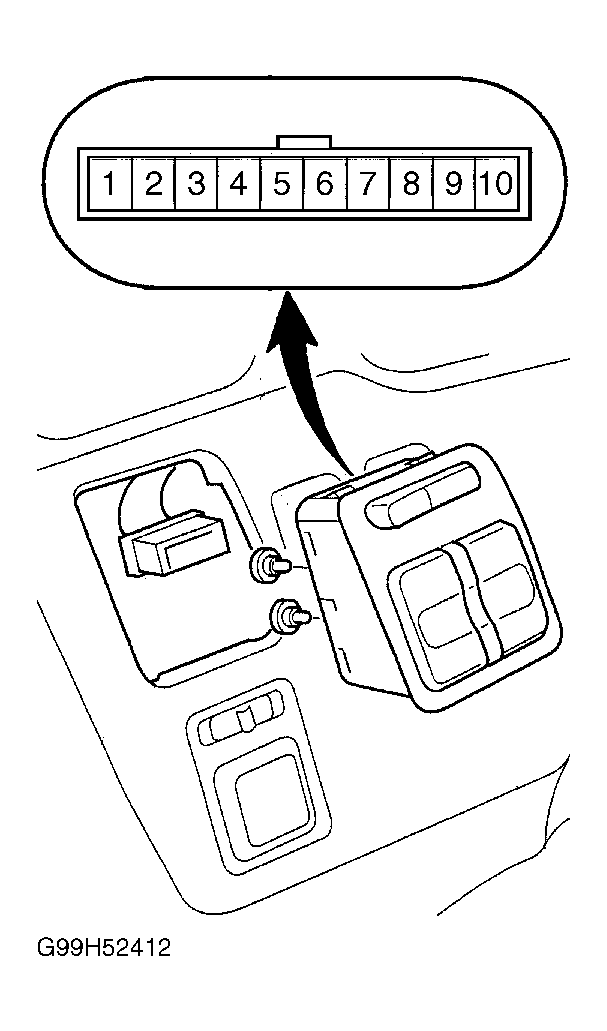

Fig 1: Identifying Power Sliding Door Switch Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
