Oil Seal Replacement

Special Tools Required

• Driver 07749-0010000
• Pilot, 26 x 30 mm 07JAD-PH80200
• Oil seal driver attachment 07JAD-PN00100

1. Remove the differential assembly.
2. Remove the oil seal (A) from the transmission housing (B).
   Fig 1: Removing Oil Seal From Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the oil seal (A) from the clutch housing (B).

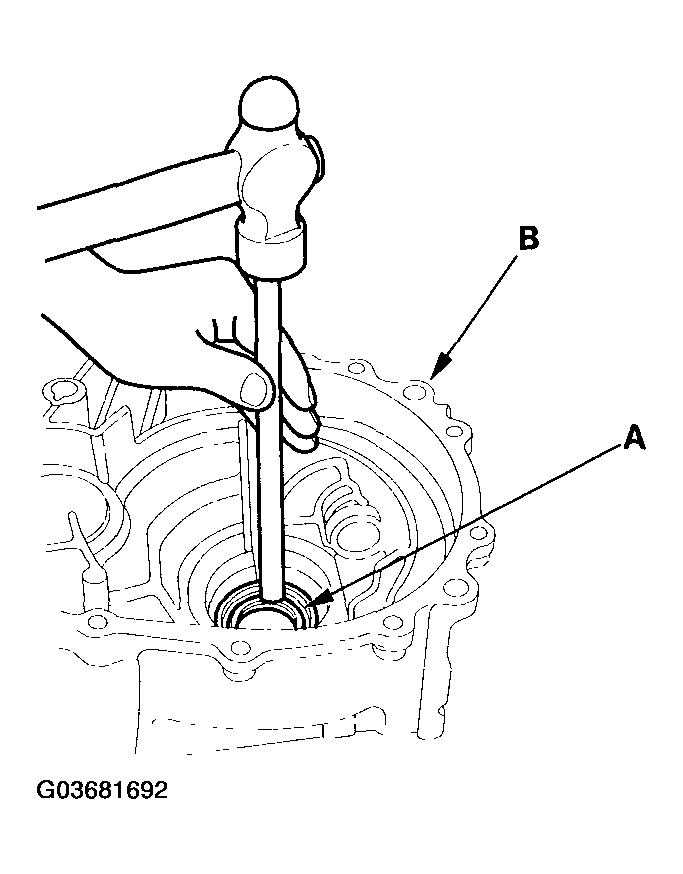

   Fig 2: Removing Oil Seal From Clutch Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the new oil seal (A) in the transmission housing (B) with the special tools.

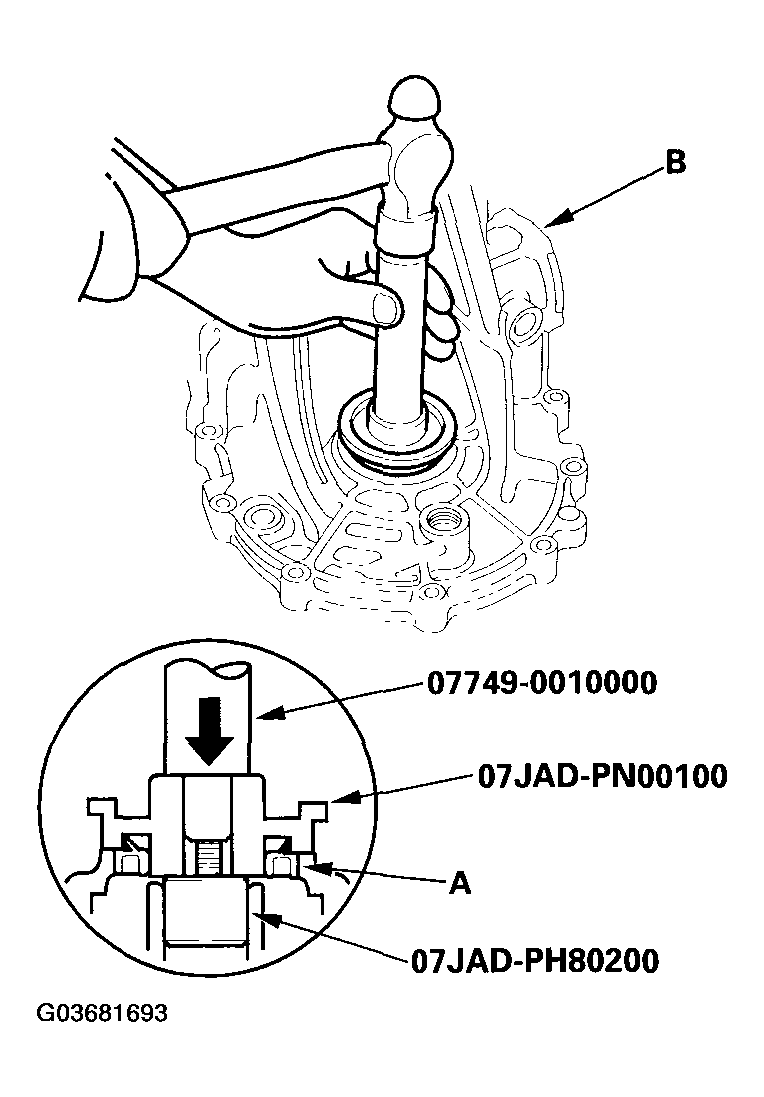

   Fig 3: Installing Oil Seal In Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the new oil seal (A) in the clutch housing (B) with the special tools.

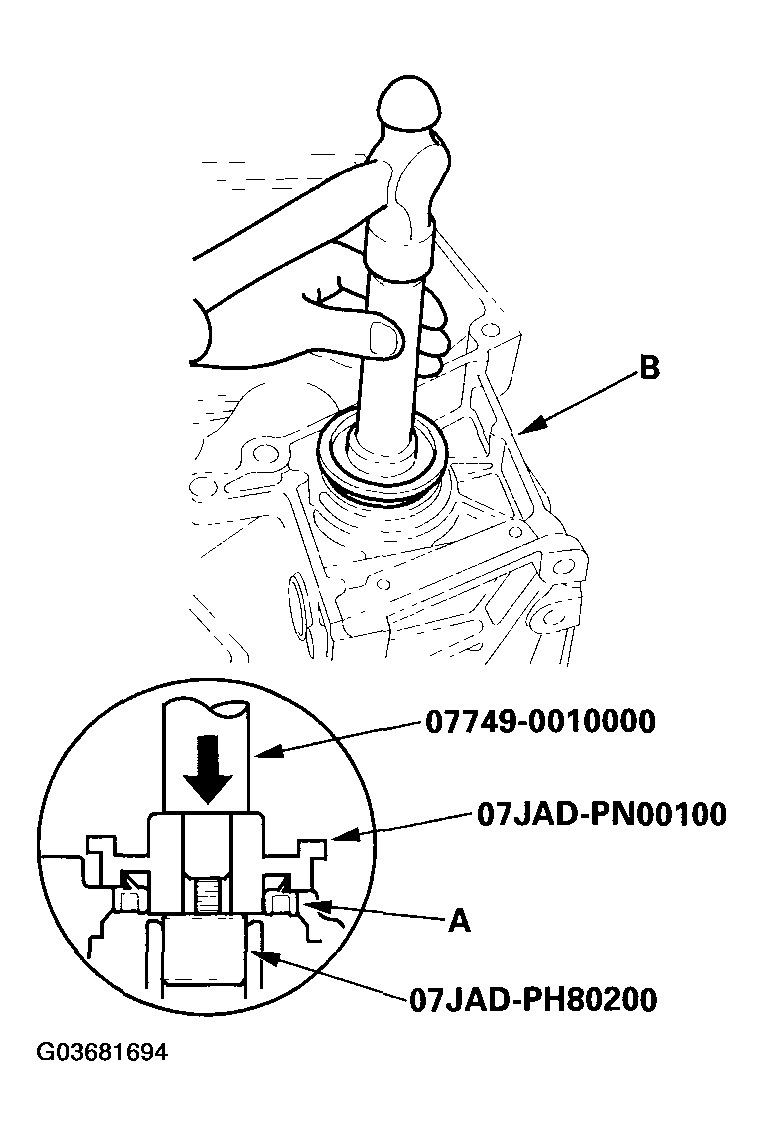

   Fig 4: Installing Oil Seal In Clutch Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
