Brake Fluid Pressure Sensor System (2005-2006 M/T models)

The brake fluid pressure sensors convert brake fluid pressure into an electrical input to the ECM.

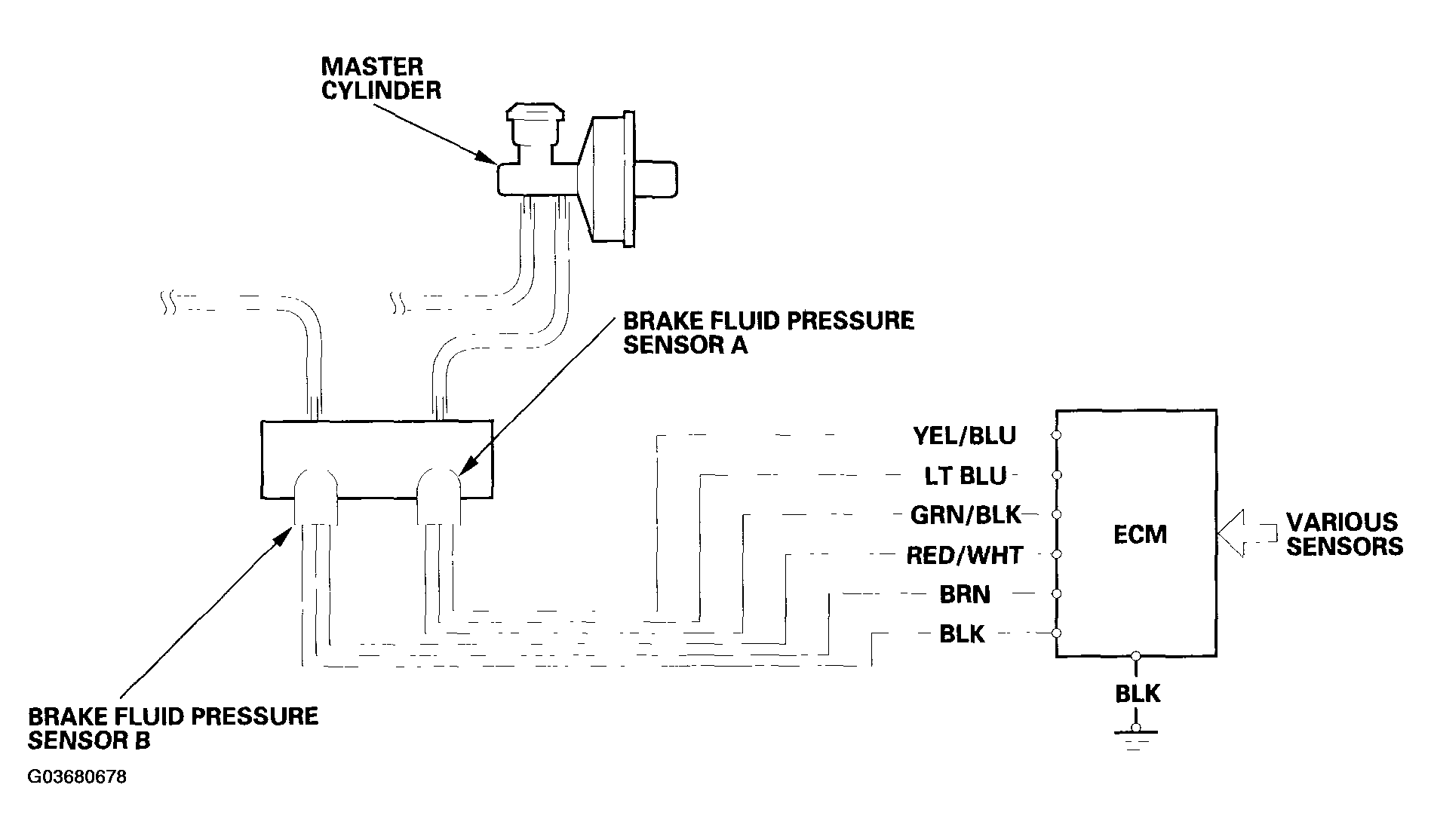

Fig 1: Identifying Brake Fluid Pressure Sensor System Components (2005-2006 M/T Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
