ATF Cooler Hose Replacement

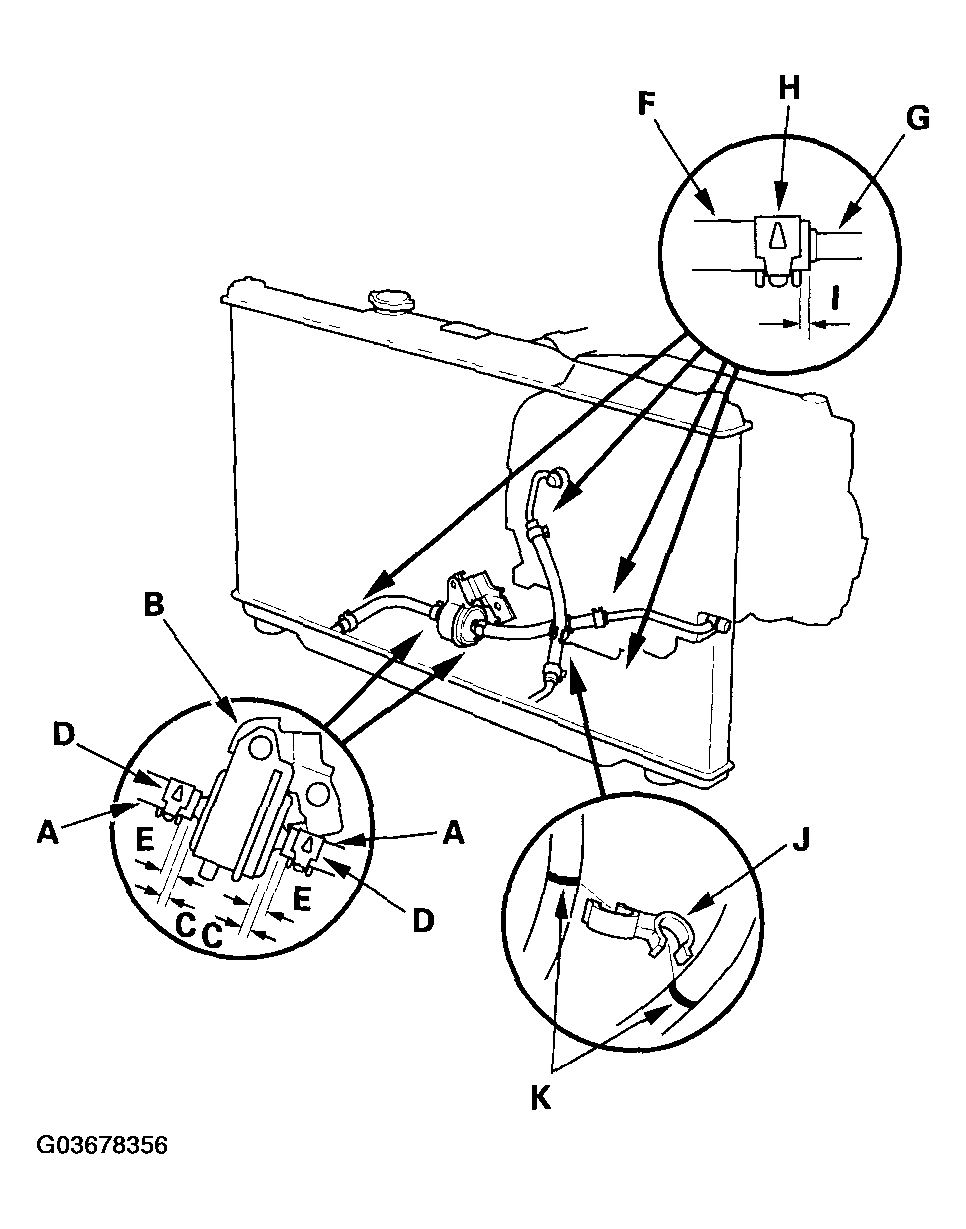

- Slide the ATF cooler hoses (A) on the ATF filter (B) until they are 5-6 mm (0.20-0.24 in.) (C) away from the filter housing.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Secure the hoses with the clips (D) at 10-12 mm (0.4-0.5 in.) (E) from the filter housing.
- Slide the ATF cooler hoses (F) over the ATF cooler lines (G), then secure the hoses with the clips (H) at 2-4 mm (0.1-0.2 in.) (I) from the hose ends.
- Install the hose clamp (J) at the marks (K) on the ATF cooler hoses.
