Drive Belt Auto-Tensioner Replacement

Remove the drive belt (see DRIVE BELT INSPECTION ).
Remove the power steering (P/S) pump without disconnecting the P/S hoses.

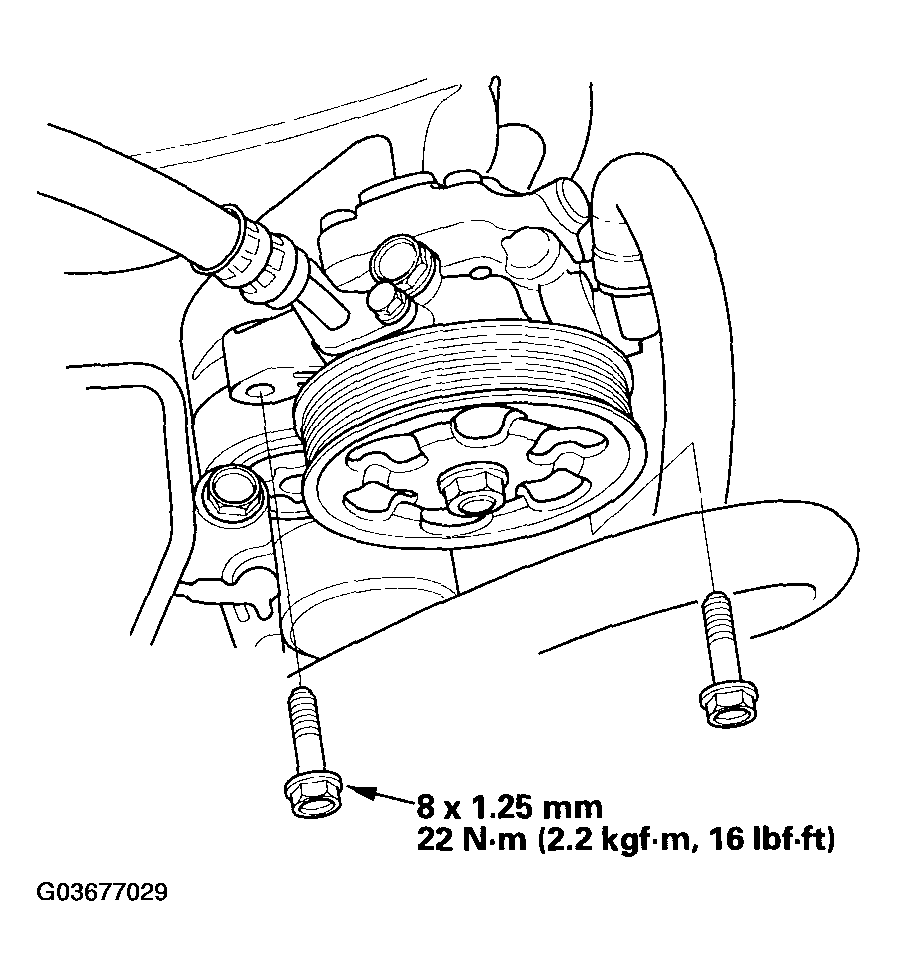

Fig 1: Removing Power Steering Pump Bolts And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the pulley bolt (A), and remove the tensioner pulley (B).

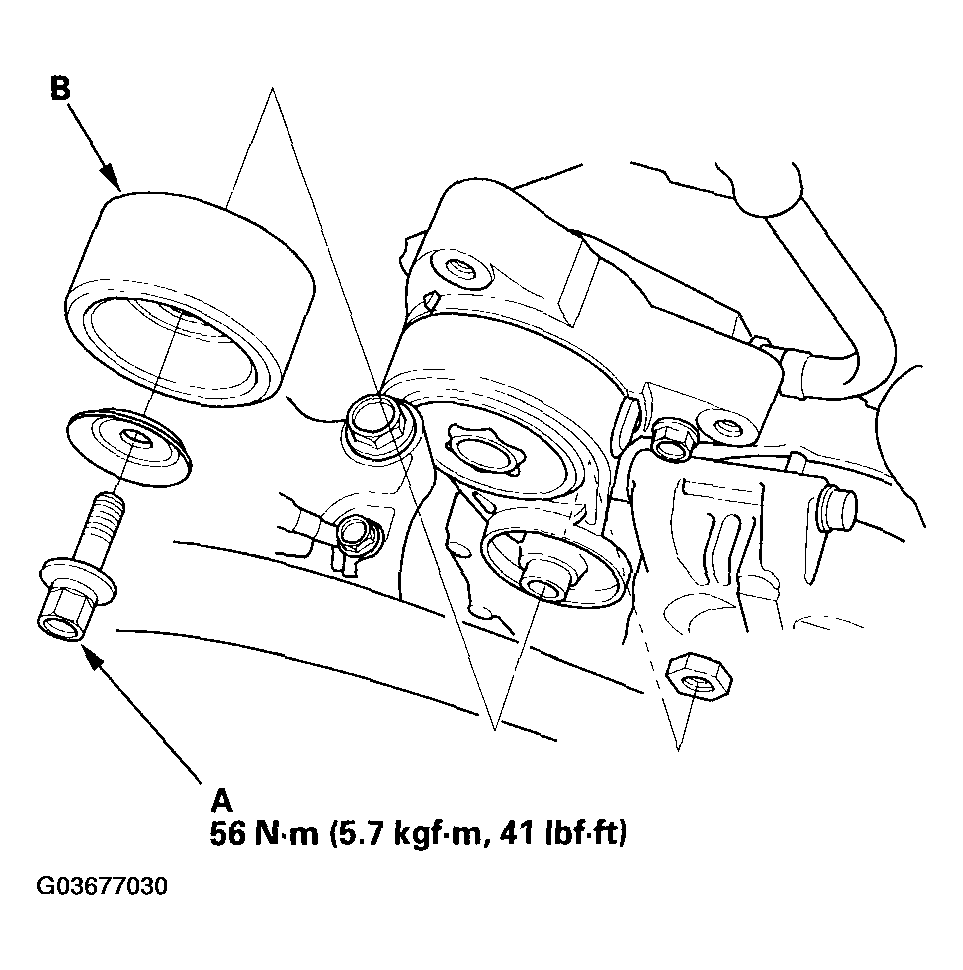

Fig 2: Removing Pulley Bolt And Tensioner Pulley With Specified Torques
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the auto-tensioner.

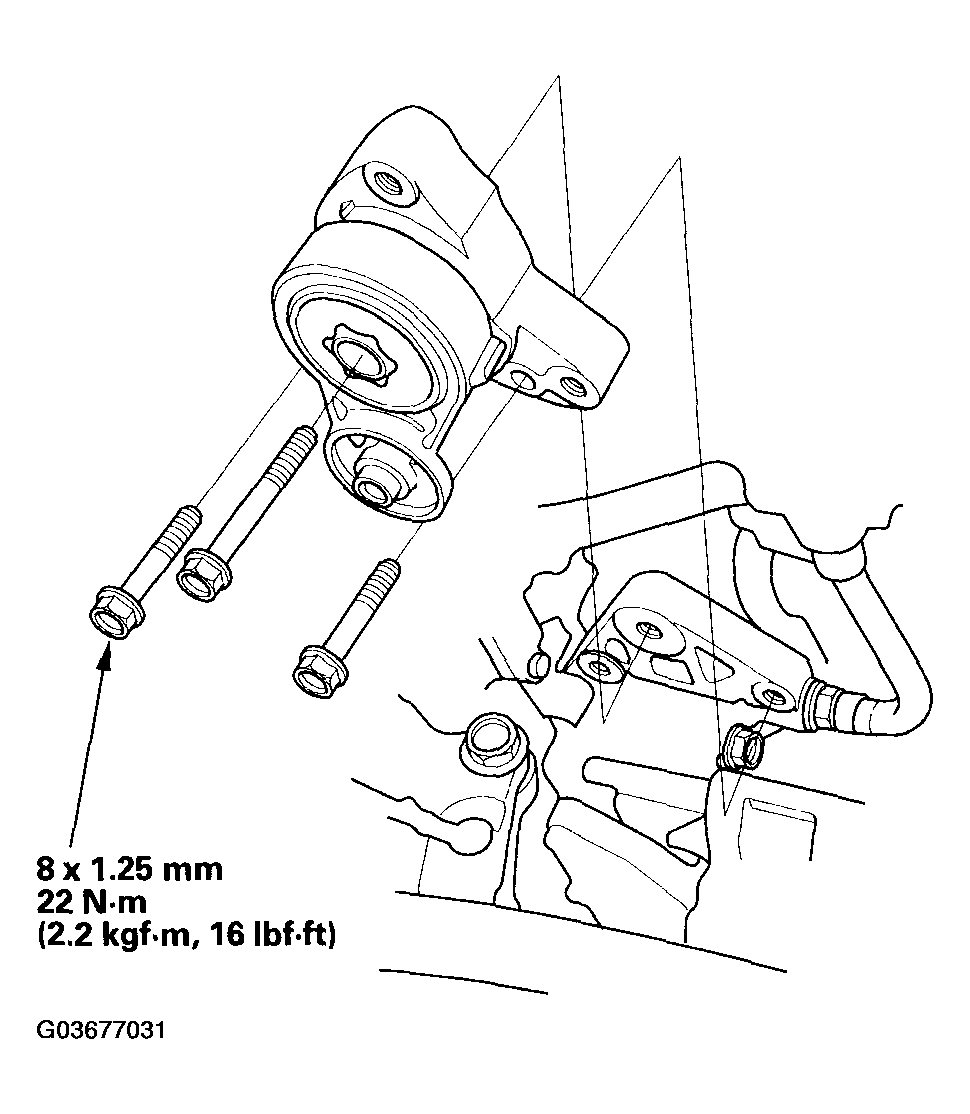

Fig 3: Removing Auto-Tensioner And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the auto-tensioner in the reverse order of removal.
