Exploded View: Notes

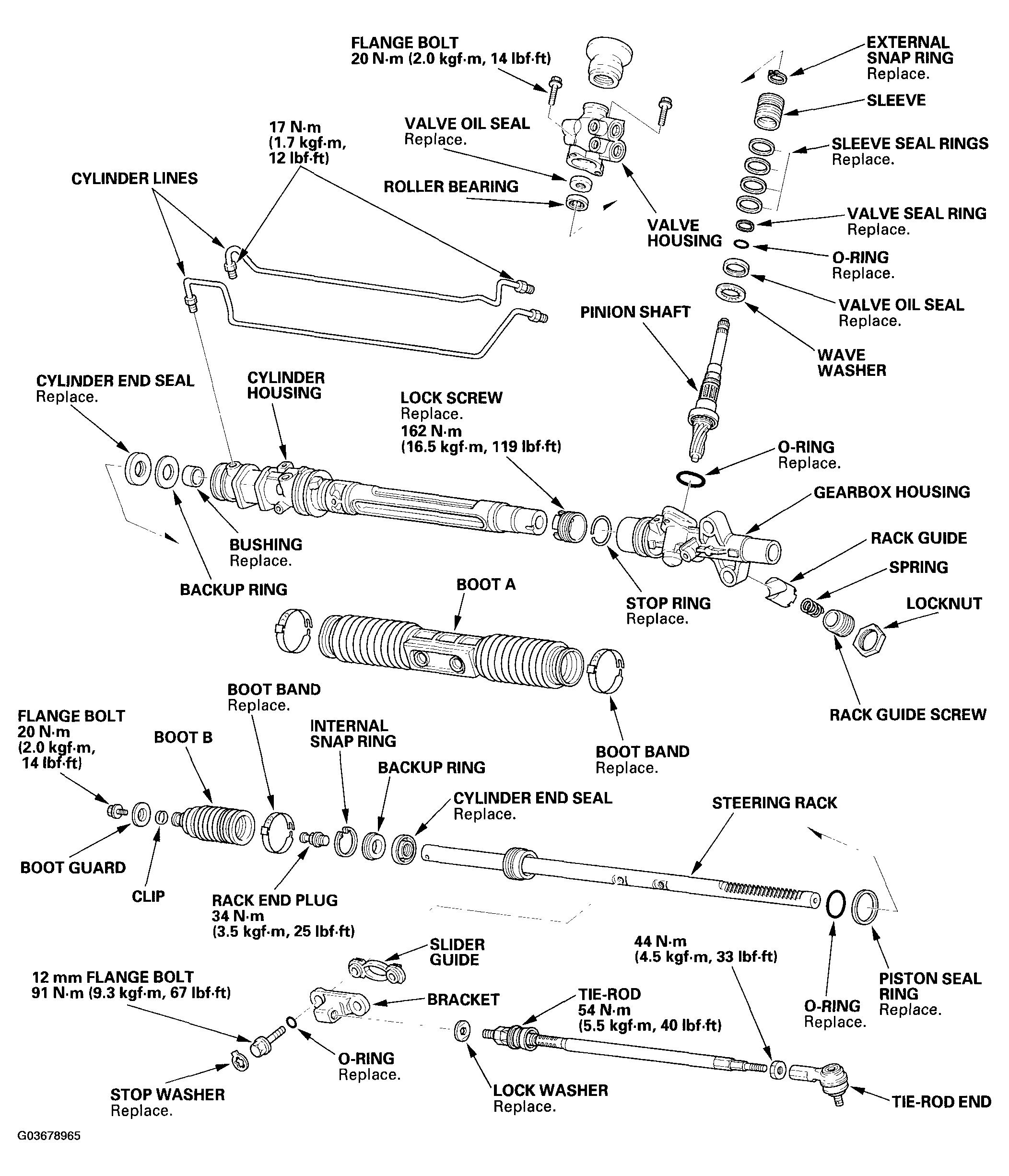

Fig 1: Exploded View Of Steering Gearbox And Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Cylinder end seal remover attachment 07NAD-SR30200 or 07NAD-SR3020A
• Driver, 27 mm 07ZAF-S5A0100
• Valve seal ring sizing tool 07NAG-SR30900 or 07NAG-SR3090A
• Sleeve seal ring guide 07YAG-S2X0100
• Sleeve seal ring sizing tool, 36 mm 07ZAG-S5A0100
• Attachment, 32 x 35 mm 07746-0010100
• Driver 07749-0010000
• Piston seal ring guide, 42 mm 07ZAG-S7A0100
• Piston seal ring sizing tool, 42 mm 07ZAG-S7A0200
• Pilot collar 07GAF-PH70100
• Locknut wrench 07ZAA-S5A0100
• Driver handle 07NAD-SR30101
• Cylinder end seal slider, 23 mm 07974-6890801 or 07974-689080A
• Valve seal ring guide 07ZAG-S5A0200
• Pincers, Oetiker 1098 or equivalent, commercially available
