Exploded View

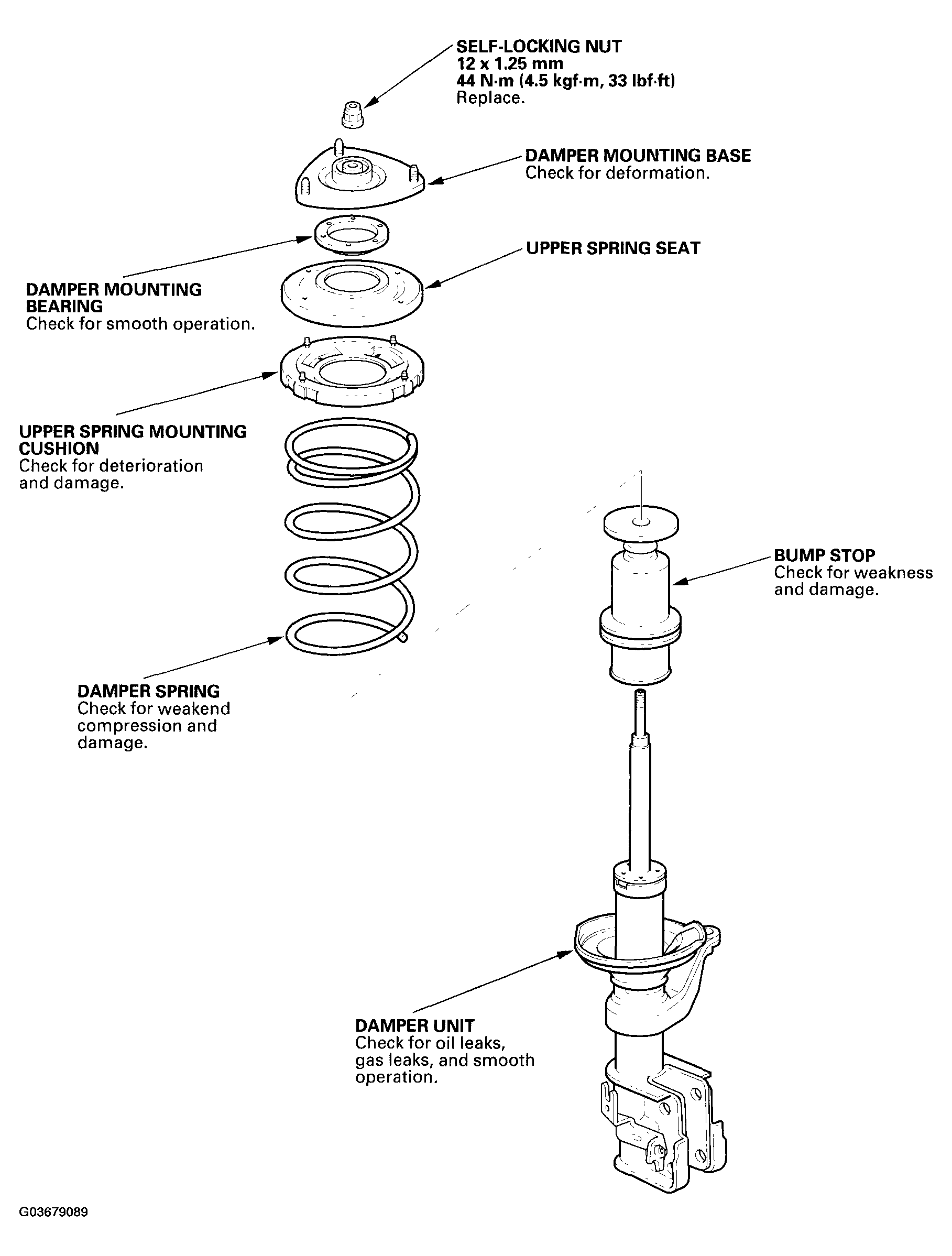

Fig 1: Exploded View Of Damper/Spring And Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball joint thread protector, 12mm 07AAF-SDAA100
Ball joint remover, 28 mm 07MAC-SL0A202

NOTE: When compressing the damper spring, use a commercially available strut spring compressor (Branick MST-580A or Model 7200 or equivalent). According to the manufacturer's instructions.
