Element DX, 2.4 YH2, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel And Emissions Systems
>>
System Description
>>
ECM/PCM Electrical Connections
ECM/PCM Electrical Connections

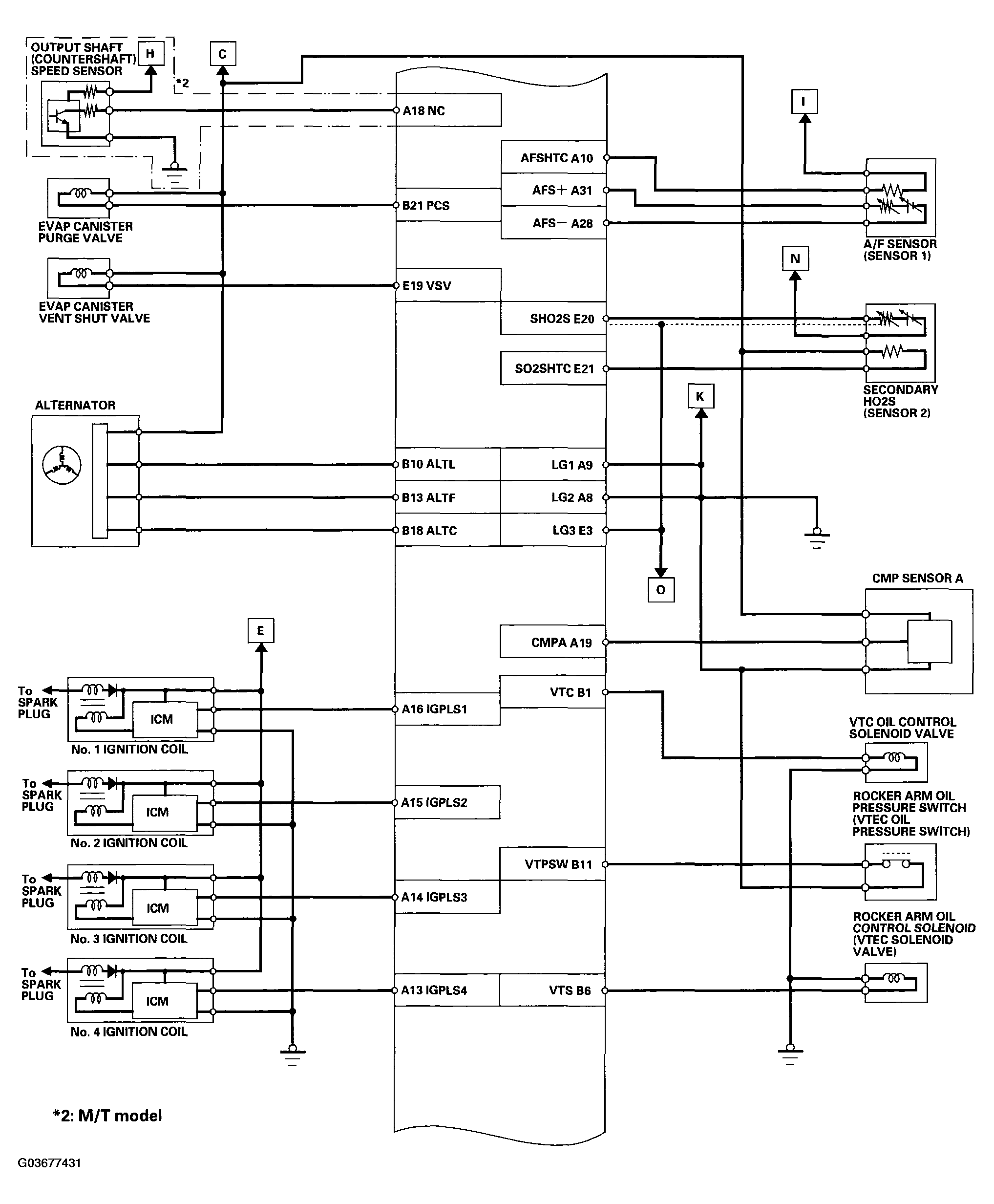

Fig 1: ECM/PCM Electrical Connections Wiring Diagram (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

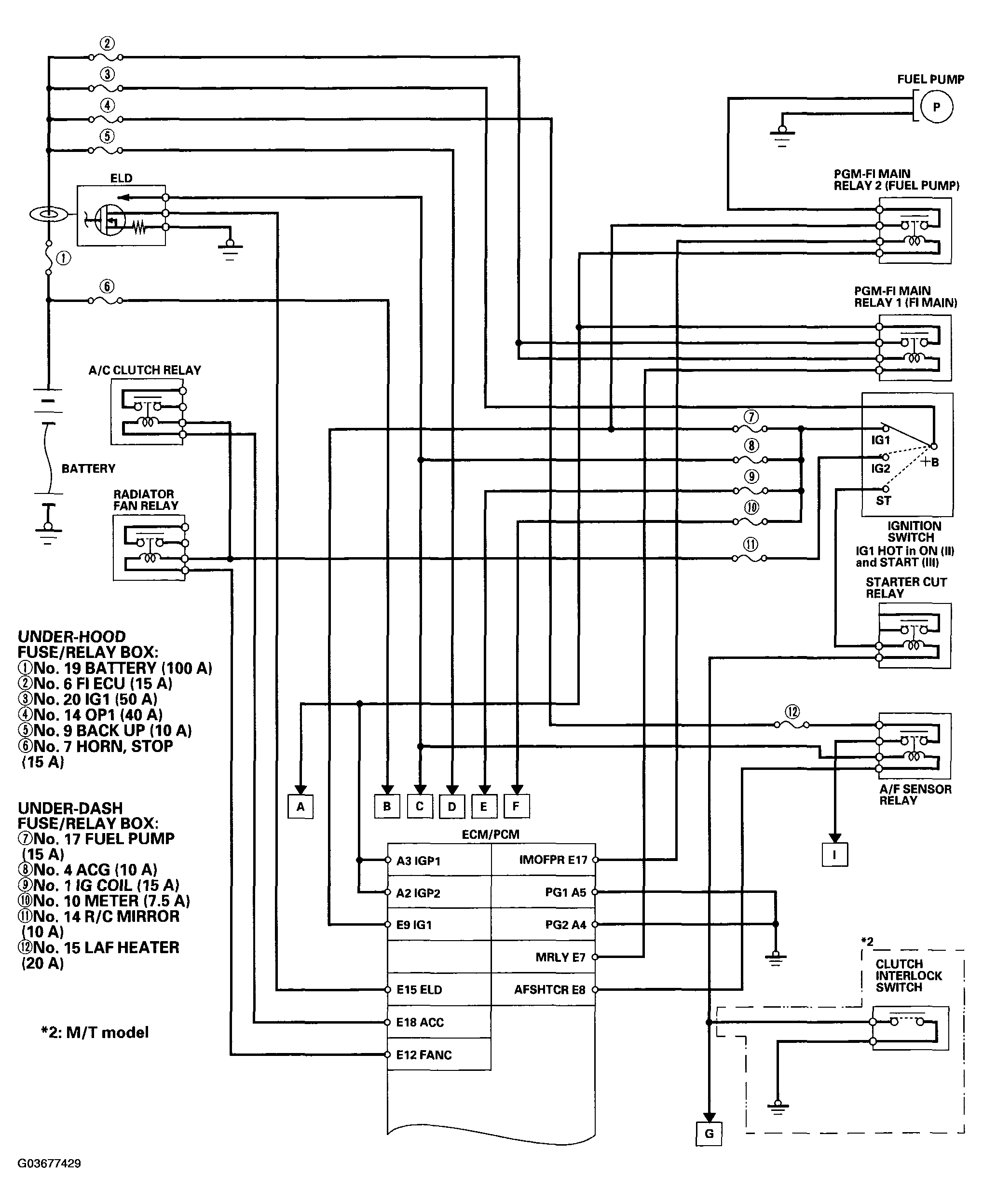

Fig 2: ECM/PCM Electrical Connections Wiring Diagram (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

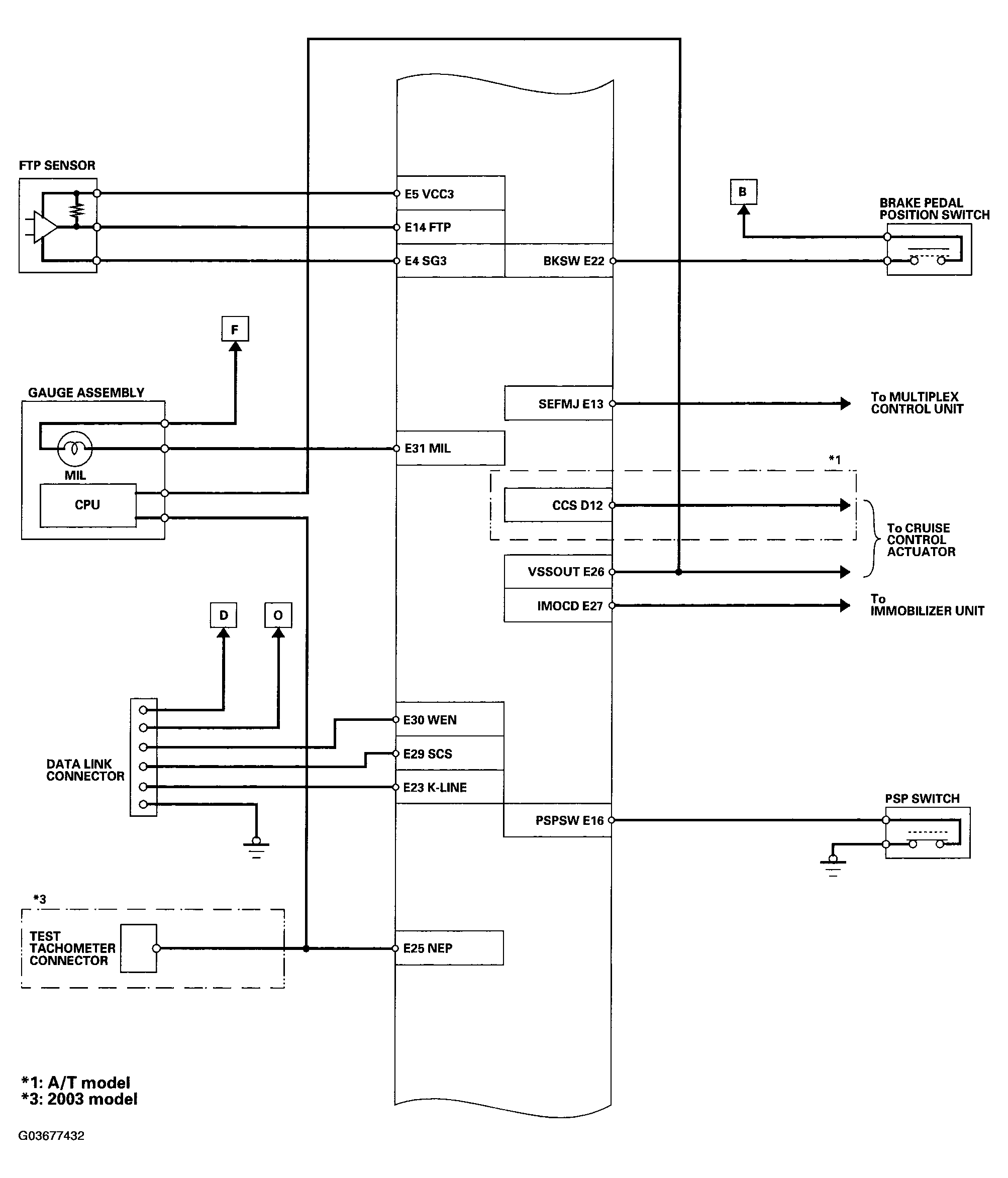

Fig 3: ECM/PCM Electrical Connections Wiring Diagram (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

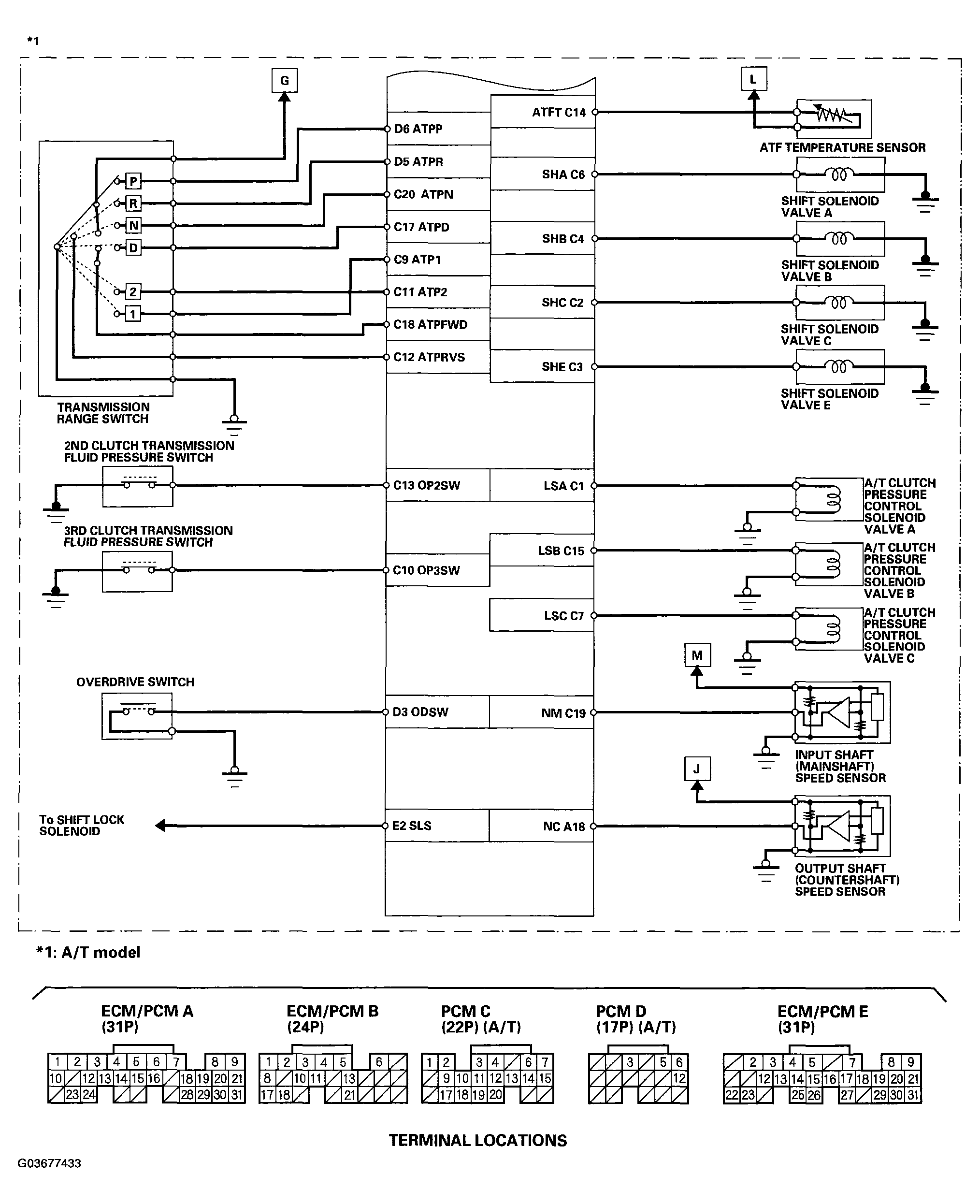

Fig 4: ECM/PCM Electrical Connections Wiring Diagram (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

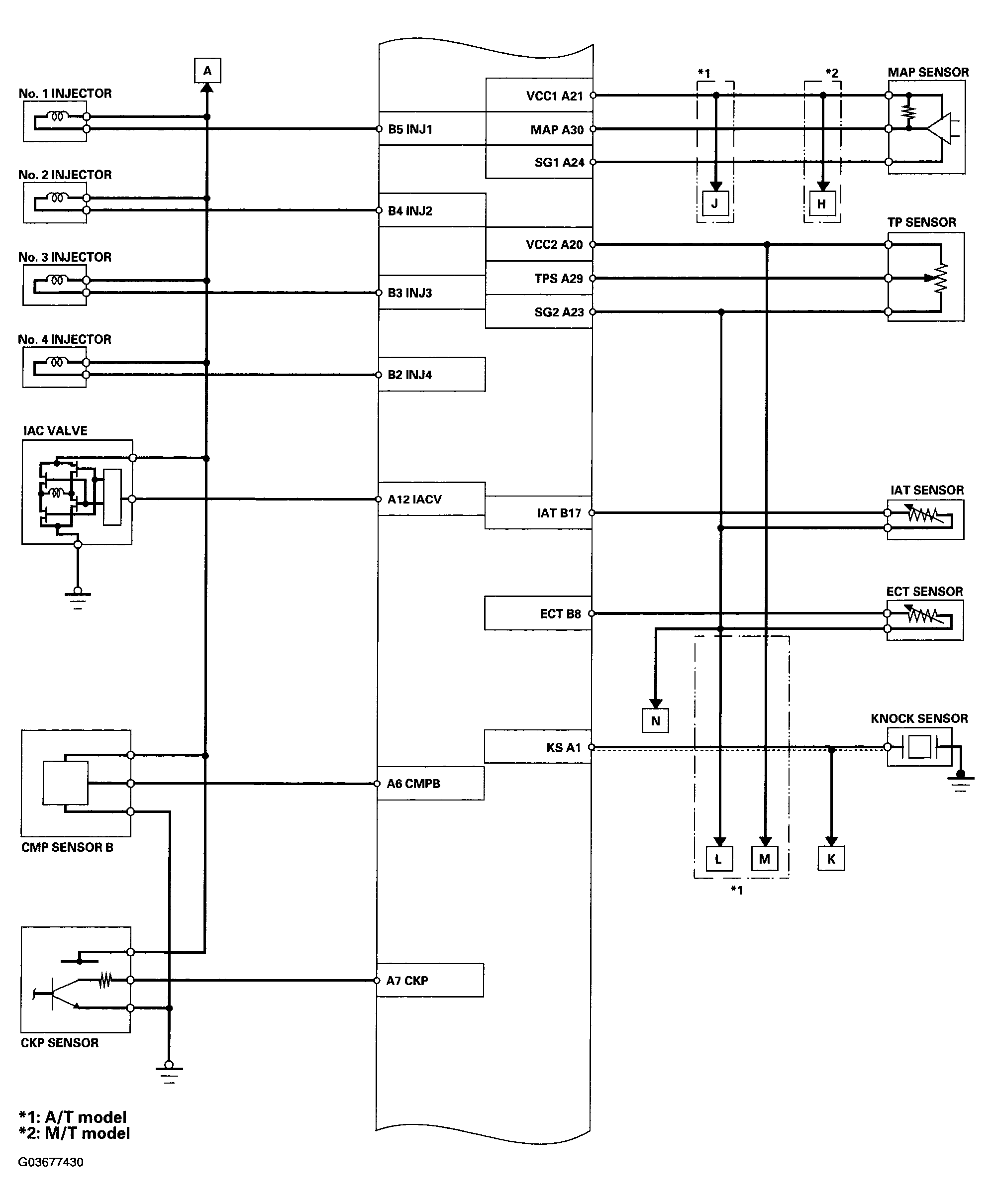

Fig 5: ECM/PCM Electrical Connections Wiring Diagram (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
