Automatic Transmission
>>
Transmission End Cover
>>
End Cover Removal
>>
Exploded View - 4WD Model
Exploded View - 4WD Model

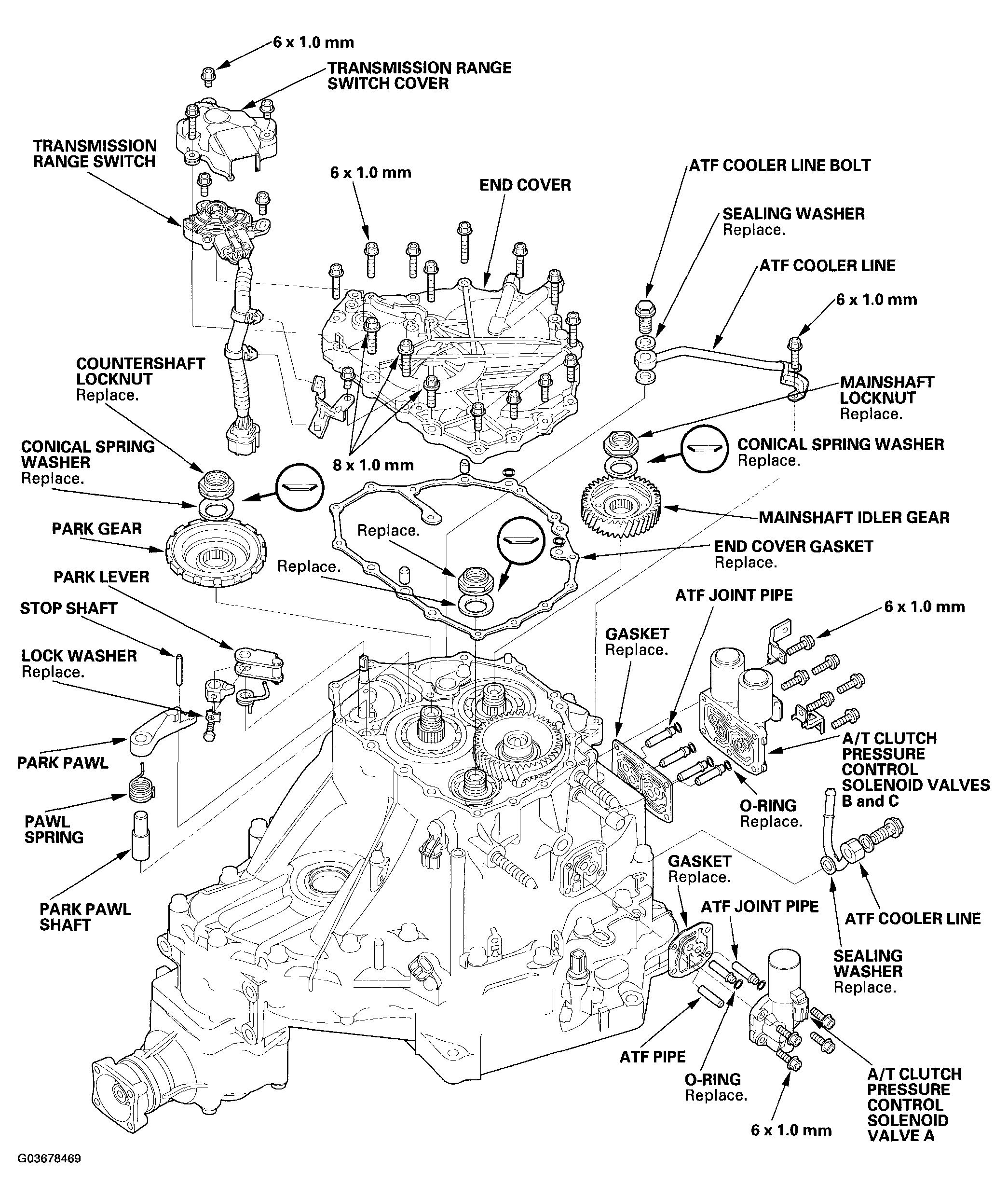

Fig 1: Exploded View Of Transmission End Cover (4WD Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
