Transfer Assembly Removal

  1. Raise the vehicle, and make sure it is supported securely.
  2. Remove the drain plug (A), and drain the automatic transmission fluid (ATF). Reinstall the drain plug with a new sealing washer (B).

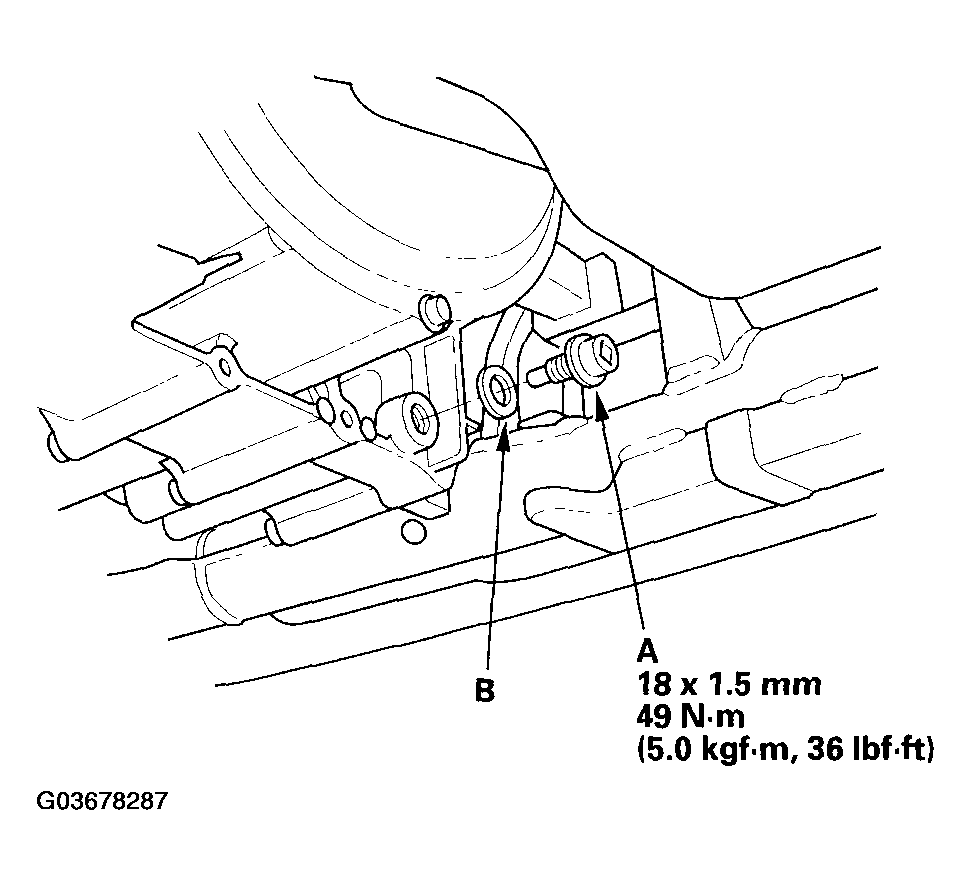

    Fig 1: Identifying Loosening Torque Of Drain Plug
    G03678287Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

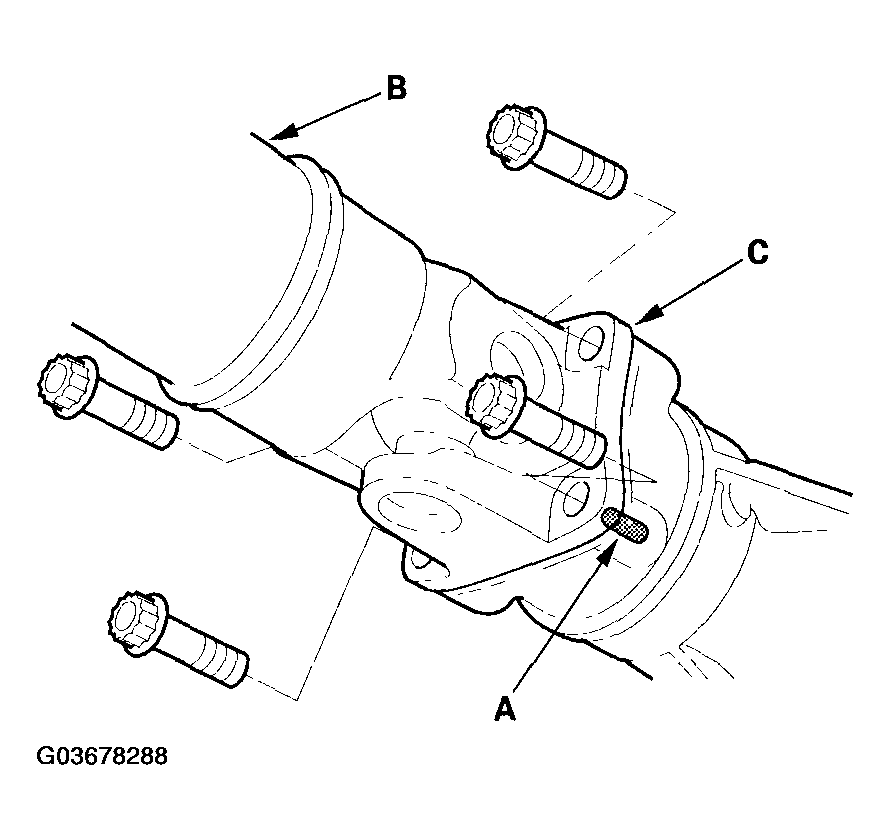

    Fig 2: Separating Propeller Shaft From Transfer Assembly
    G03678288Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Separate the propeller shaft from the transfer assembly.
  5. Remove the transfer assembly.

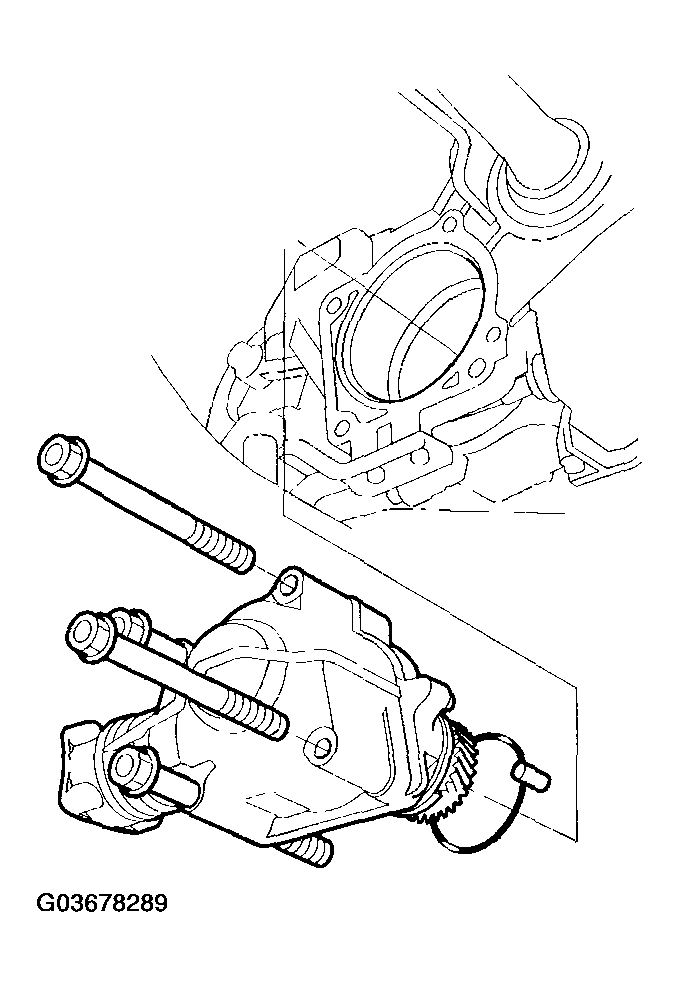

    Fig 3: Removing Transfer Assembly
    G03678289Courtesy of AMERICAN HONDA MOTOR CO., INC.
