Element DX, 2.4 YH2, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
System Description
>>
Transmission Cutaway View
Transmission Cutaway View
NOTE:
The illustration shows 4WD model; 2WD model does not have the transfer mechanism.

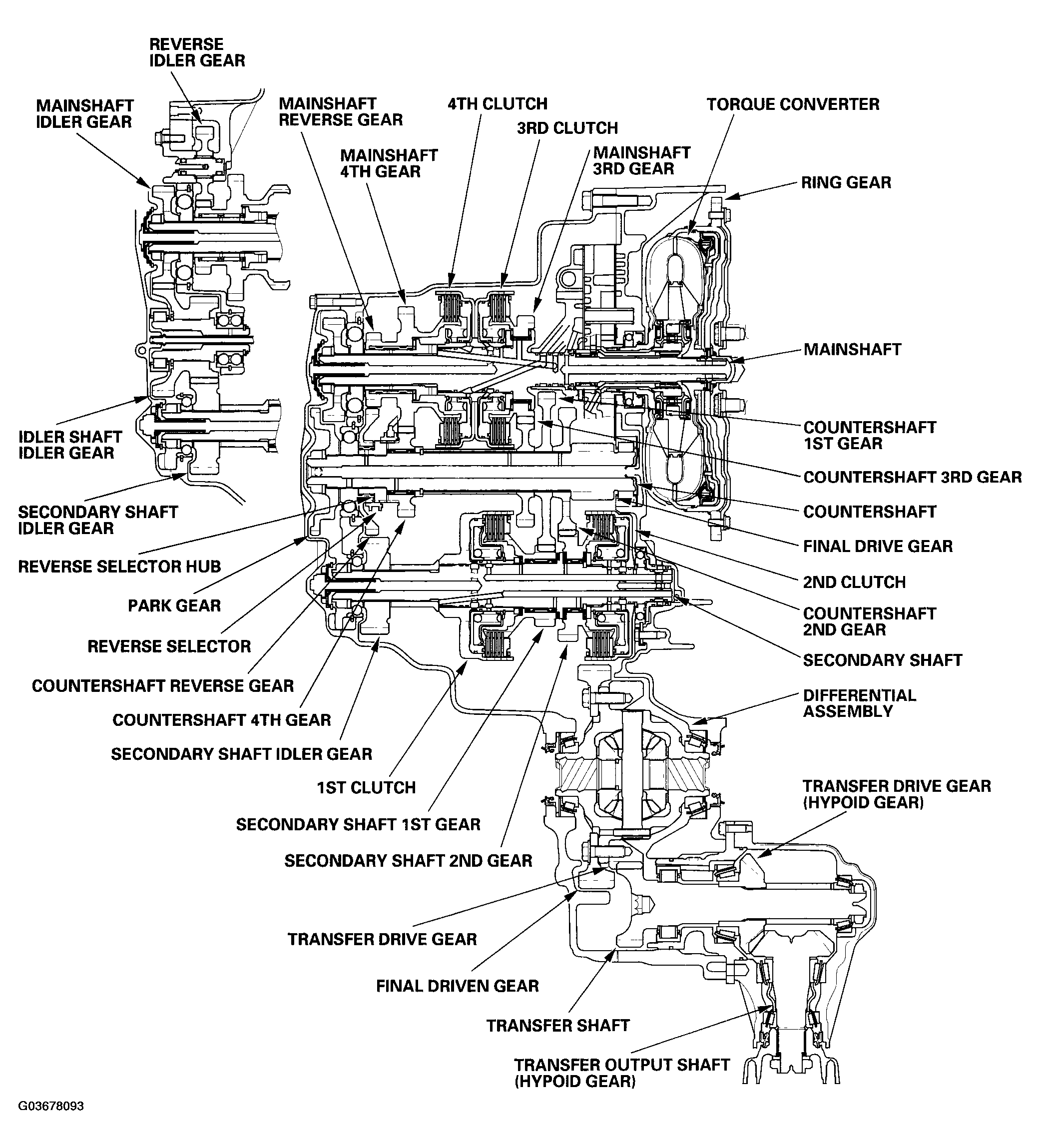

Fig 1: Transmission Cutaway View (4WD Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
