P Position

The PCM turns shift solenoid valves B and E ON, and A and C OFF. Line pressure (1) flows to the shift solenoid valves and the A/T clutch pressure control solenoid valve A. Line pressure (3) changes to (3') at shift valve E, and flows to the servo valve. The servo valve is moved to reverse/park position. Hydraulic pressure is not applied to the clutches.

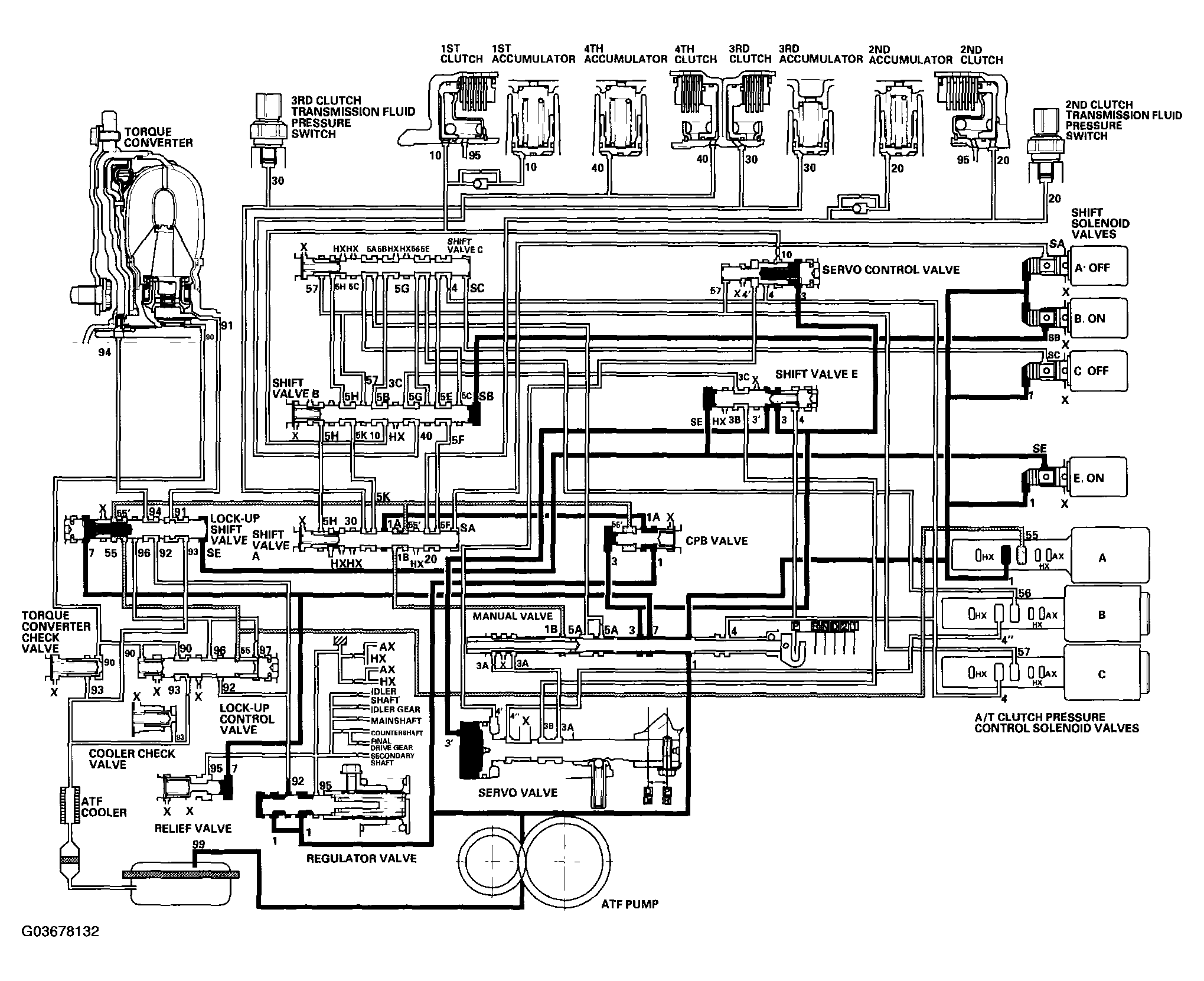

Fig 1: Identifying Hydraulic Flow - P Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.
