2 Position

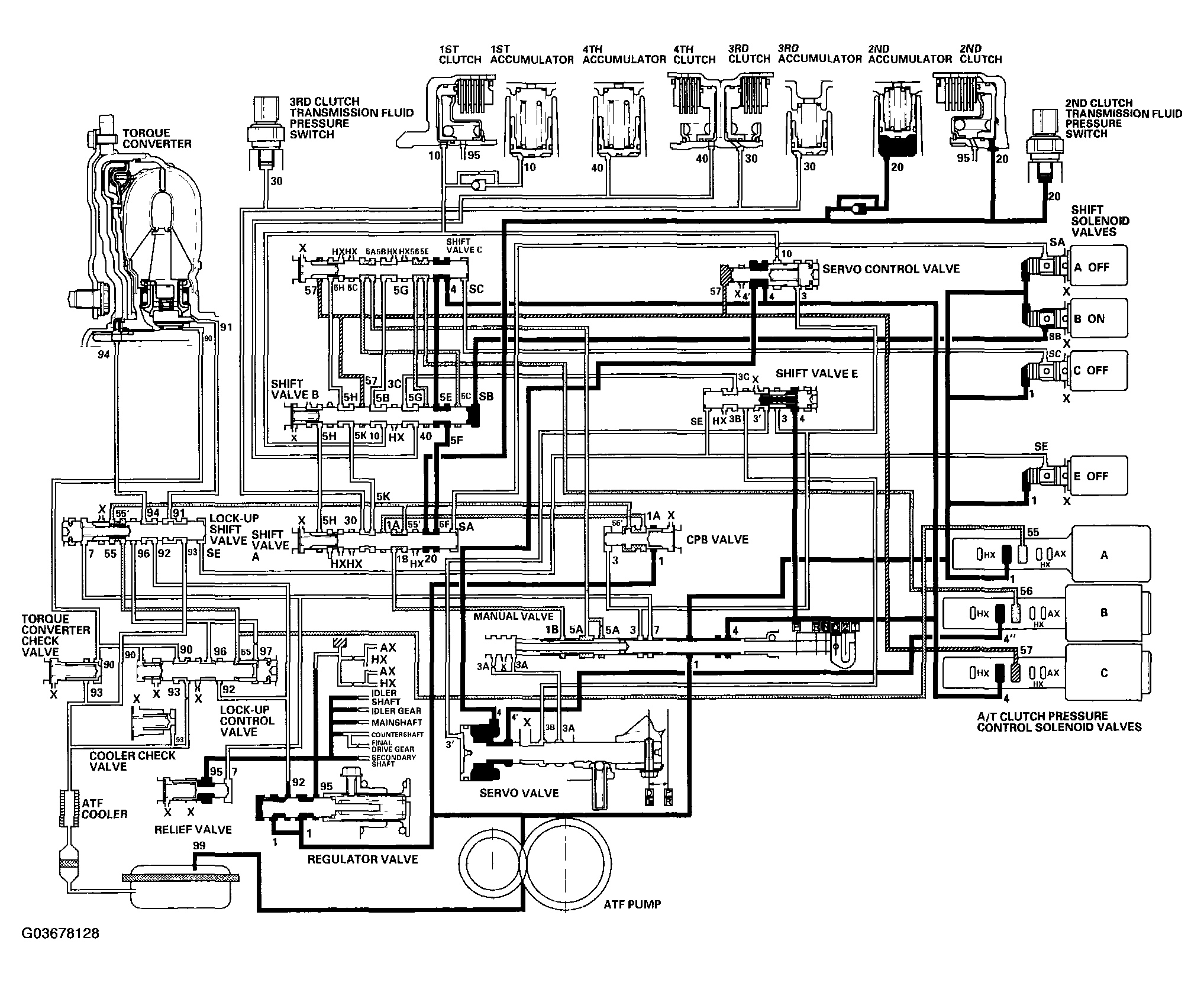

The PCM controls the shift solenoid valves. The conditions of the shift solenoid valves and positions of the shift valves are as follows:
- Shift solenoid valve A: OFF Shift valve A stays on in the right side
- Shift solenoid valve B: ON Shift valve B moves to left side
- Shift solenoid valve C: OFF Shift valve C stays on in the right side
- Shift solenoid valve E: OFF Shift valve E stays on in the left side
Line pressure (1) changes (4) at the manual valve, and flows to shift valve C. Line pressure (4) becomes the 2nd clutch pressure (20) at shift valve A.
Fluid Flows to 2nd clutch by way of:
Line pressure (1) --> Manual valve-Line pressure (4) --> Shift valve C-Line pressure (5E) --> Shift valve B-Line pressure (5F) --> Shift valve A-2nd clutch pressure (20) --> 2nd clutch
The 2nd clutch pressure (20) is applied to the 2nd clutch, and the 2nd clutch is engaged.
NOTE:
When used, "left" or "right" indicates direction on the hydraulic circuit.
