1 Position

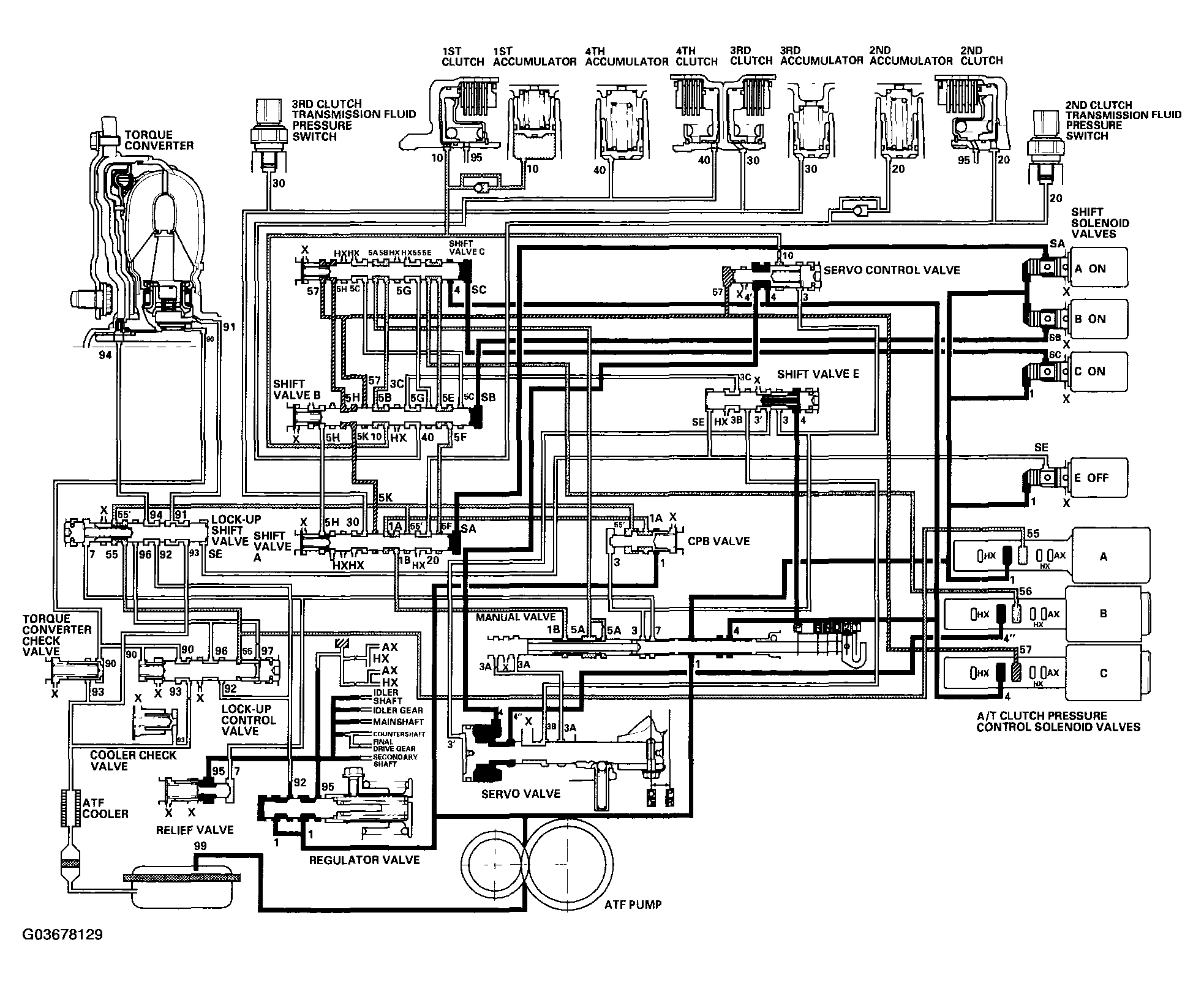

The PCM controls the shift solenoid valves. The conditions of the shift solenoid valves and positions of the shift valves are as follows:
- Shift solenoid valve A: ON Shift valve A moves to left side
- Shift solenoid valve B: ON Shift valve B moves to left side
- Shift solenoid valve C: ON Shift valve C moves to left side
- Shift solenoid valve E: OFF Shift valve E stays on in the left side
Line pressure (1) flows to the shift solenoid valves and A/T clutch pressure control solenoid valve A, and changes to A/T clutch pressure control solenoid pressure (55) at A/T clutch pressure control solenoid valve A.
Fluid Flows to 1st clutch by way of:
A/T clutch pressure control solenoid A pressure (55) --> CPB valve-Line pressure (1A) --> Shift valve A-Line pressure (1B) --> Manual valve-Line pressure (5A) --> Shift valve C-Line pressure (5B) --> Shift valve B-1st clutch pressure (10) --> 1st clutch
The 1st clutch pressure (10) is applied to the 1st clutch, and the 1st clutch is engaged.
NOTE:
When used, "left" or "right" indicates direction on the hydraulic circuit.
