Servo Body

The servo body contains the servo valve, the clutch pressure back-up (CPB) valve, accumulators for 2nd, 3rd, and 4th, and shift solenoid valves for A, B, C, and E.

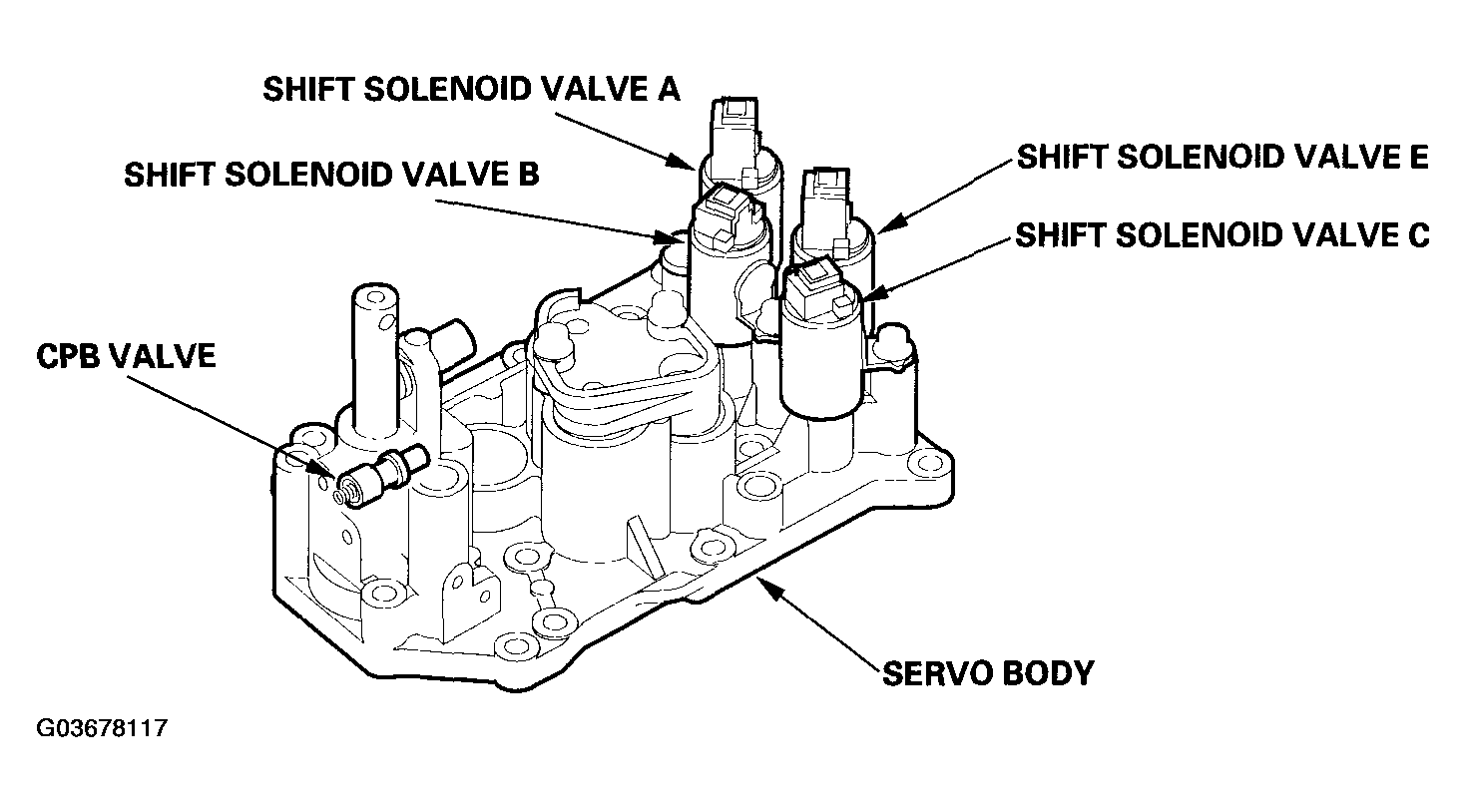

Fig 1: Identifying Servo Body Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
