Shift Cable Adjustment

Remove the center lower cover (see CENTER LOWER COVER REMOVAL/INSTALLATION ).
Shift the shift lever into the R position.

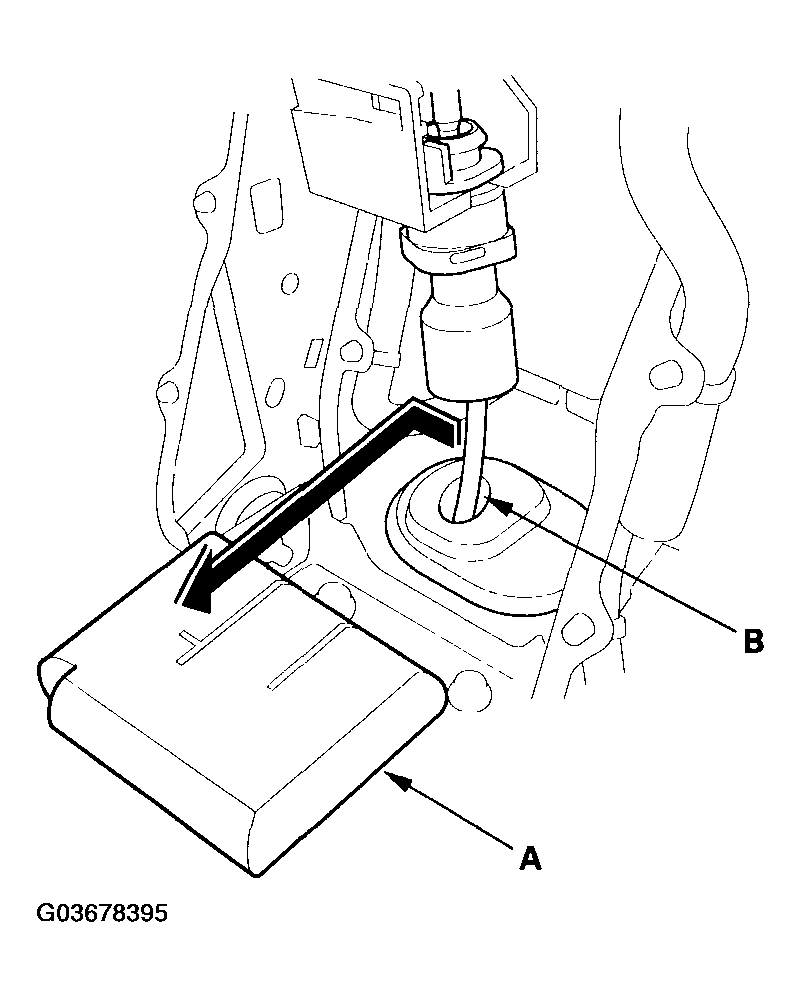

Remove the shift cable insulator (A) from the shift cable (B).

Fig 1: Removing Shift Cable Insulator From Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Slide the lock tab (A) down on the shift cable end holder (B).

Fig 2: Sliding Lock Tab Down On Shift Cable End Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

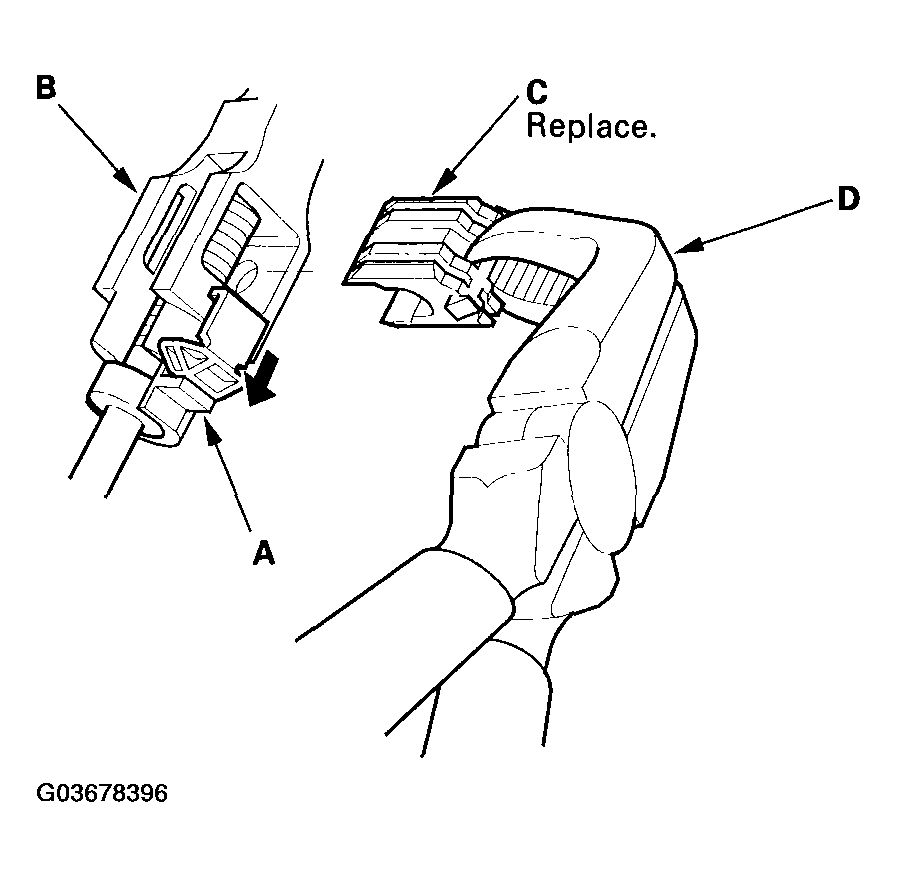

Grasp the shift cable lock (C) in the middle with angle-jaw needle-nose pliers (D), and remove it from the shift cable end and shift cable end holder. Do not pry the shift cable lock with a screwdriver, it may damage the shift cable end holder.
Separate the shift cable end (A) from the shift cable end holder (B).

Fig 3: Separating Shift Cable End From Shift Cable End Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be in the opening (D) of the shift cable bracket (E). Then slide the holder to remove the shift cable from the shift cable bracket. Do not remove the shift cable by twisting shift cable guide (F) and damper (G).

Fig 4: Removing Shift Cable From Shift Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the shift cable down until it stops, then release it. Pull the shift cable back one step so that the shift cable is in R. Do not hold the shift cable guide (A) to adjust the shift cable (B).

Fig 5: Identifying Shift Cable R Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II), and verify that the R position indicator comes on.
Turn the ignition switch OFF.
Insert a 6.0 mm (0.24 in.) pin (A) into the positioning hole (B) on the shift lever bracket through the positioning hole on the shift lever. The shift lever is secured in the R position.

Fig 6: Inserting 6.0 MM (0.24 In.) Pin Into Positioning Hole On Shift Lever Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the socket holder (A) on the shift cable (B) to face the tab (C) on the holder opposite the opening (D) in the shift cable bracket (E). Align the holder with the opening in the bracket, then slide the holder into the bracket. Rotate the holder a quarter turn to secure the shift cable. Do not install the shift cable by twisting the shift cable guide (F) and damper (G).

Fig 7: Rotating Socket Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the shift cable end (A) in the shift cable end holder (B). Keep the shift cable end and end holder free of grease.

Fig 8: Installing Shift Cable End In Shift Cable End Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

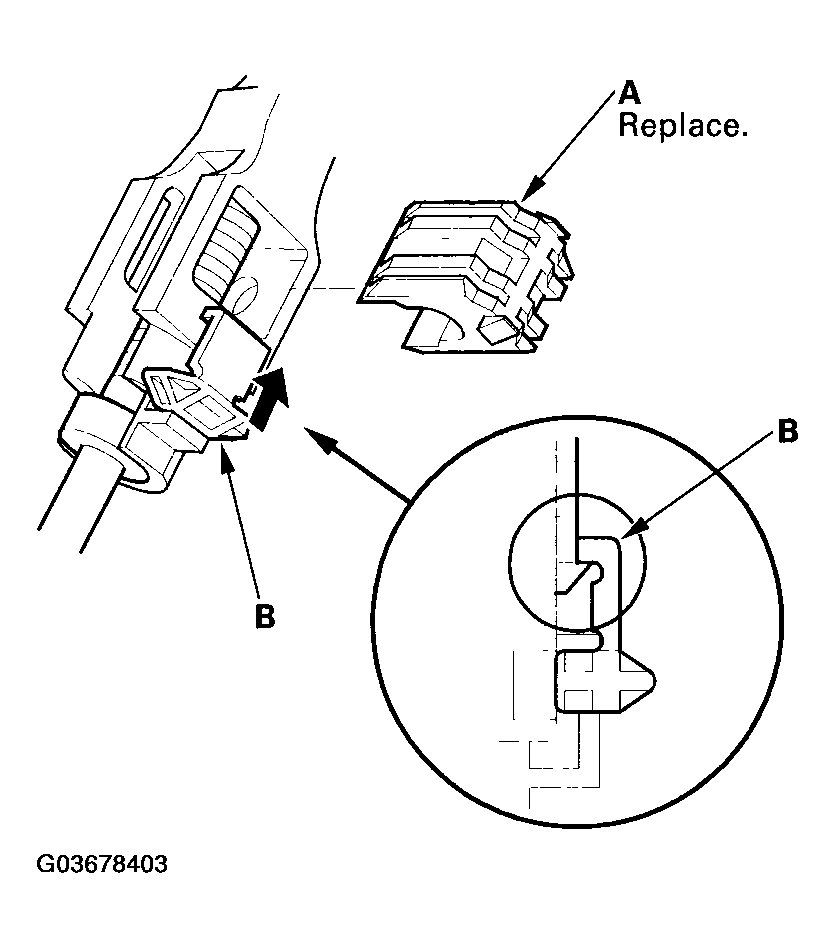

Install the new shift cable lock (A) to secure the shift cable end and shift cable end holder, then push the lock tab (B) up until it stops to lock joint.

Fig 9: Installing New Shift Cable Lock
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.

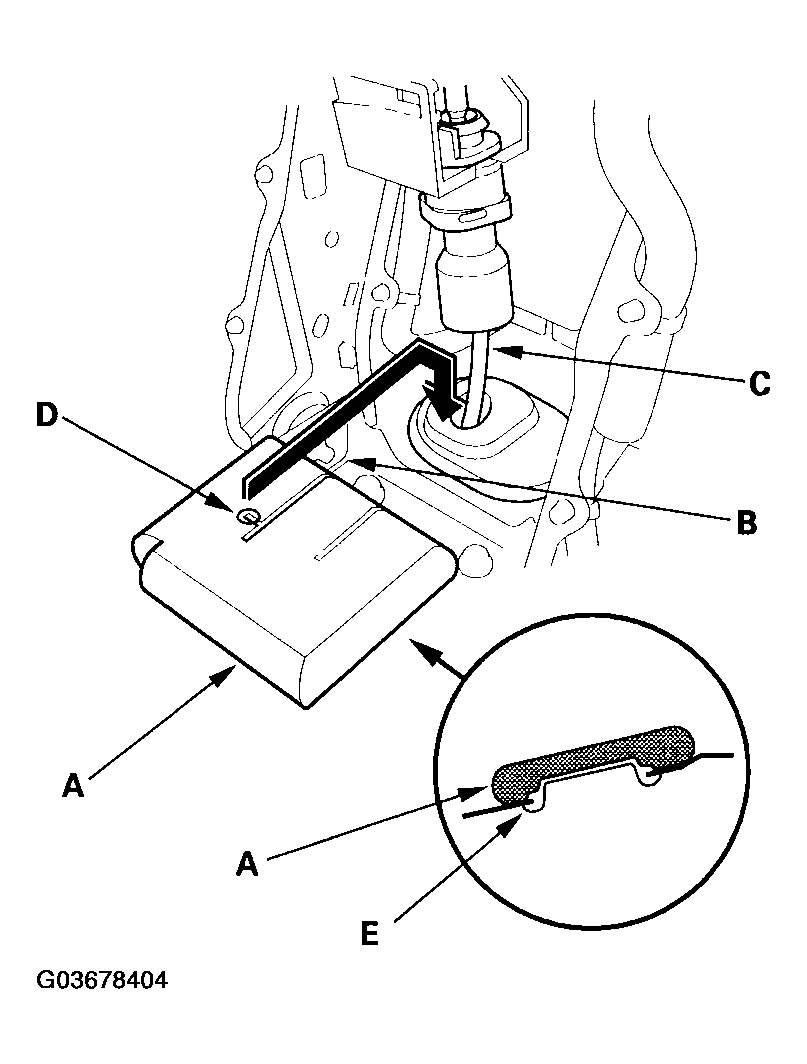

Install the shift cable insulator (A) along the slot (B) over the shift cable (C), and position the shift cable in the left end (D) of the slot.

Fig 10: Installing Shift Cable Insulator Along Slot Over Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the insulator down so that it covers the shift cable grommet (E).
Allow the wheels to rotate freely.
Start the engine, and move the shift lever to each position. Verify that the A/T gear position indicator follows the transmission range switch, and check the shift lever operation in all gear.
Install the center lower cover (see CENTER LOWER COVER REMOVAL/INSTALLATION ).
