Park Pin Switch Test

  1. Remove the shift lever console trim (see SHIFT LEVER TRIM REMOVAL/INSTALLATION ).
  2. Remove the shift lever mounting bolts.

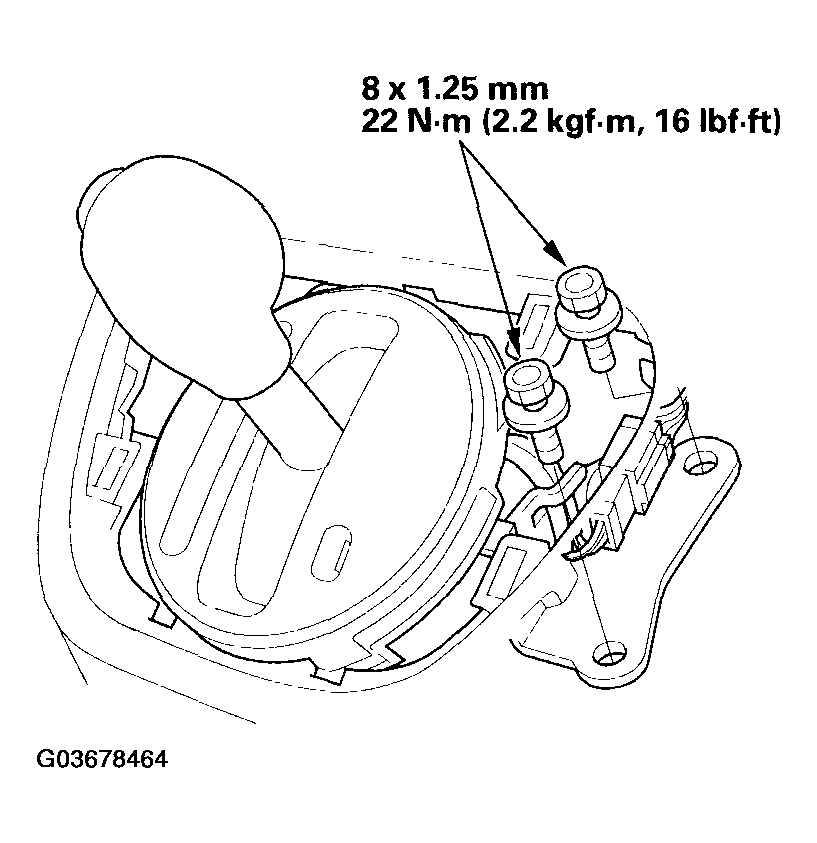

    Fig 1: Removing Shift Lever Mounting Bolts And Torque Specifications
    G03678464Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the park pin switch connector.

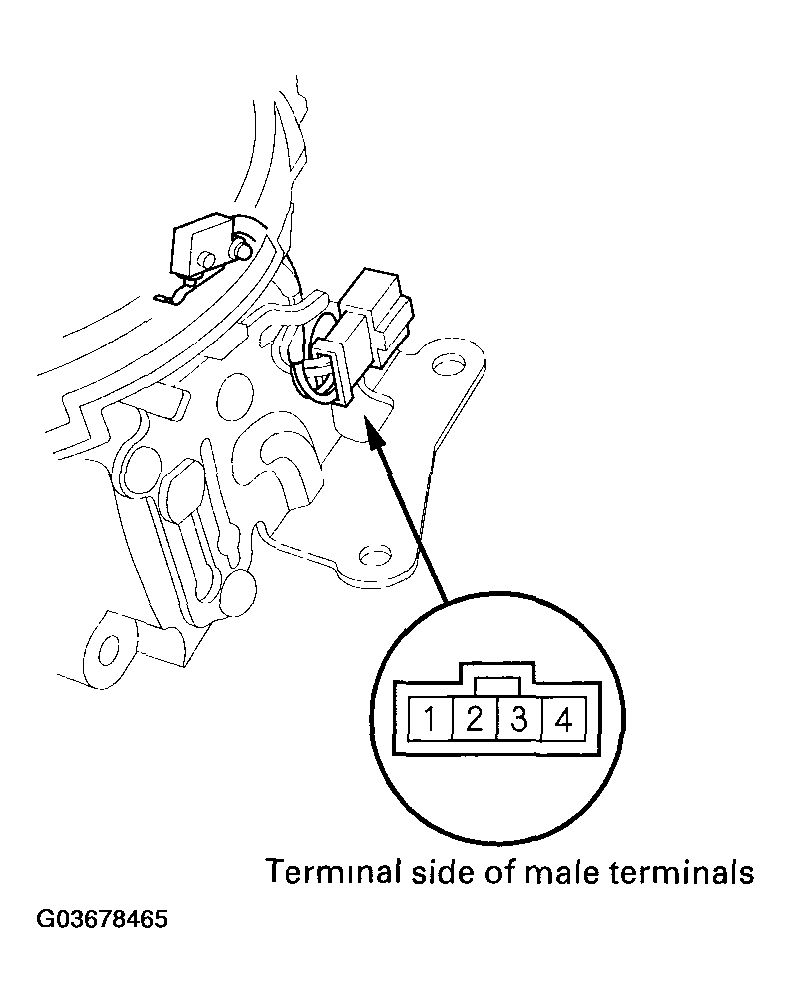

    Fig 2: Identifying Park Pin Switch Connector
    G03678465Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Shift the shift lever into the P position and release the shift lever button, then check for continuity between connector terminals No. 1 and No. 2. There should be no continuity.
  5. Shift out of the P position or press the shift lever button while in the P position, and check for continuity between connector terminals No. 1 and No. 2. There should be continuity.
  6. If the park pin switch is faulty, replace it.
