Circuit Diagram

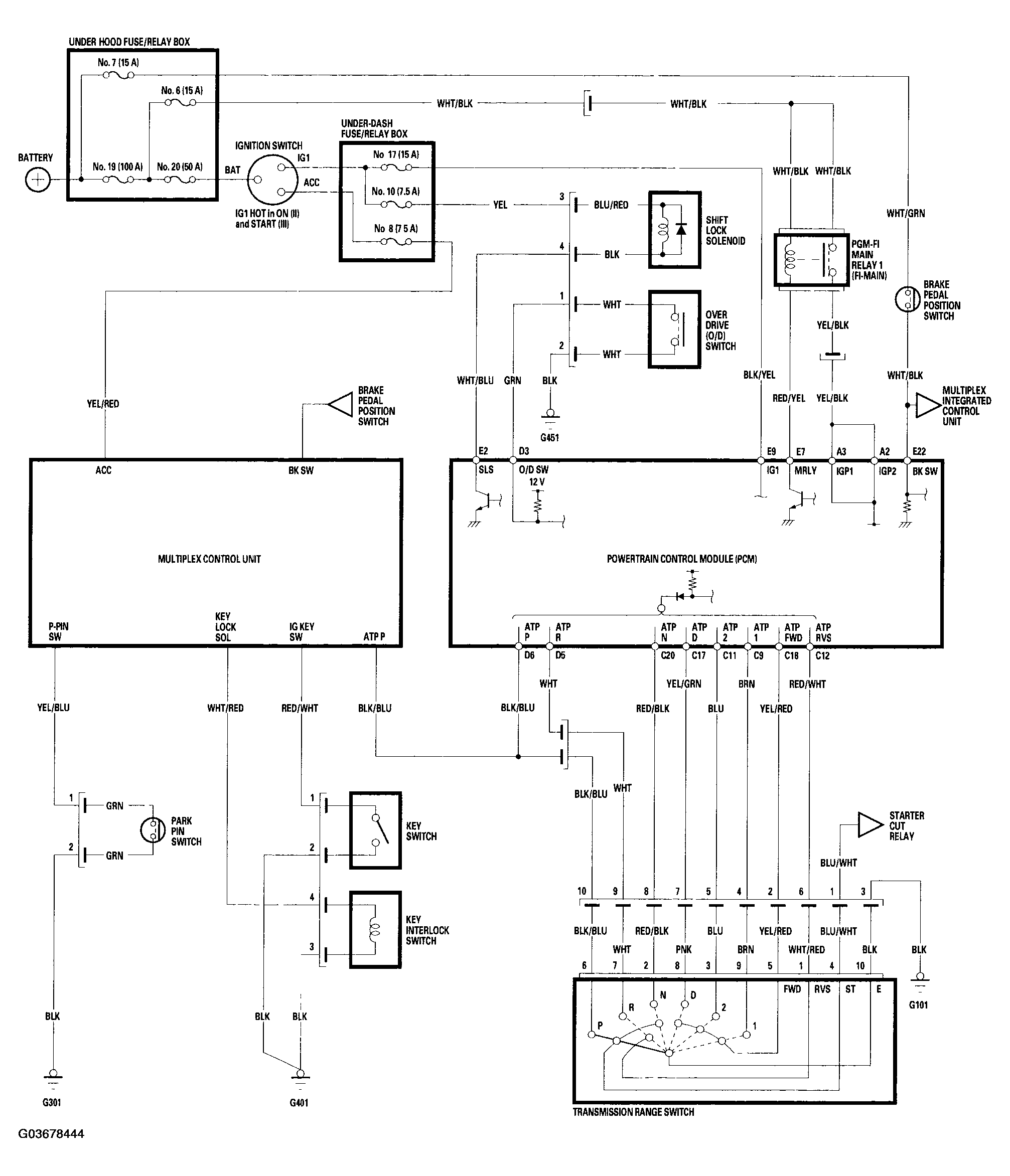

Fig 1: Circuit Diagram - A/T Interlock System
G03678444Courtesy of AMERICAN HONDA MOTOR CO., INC.
