4WD Model

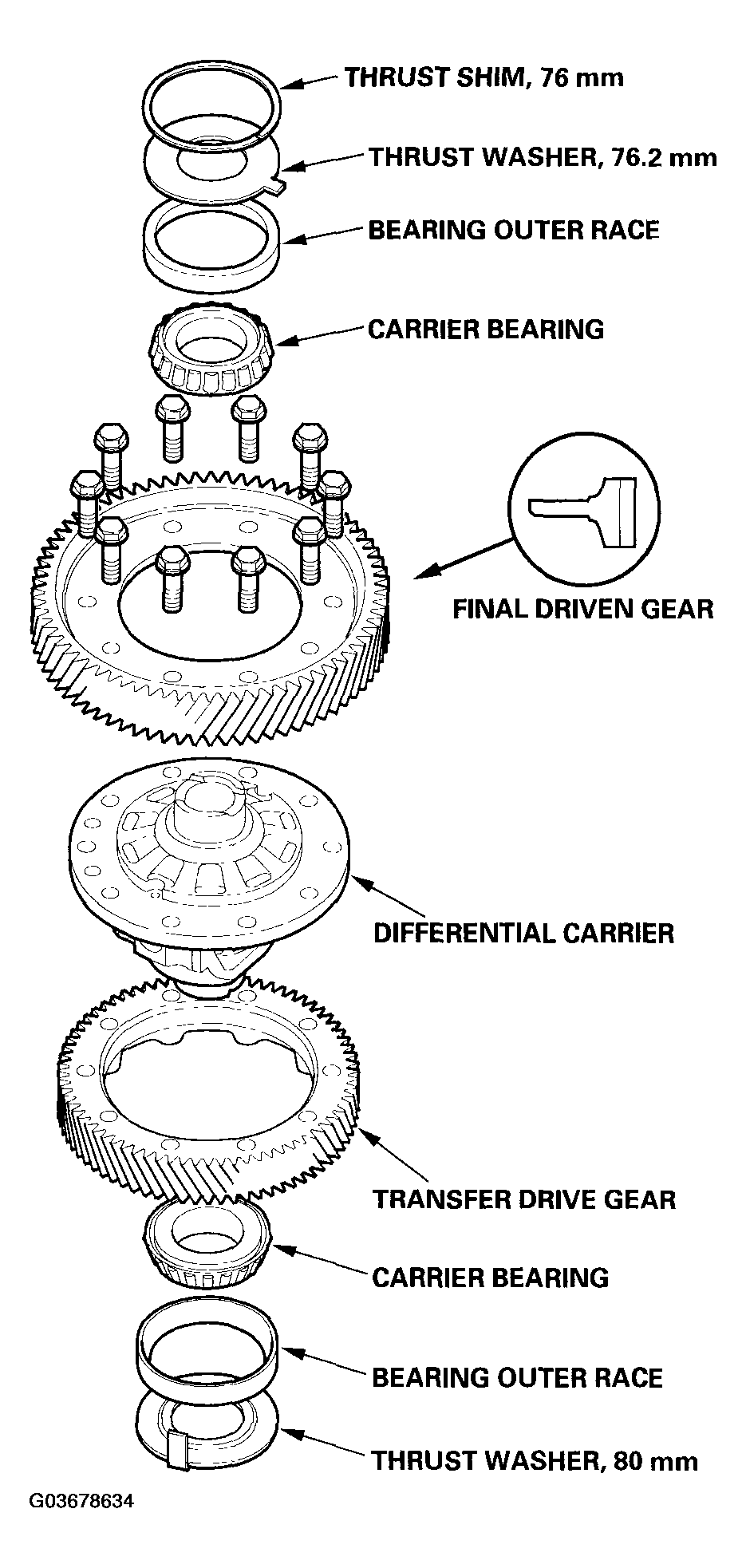

Fig 1: Exploded View Of A/T Differential (4Wd Model)

G03678634

Courtesy of AMERICAN HONDA MOTOR CO., INC.
