2WD Model

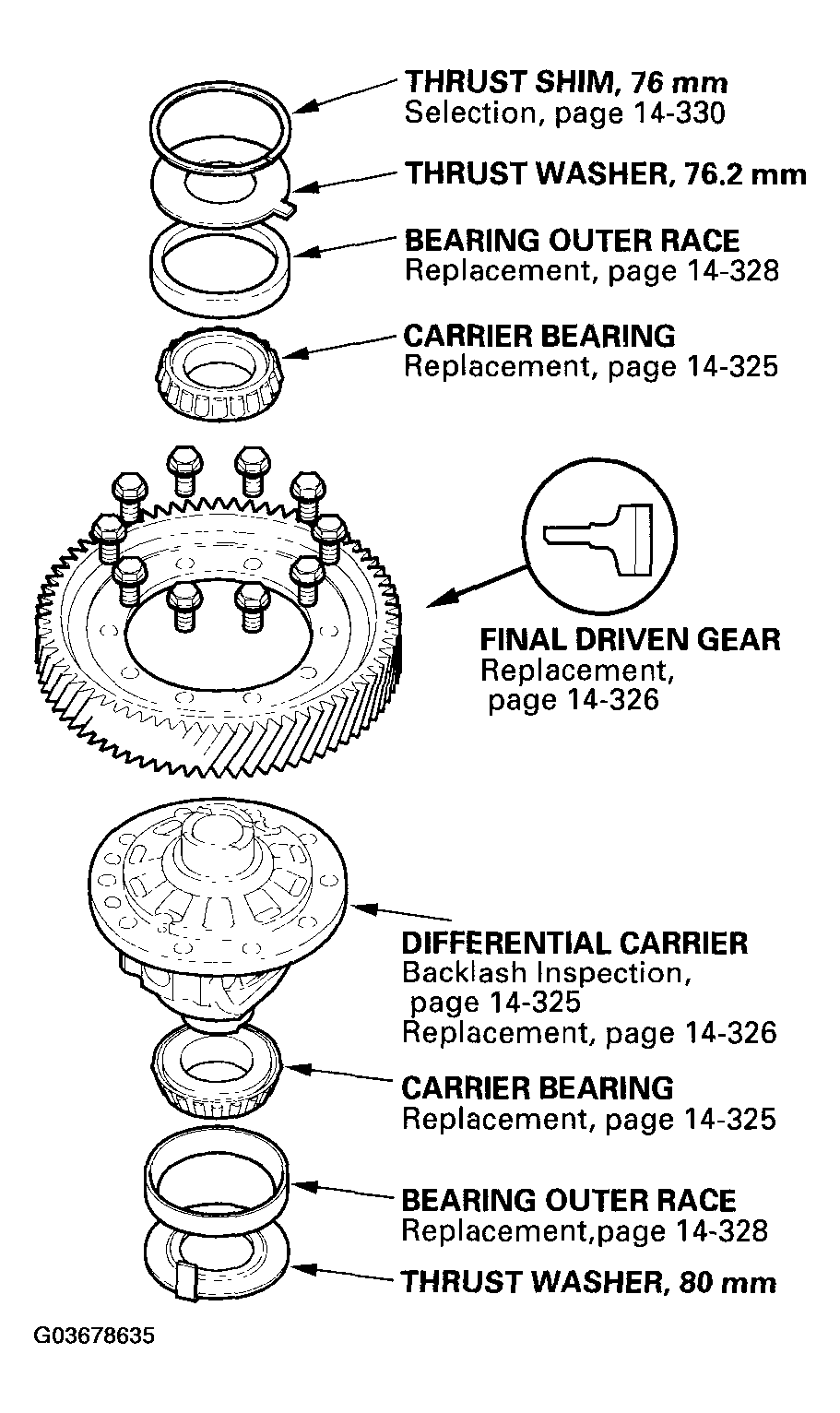

Fig 1: Exploded View Of A/T Differential (2Wd Model)

G03678635

Courtesy of AMERICAN HONDA MOTOR CO., INC.
