EVAP Canister Vent Shut Valve Replacement

  1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).
  2. Pry the lock tabs outward (A), then remove the EVAP canister vent shut valve (B).
    NOTE: Be careful not to damage the lock tabs.

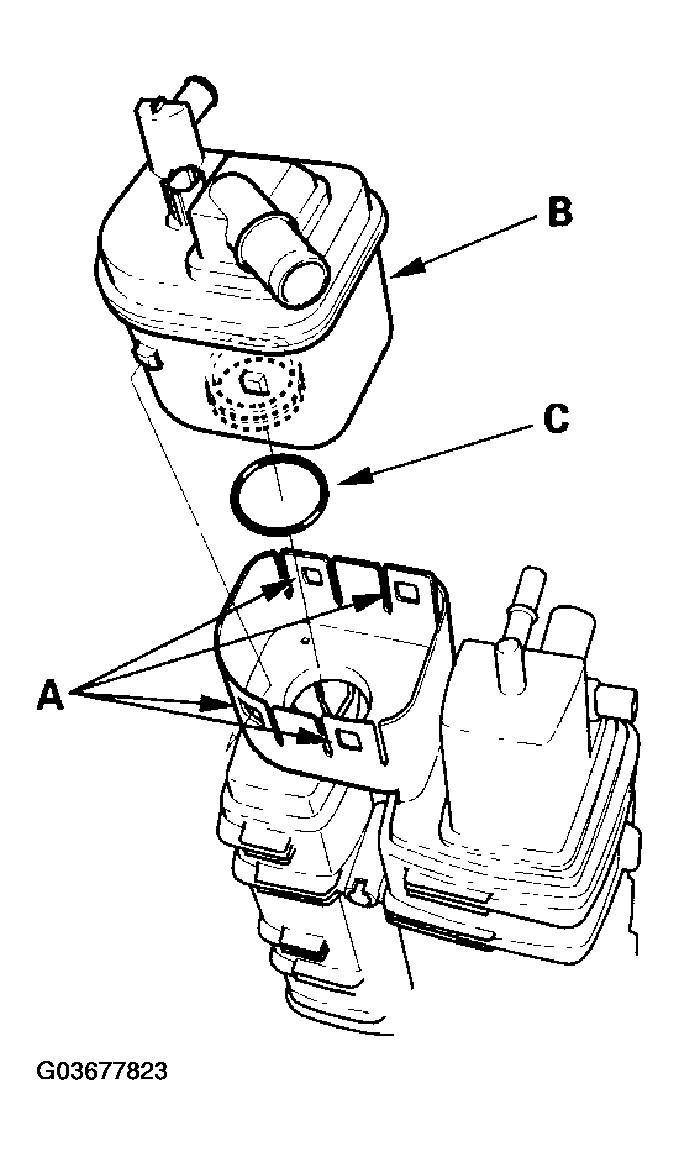

    Fig 1: Removing EVAP Canister Vent Shut Valve
    G03677823Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the valve in the reverse order of removal with a new O-ring (C).
    NOTE: Do not coat the O-ring with engine oil, etc.
