Throttle Body

The throttle body is a single-barrel side draft type. The lower portion of the idle air control (IAC) valve is heated by engine coolant from the cylinder head to prevent icing of the throttle plate.

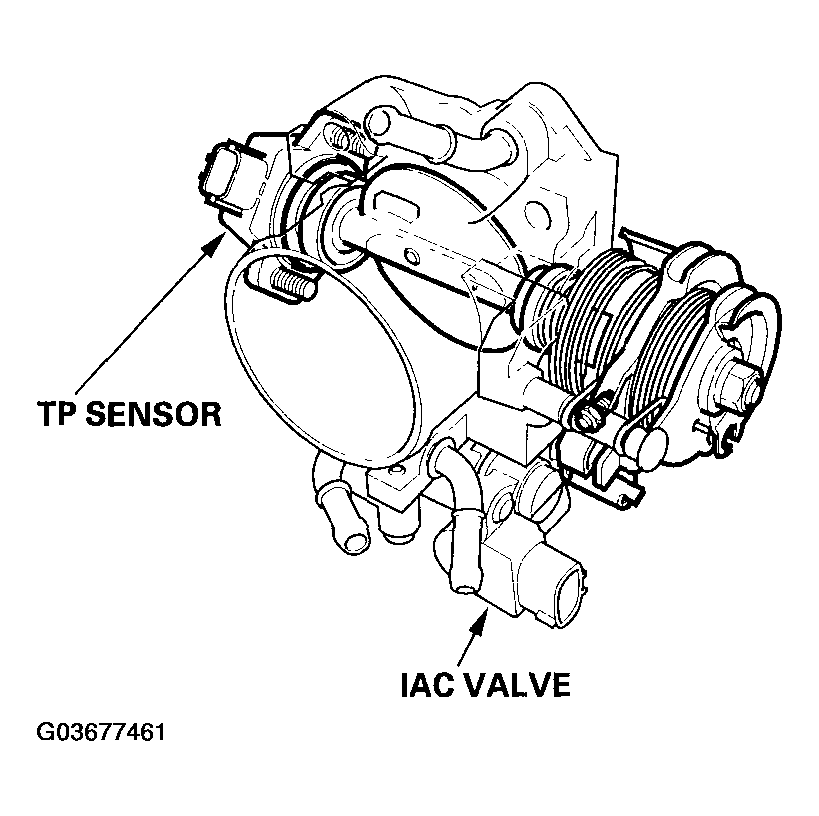

Fig 1: Identifying Throttle Valve Body

Courtesy of AMERICAN HONDA MOTOR CO., INC.
