ECM/PCM Circuit Diagram

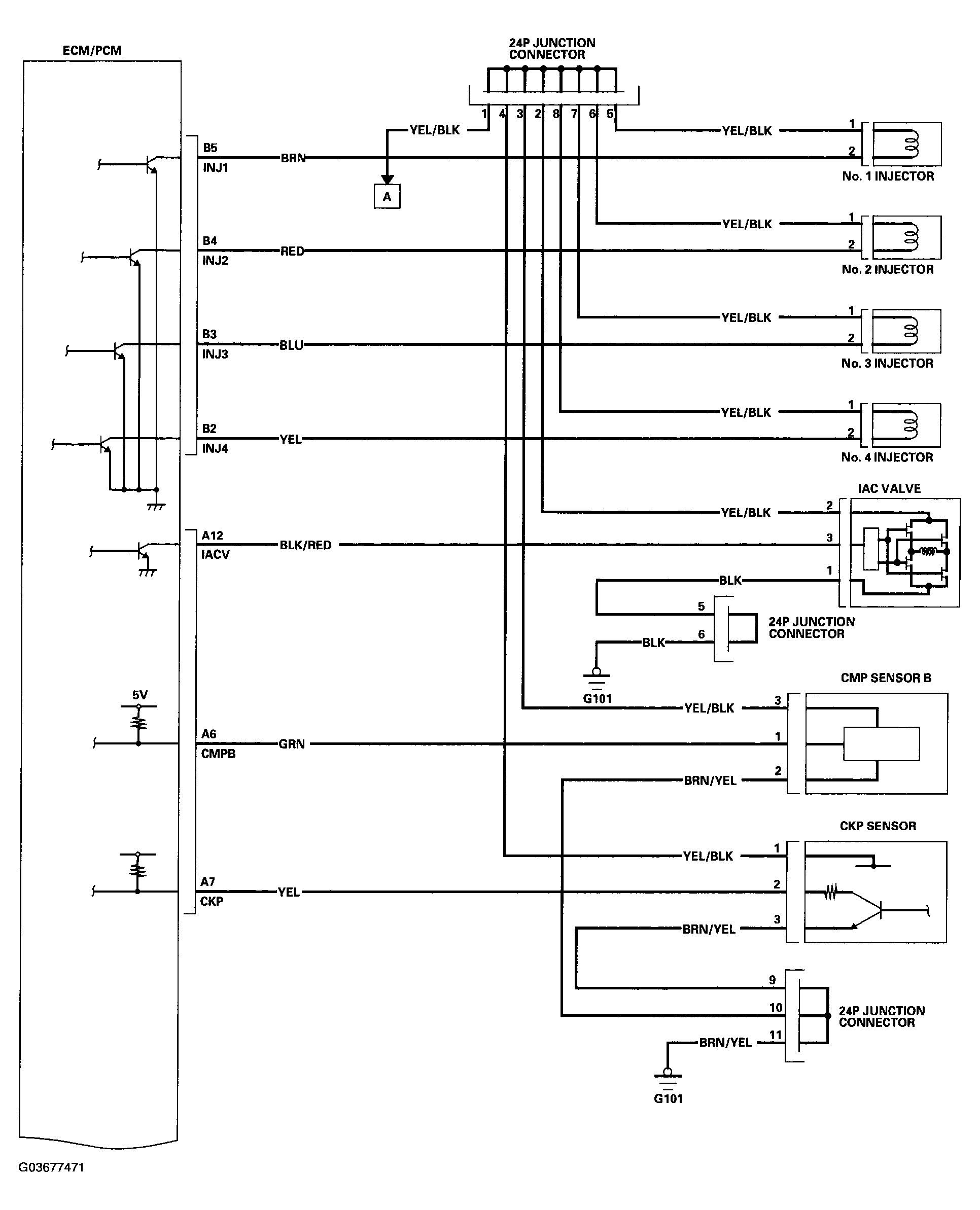

Fig 1: ECM/PCM Circuit Diagram (1 Of 10)

G03677471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

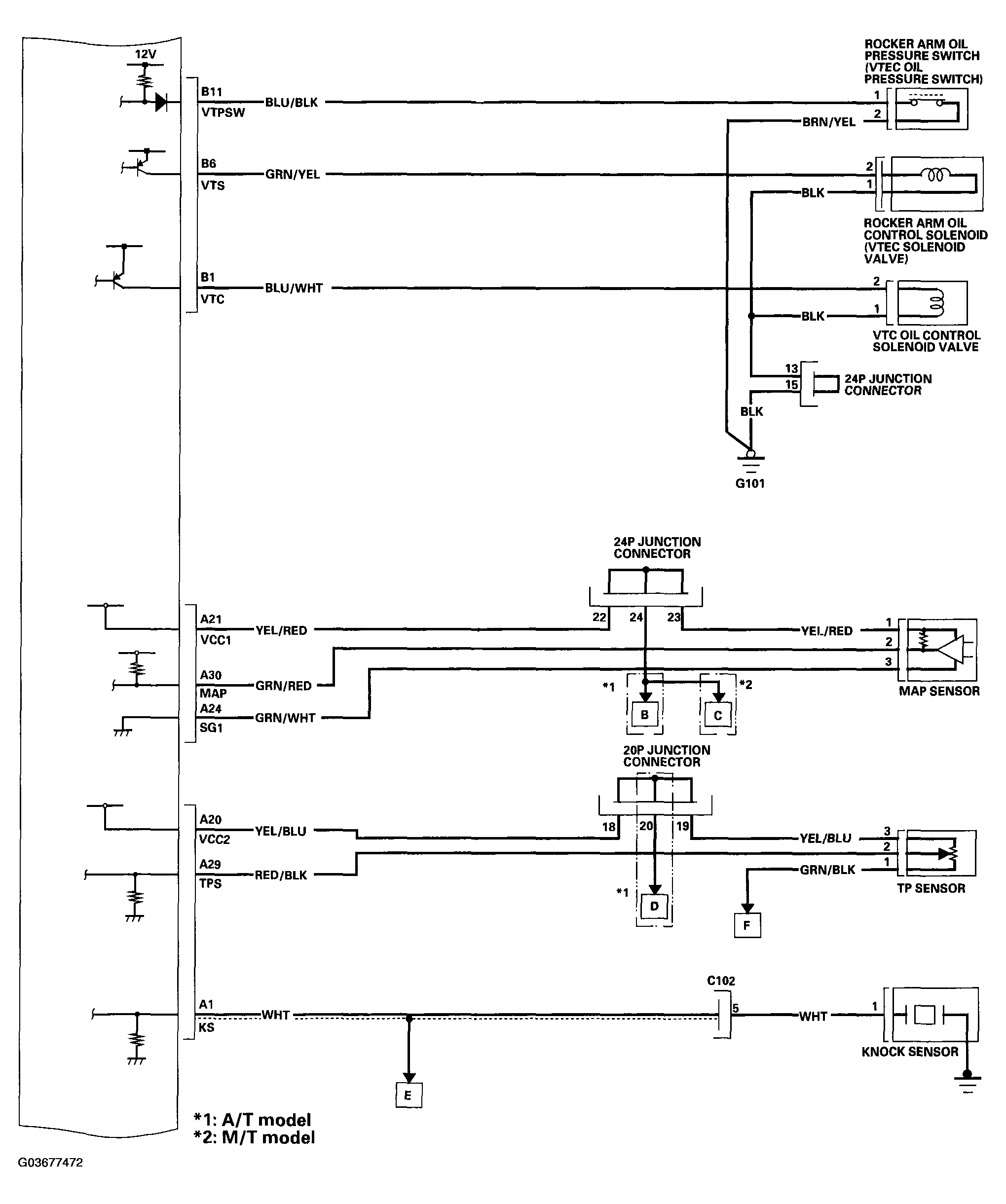

Fig 2: ECM/PCM Circuit Diagram (2 Of 10)

G03677472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

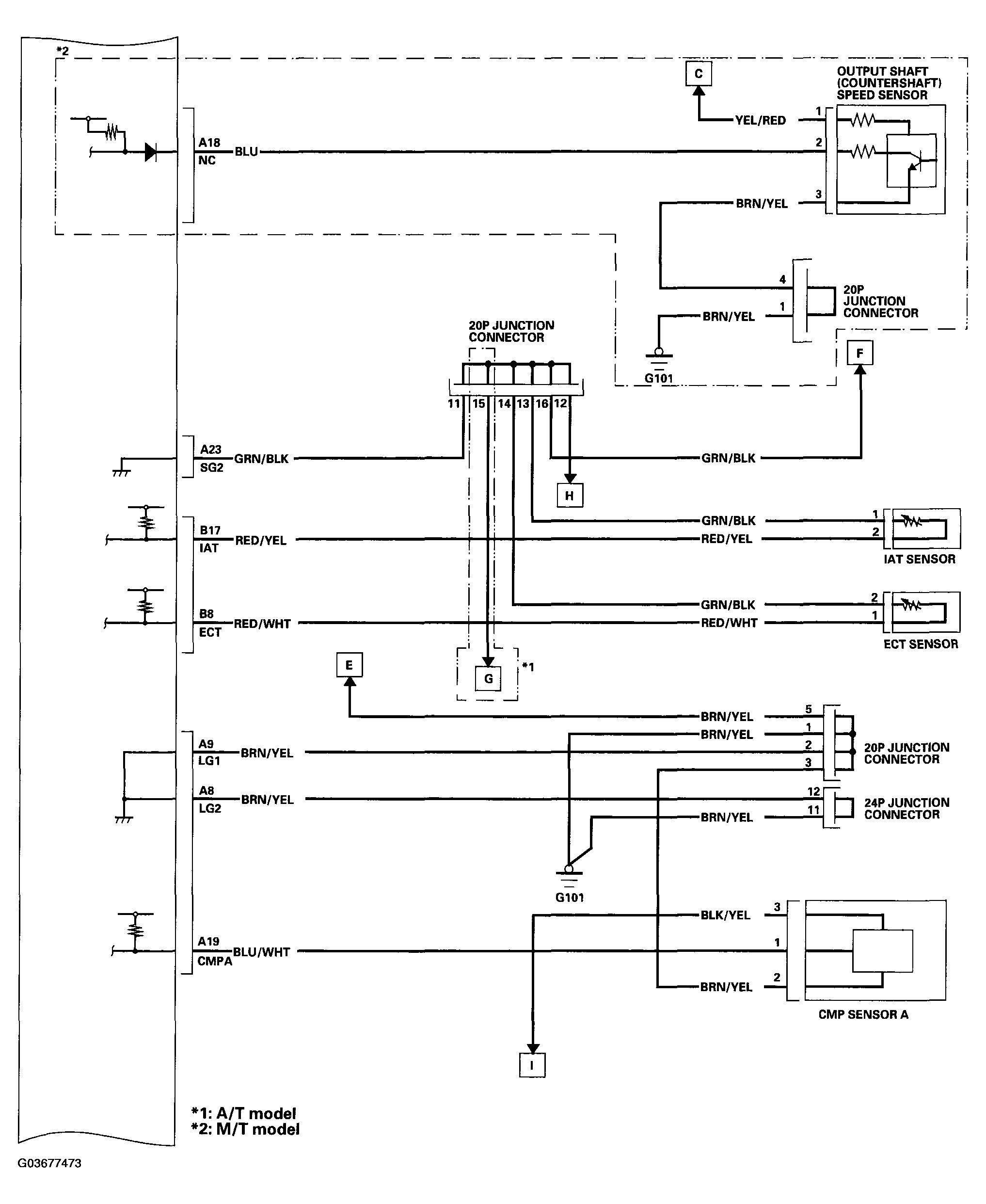

Fig 3: ECM/PCM Circuit Diagram (3 Of 10)

G03677473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

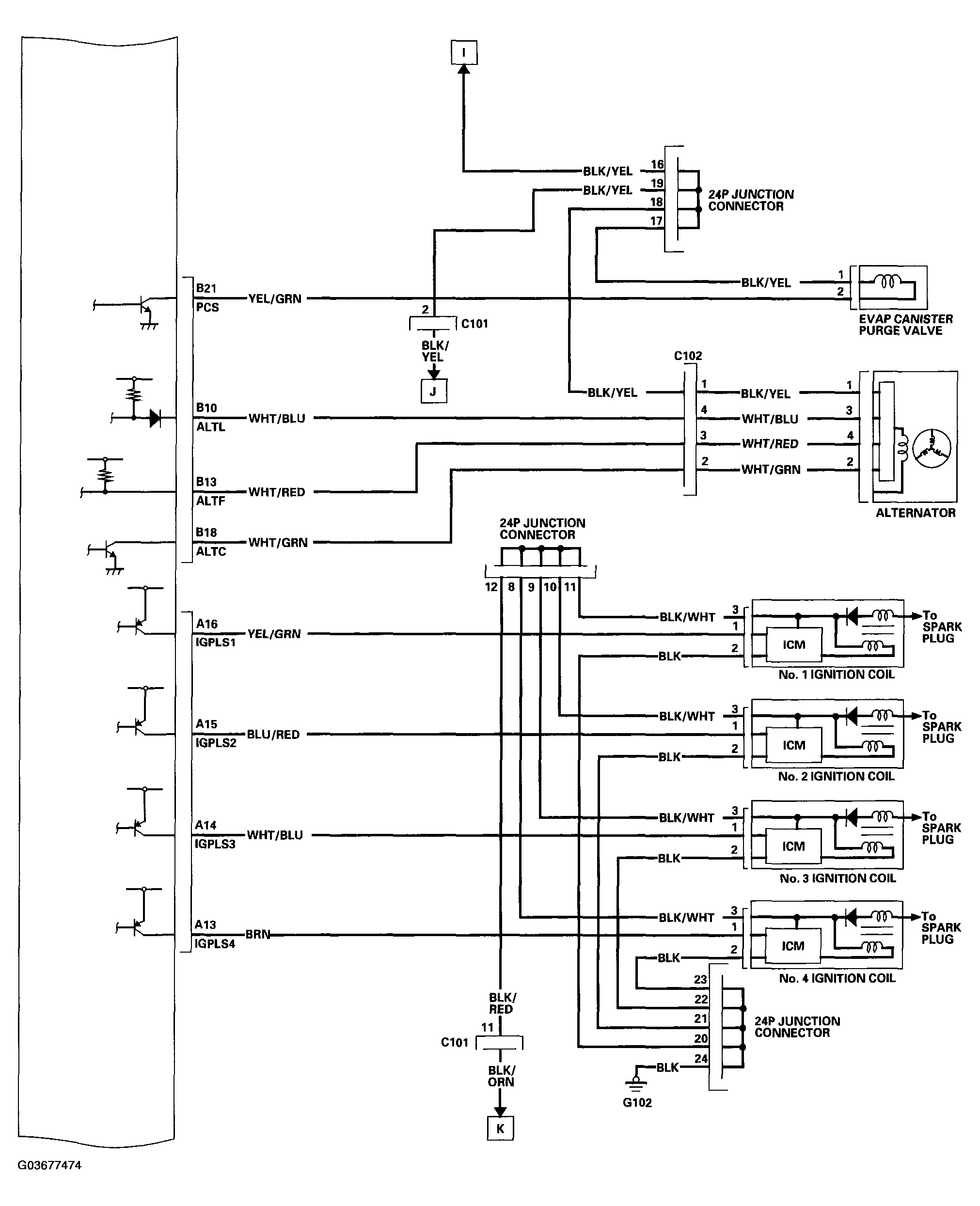

Fig 4: ECM/PCM Circuit Diagram (4 Of 10)

G03677474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

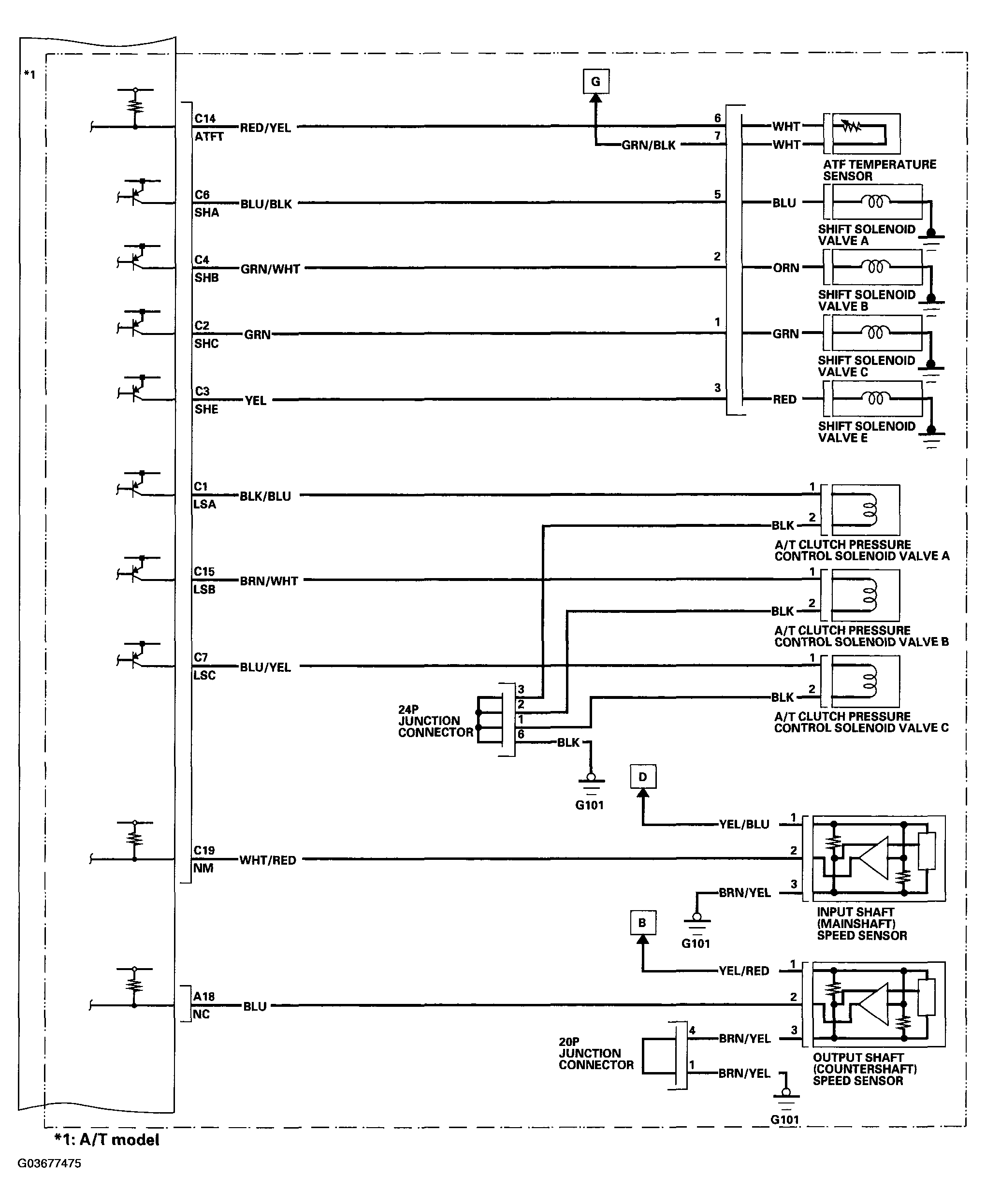

Fig 5: ECM/PCM Circuit Diagram (5 Of 10)

G03677475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

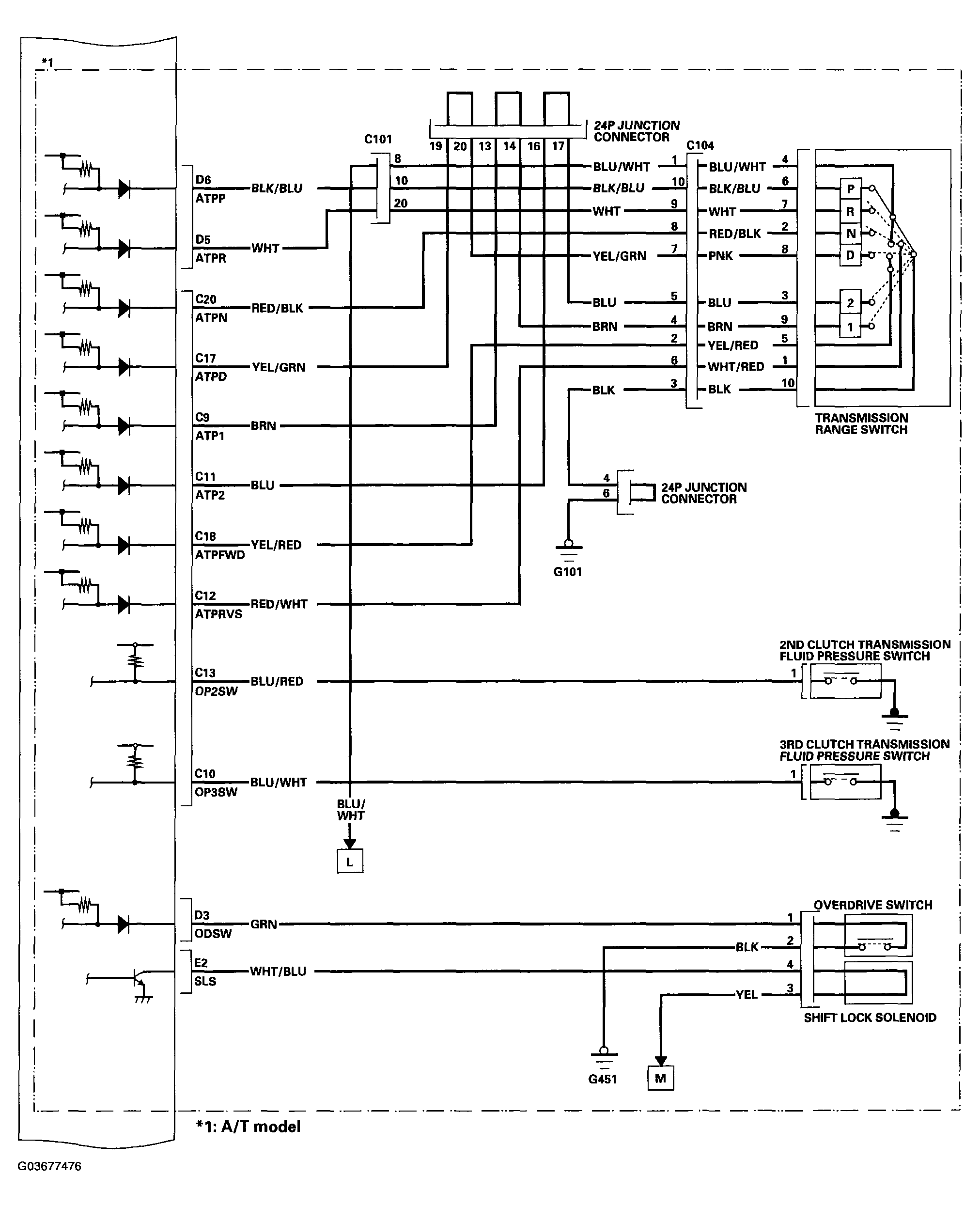

Fig 6: ECM/PCM Circuit Diagram (6 Of 10)

G03677476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

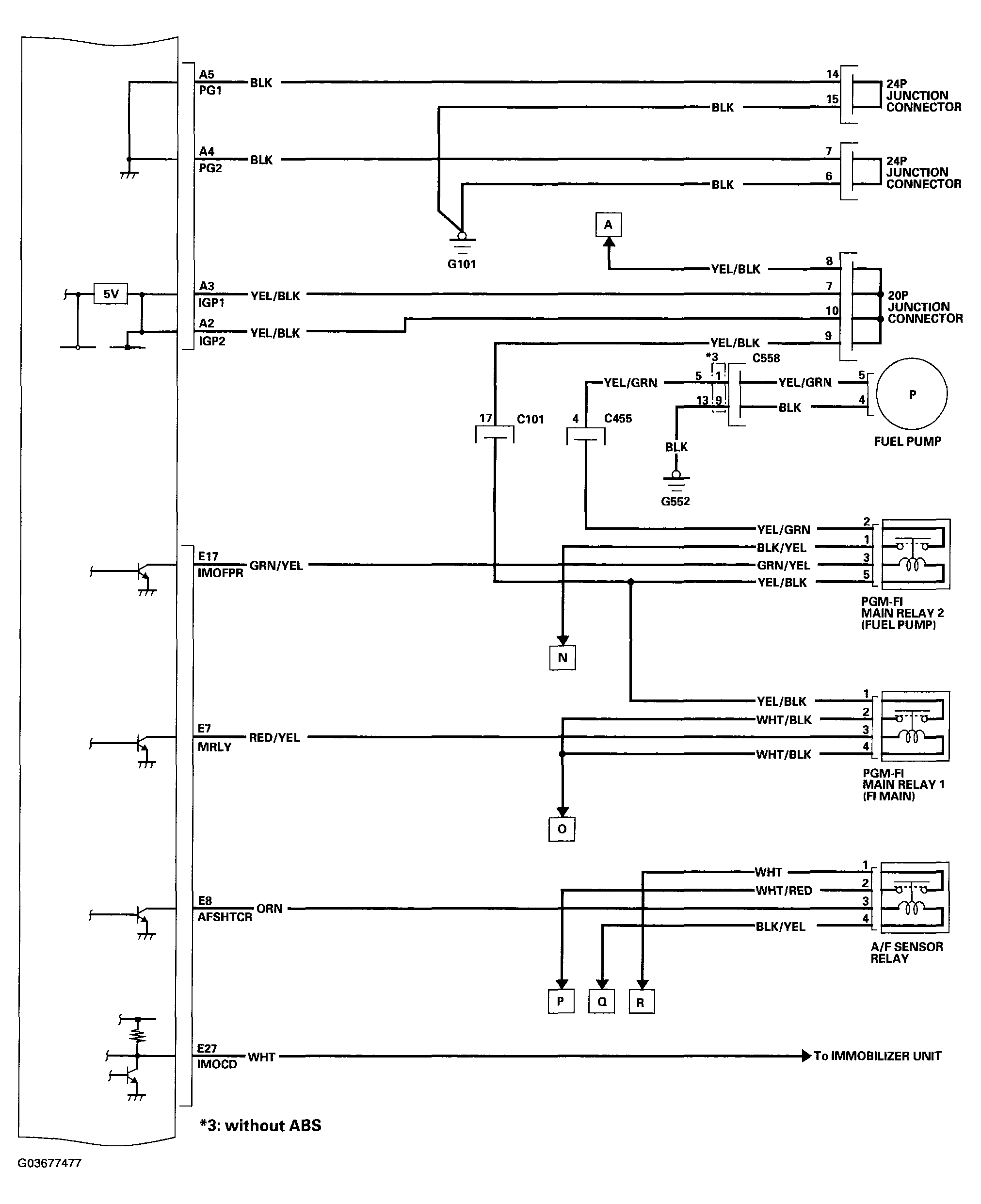

Fig 7: ECM/PCM Circuit Diagram (7 Of 10)

G03677477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

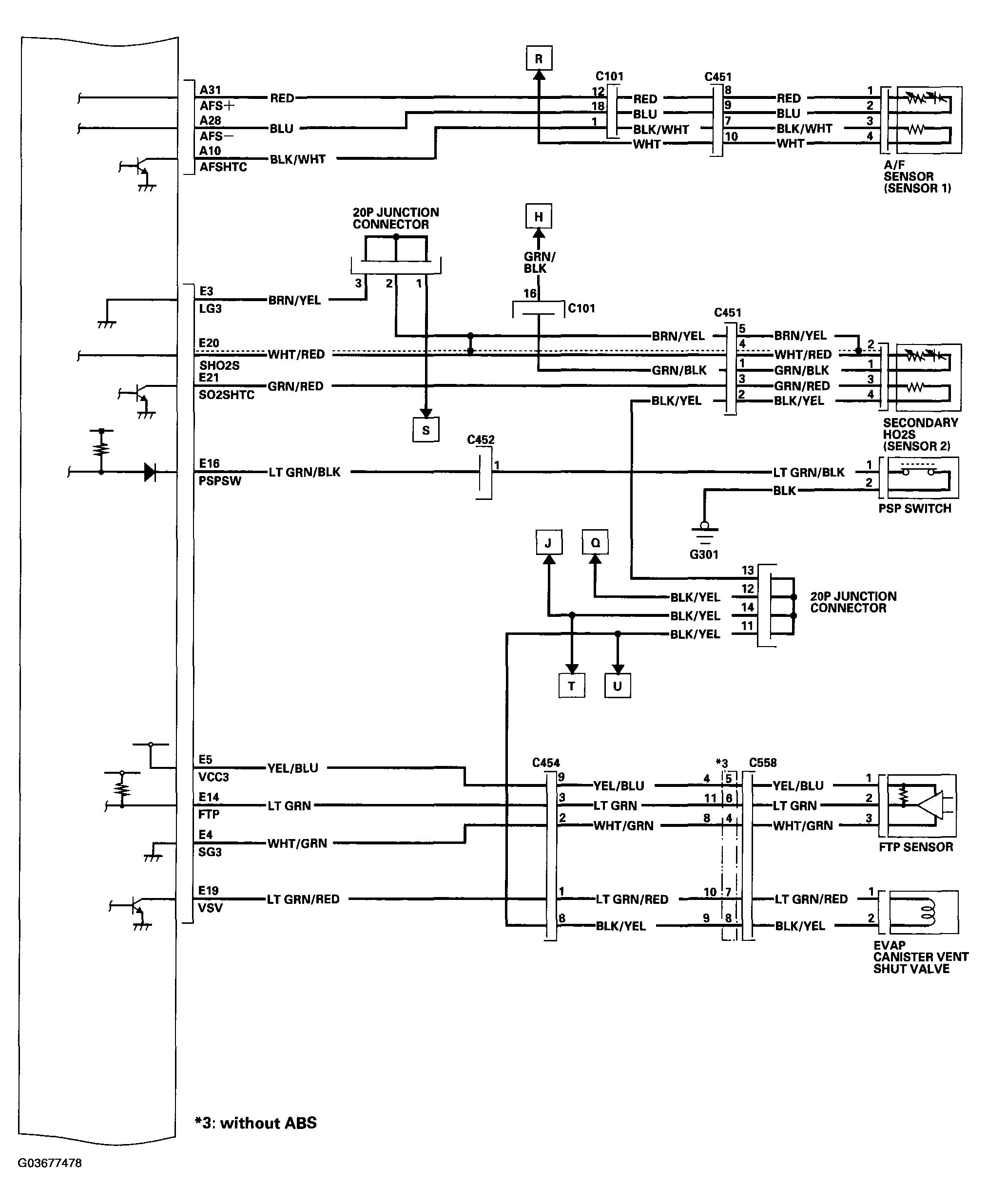

Fig 8: ECM/PCM Circuit Diagram (8 Of 10)

G03677478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

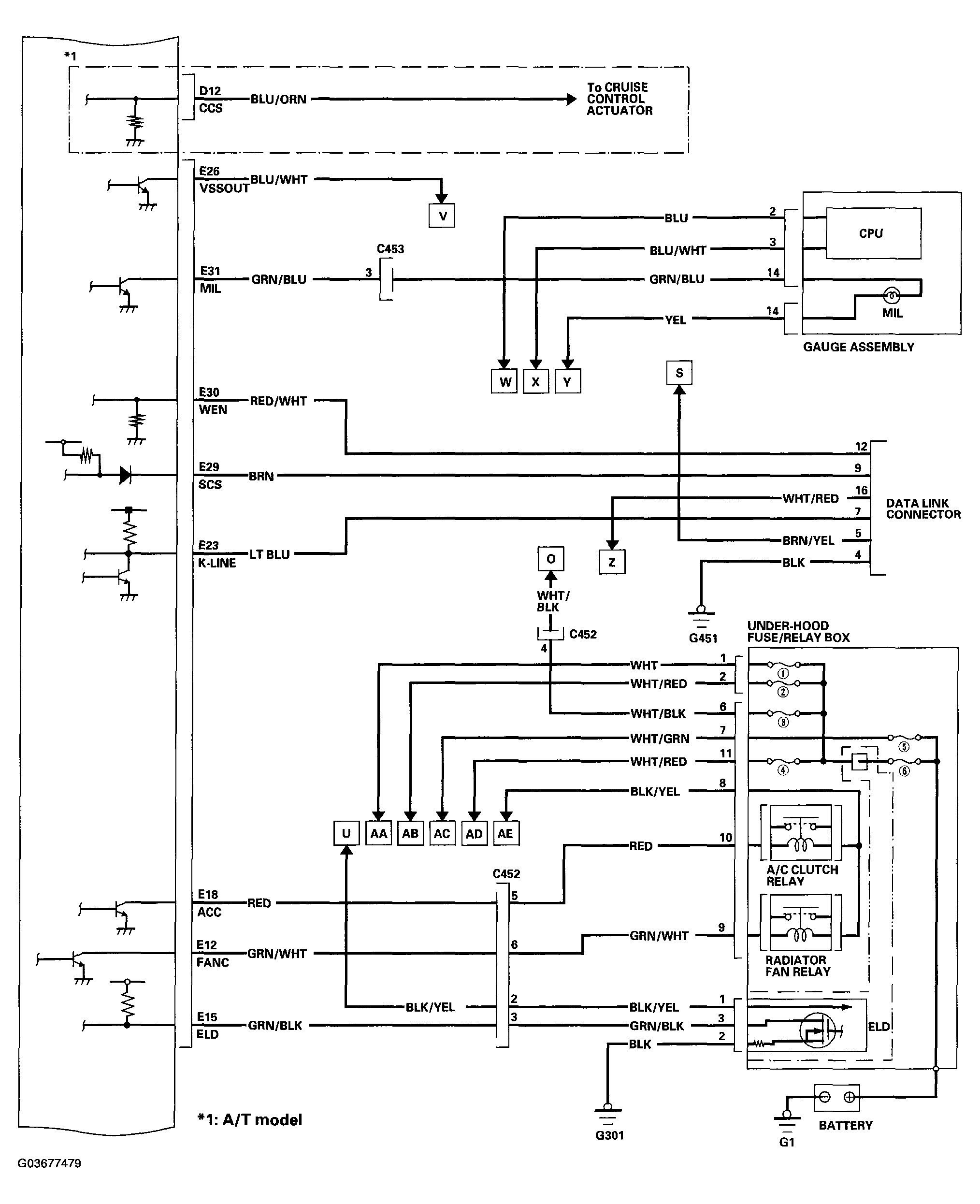

Fig 9: ECM/PCM Circuit Diagram (9 Of 10)

G03677479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

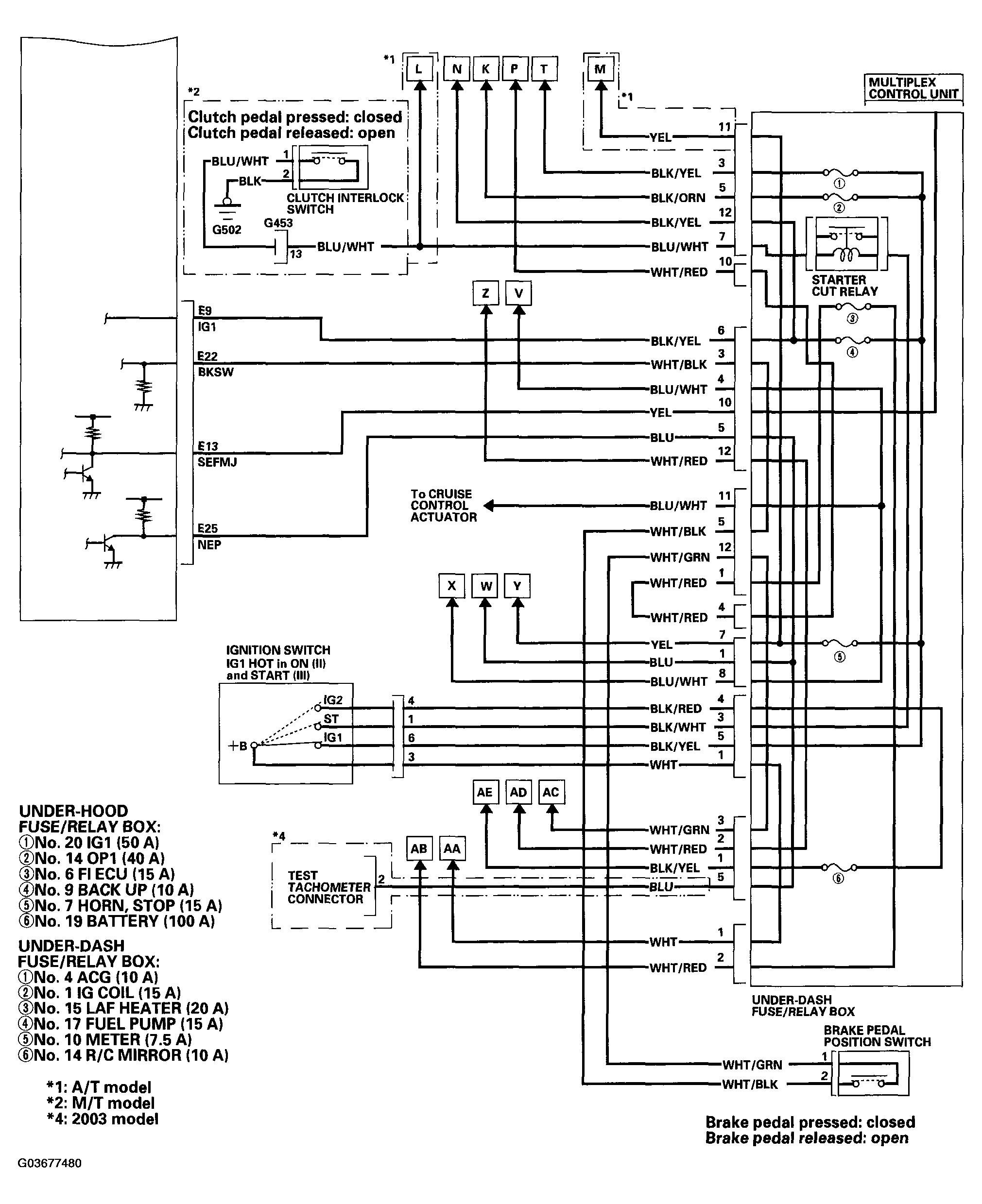

Fig 10: ECM/PCM Circuit Diagram (10 Of 10)

G03677480

Courtesy of AMERICAN HONDA MOTOR CO., INC.
