Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

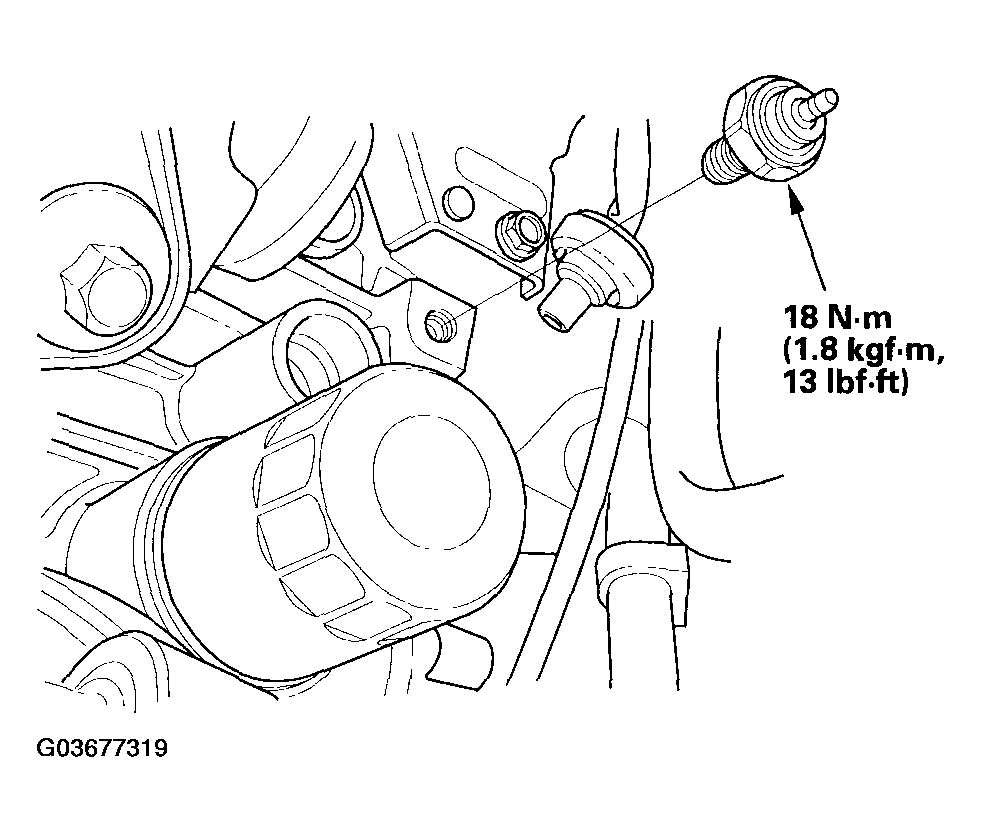

    Fig 1: Removing Oil Pressure Switch And Torque Specifications
    G03677319Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove any old liquid gasket from the switch and switch mounting hole.
  3. Apply liquid gasket to the new oil pressure switch threads, then install the oil pressure switch.
    NOTE: Do not install components if too much time has passed after applying the liquid gasket (for P/N 08718-0002, no more than 4 minutes, for all others, no more than 5 minutes). Instead, remove the old residue and reapply the liquid gasket.
