Immobilizer Control Unit-Receiver Connector End View
Immobilizer Control Unit-Receiver Connector End View

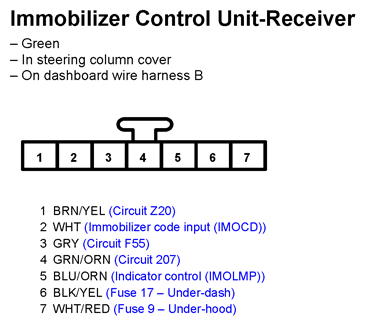

Fig 1: Immobilizer Control Unit-Receiver Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
