Combination Light Switch Connector End View

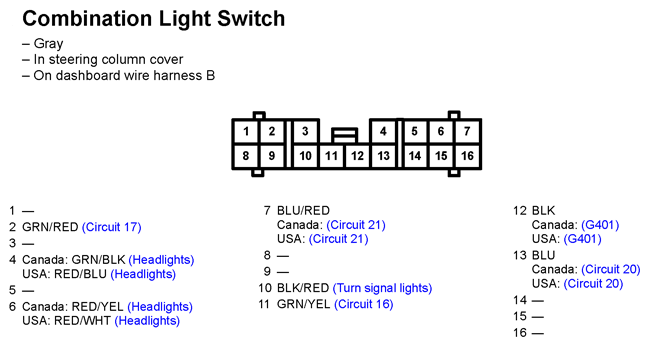

Fig 1: Combination Light Switch Connector End View

G11249998

Courtesy of AMERICAN HONDA MOTOR CO., INC.
