Accessory Power Socket Test/Replacement: Front

  1. Carefully pry the accessory power socket (A) out from the dashboard.

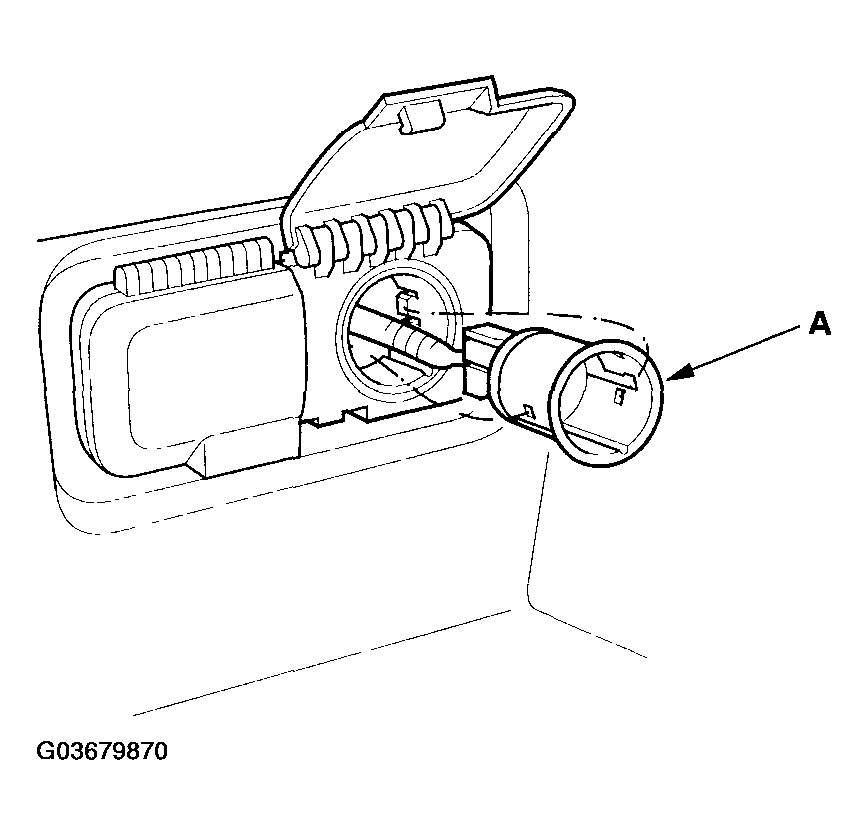

    Fig 1: Prying Accessory Power Socket From Dashboard
    G03679870Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 2P connector (A) from the socket.

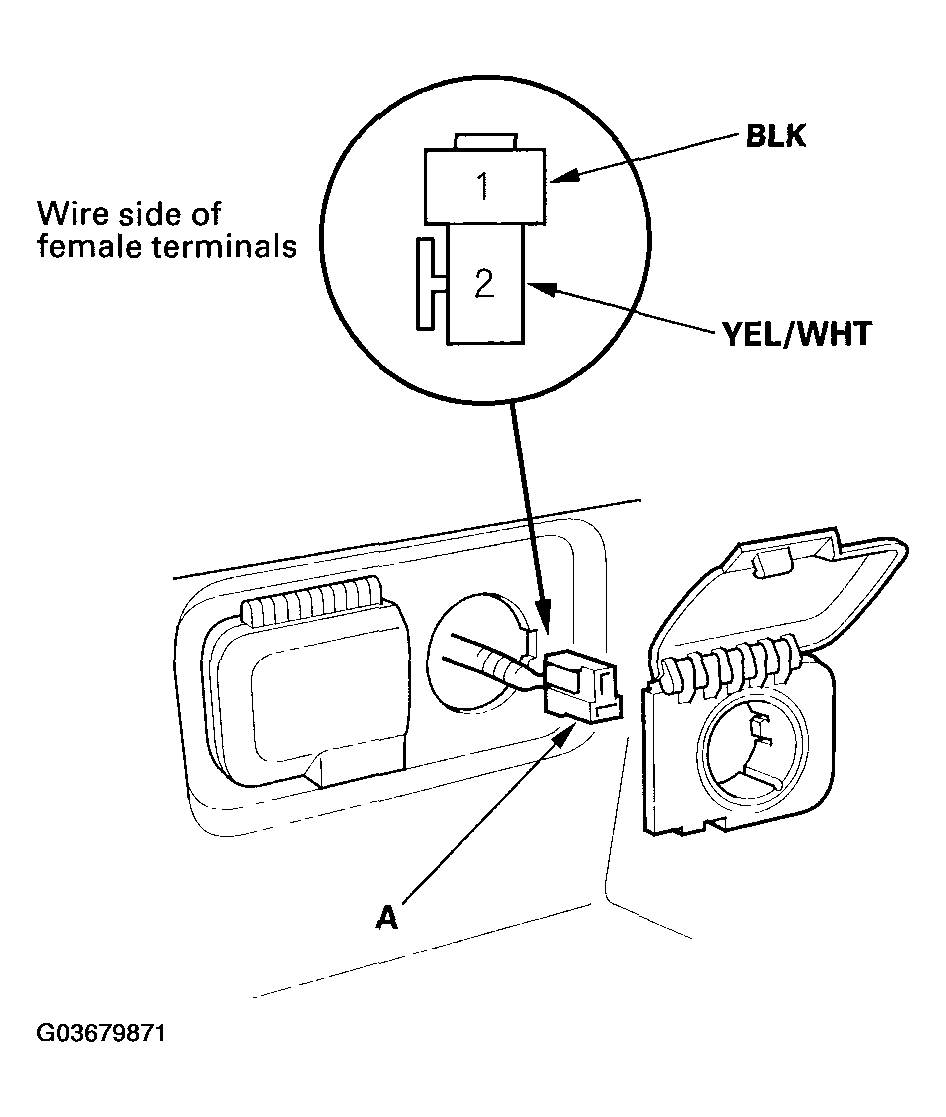

    Fig 2: Disconnecting 2P Connector From Socket
    G03679871Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.
  4. Turn the ignition switch to ACC (I), and check for voltage between the No. 1 and No. 2 terminals.
    • There should be battery voltage.
    • If there is no battery voltage, check for:
      • Poor ground (G502).
      • An open in the wire.
      • Blown No. 18 (15 A) fuse in the under-dash fuse/relay box.
